Cnc Automatic Hydraulic Tube Bender Carbon Steel Pipe And Tube Bending Machine
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
Hoston
Product Description
Cnc Automatic Hydraulic Tube Bender Carbon Steel Tube Pipe Bending Machine
- Equipped with linear guide rails and servo motor drive, with high accuracy:
- The system can store 400 sets of workpiece bending pipe files (expandable);
- Configure sound effects and warning light warning functions:
- Equipped with manual, semi-automatic, and fully automatic bending functions, as well as automatic counting function for pipe fitting work;
| Model |
DW-25CNC-3A
Hydr Bend
|
DW-25CNC-5A
Hydr Bend
|
|
| Max. Tube o.d. Bneding Capacity | 25.4mm | 25.4mm | |
| Max. Tube Wall Thickness | 1.5mm | 1.5mm | |
| CLR Centerline Radius Range | 18-150mm | 18-150mm | |
| Max. Bending Angle | 190° | 190° | |
| Max. Mandrel working Distance | 2000mm | 2000mm | |
| Processing Speed | Tube Feeding Speed | 850mm/sec | 850mm/sec |
| Tube Roration Speed | 360°/sec | 360°/sec | |
| Tube Bending Speed | 120°/sec | 120°/sec | |
| Repeatability | Tube Feeding Precision | ±0.01mm | ±0.01mm |
| Tube Roration Precision | ±0.01° | ±0.01° | |
| Tube Bending Precision | ±0.01° | ±0.01° | |
| Total Motor Power | 9.0kw | 11kw | |
| Overall Weight | 1200kg | 1500kg | |

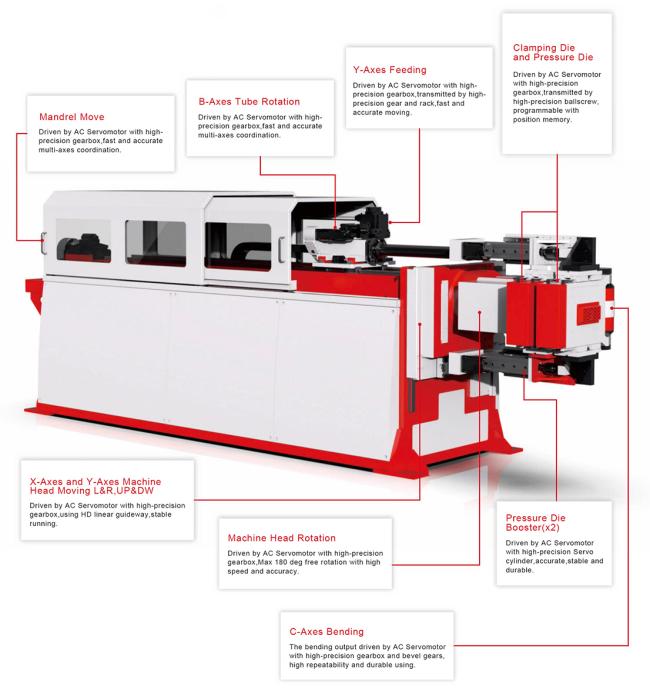

Hybrid CNC Pipe Bending Machine
PLC operation
1.Touch screen display, CNC computer operation, can store 200 group memory；
2.The error message is displayed on the screen to help the operator clear it immediately.
Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.
Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function
