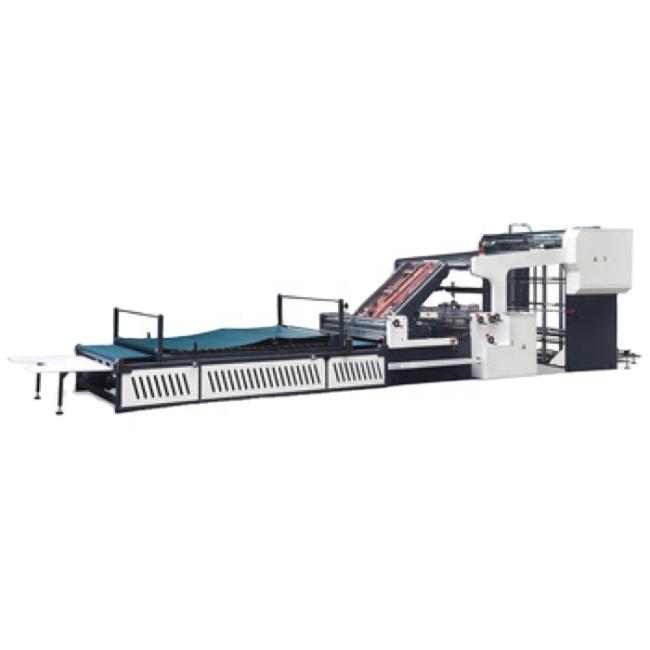

2022 Corrugated Paper Automatic Flute A2 Laminating Machine for Customer Requirements

Main Characteristics:

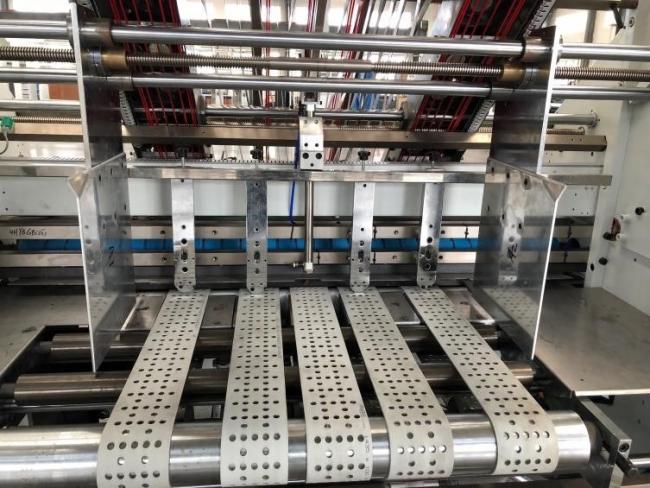

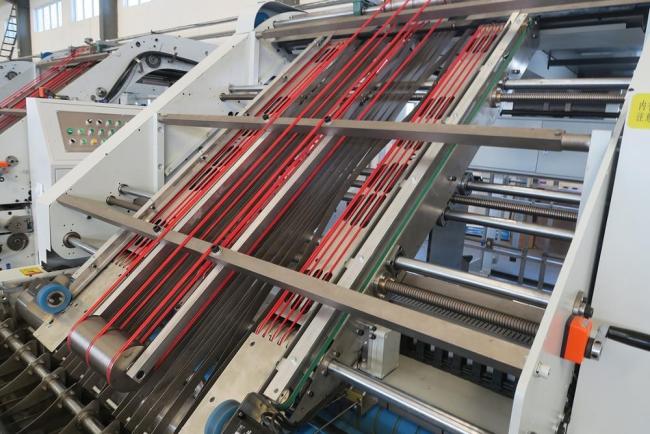

1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a large range of paper, high precision while remaining the features of easy operation and maintenance.

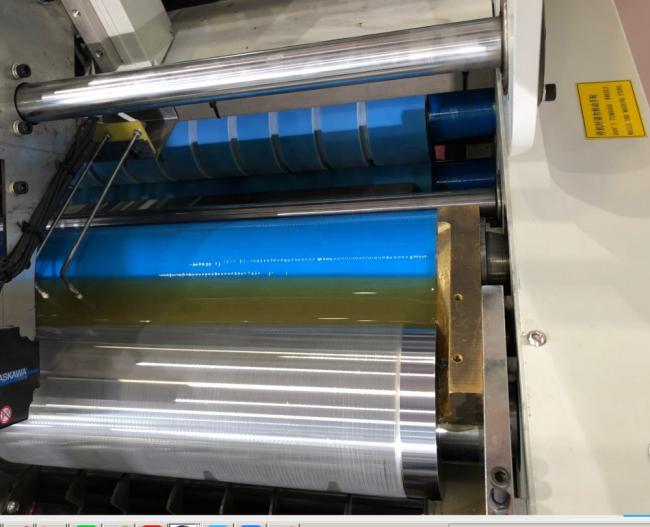

2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3. Balancetested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue circulating system.

5. Self-developed high-strength feeder complicant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6. All material are inspected according to standard and the key parts such as the harmonic gear and bearings are imported ones.
7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet.
8. It can do three or five layer board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

Technical Parameters:

Cangzhou Tongbao Carton Machinery CO., LTD is professional enterprise to invent, develop and produce the carton machinery in North of China. Adhering to scientific and technical innovation from beginning to the end and consistent introducing, consuming and absorbing the advanced technology at home and abroad for 23 years. Our products are well appraised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.
