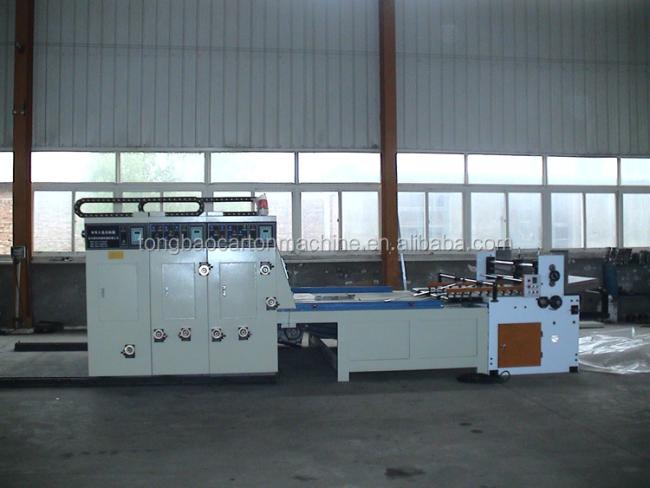

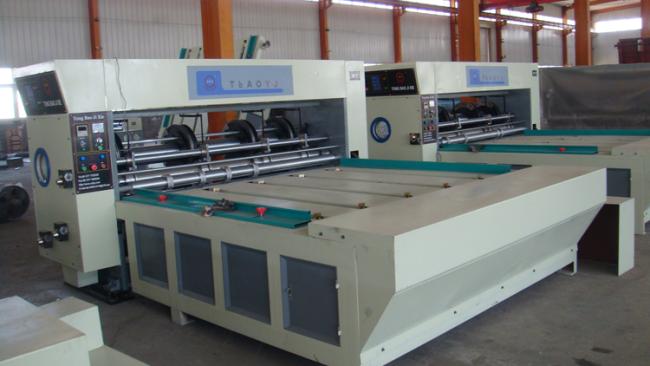

Semi-automatic Rotary Slotting Corrugated Box Machine with Customer Requirements
semi-auto high speed stitcher carton machine
Function nad feature:
1.Adopt the chain paper-feeding way,stepless speed regilation control.
2.Optical control counter,to plan and design the order and the production quantities in advance.
3.Three groups for slotting,one group for angle cutting, two groups for partition paper,four groups for creasing.
4.Mechnical phase regulation,the scale will say it.
5.The height of slotting can add 4-knife linkage regulation.
6.To adjust the axles and rollers.hard chromium plating,polishing treatment.
7.The worktable can regulate the clutch,convenient for checking the size.
| Model | TB480-2200 | TB480-2600 | TB530-2200 | TB530-2600 |
| Wall diameter | 2147mm | 2547mm | 2147mm | 2547mm |
| Max.paper coverage area | 2000*1450mm | 2400*1450mm | 2000*1600mm | 2400*1600mm |
| Finish speed | 0-60pieces/min | 0-60pieces/min | 0-60pieces/min | 0-60pieces/min |
| Power of main motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
Packaging-machines will be packed by filmplastic
Shipping-loaded into container
Main product: 2, 3, 5,7 layer corrugated paperboard production line (Including mill roll stand,pre-heater,single facer,conveyor bridge,gluing machine,double facer,slitter scorer,cut-off,conveyer and stacker, heating system,air compression system and glue making system etc.); automatic/semi-automatic carton box prining,slotting and die-cutting machine;folder gluer machine;stitching machine etc.
