Customizable GYTC8S 2-144 Core Armored Fiber Optic Cable for Underground Direct Burial
Price:
$0.90/kilometers 500-1999 kilometers
MOQ:
500 kilometers
Delivery Time:
Negotiable
Brand:
Fibconet
Product Description
GYTC8S 2~144 core underground direct buried OEM single mode armored fiber optic cable self-sustaining fiber optic cable
Products Description

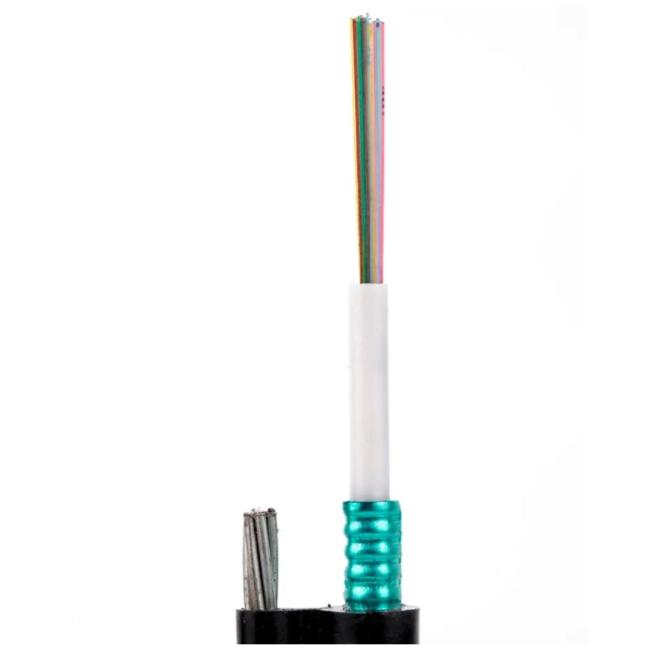

250 μm fibers are placed in a loose tube made of high-modulus plastic filled with a waterproof filler, a steel wire is placed in the center of the core to act as a metal strength member, the tube (and filler) is twisted around the strength member to form a compact round core, and then a steel strip (PSP) is laid around the core to act as a moisture barrier, this part of the cable is finished off with the stranded steel wire as a support part and is sheathed in polyethylene (PE).
Grade A Fiber
Good quality Fiber assure the Stable transmission, anti-interference, Reliable welding and low loss
PBT Material
High-quality loosen tube material, Protect the core and anti-aging
New HDPE/PE Material
Smooth apperance, UV resistant, Long service life of the fiber optic cable
FRP Strength Member
Corrostion resistant, not easy to age, low water absorption
Technical Parameters
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter /pad diameter (mm) | Nominal Thickness of outer jacke(mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5/15.9 ±0.8 | 145 |
6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5/15.9 ±0.8 | 145 |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5/15.9 ±0.8 | 146 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5/15.9 ±0.8 | 146 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6 | 9.0 ±0.5/15.9 ±0.8 | 147 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6 | 9.4 ±5%/16.3 ±5% | 162 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6 | 9.7 ±5%/16.6 ±5% | 161 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6 | 10.4±5%/17.3 ±5% | 184 |
96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6 | 12.0 ±5%/19.2 ±5% | 221 |
Application
