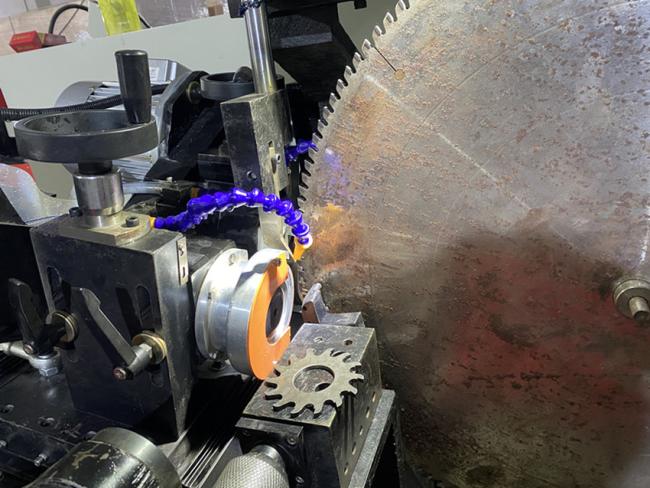

TCT Saw Blade Automatic Grinding Machines Automatic Grinding Machines
LDX-028A TCT saw blade automatic grinding machines TCT saw blade automatic grinding machines
The role of the gear grinding machine:
1,Improve product quality: The use of gear grinding machine can obtain a more fine and flat gear surface, so that the gear is more accurate, thereby improving the accuracy and quality of the product.
2,Improve production efficiency: The gear grinding machine can quickly and efficiently complete the processing and dressing of gears, reducing labor costs and production cycles.
3,Cost saving: The use of gear grinding machines can reduce the waste of materials and the cost of replacement, while saving the use of energy and consumables.
| echnical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |

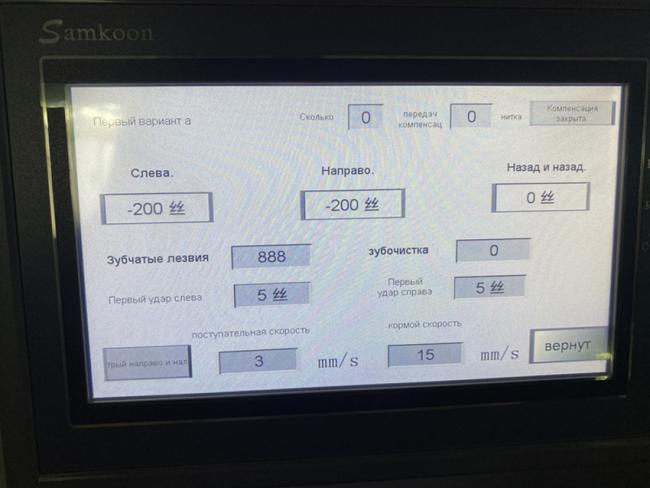

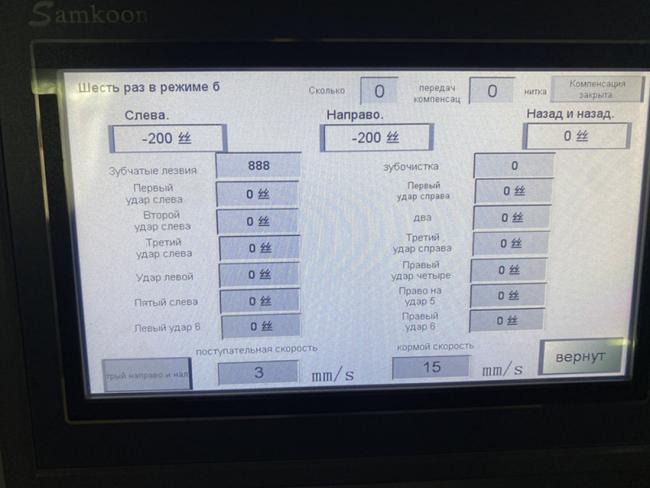

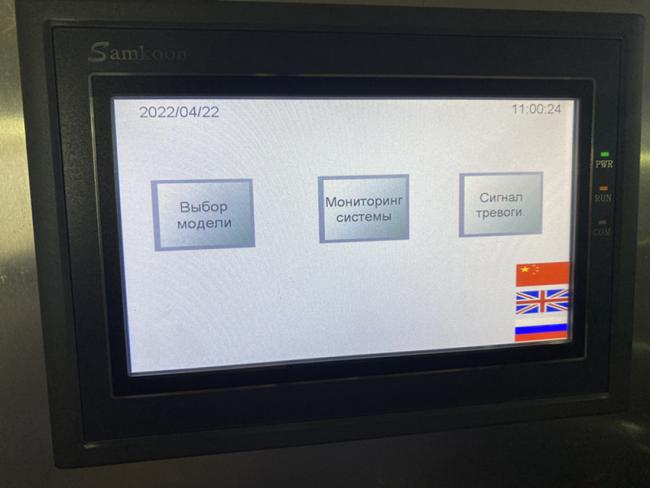

| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
