Cold Dip Galvanized Steel Plate Telescopic Camera Cctv Mast Pole For Solar Surveillance Trailer
Cold Dip Galvanized Steel Plate Telescopic Camera Cctv Mast Pole For Solar Surveillance Trailer
Quickly details:
Compact structure design, convenient transportation and installation.
The base is stable and solid, with excellent stability.
IP65 protection grade, with excellent water and dust resistance.
Made of high-strength material that can withstand greater weight and wind.
Description:

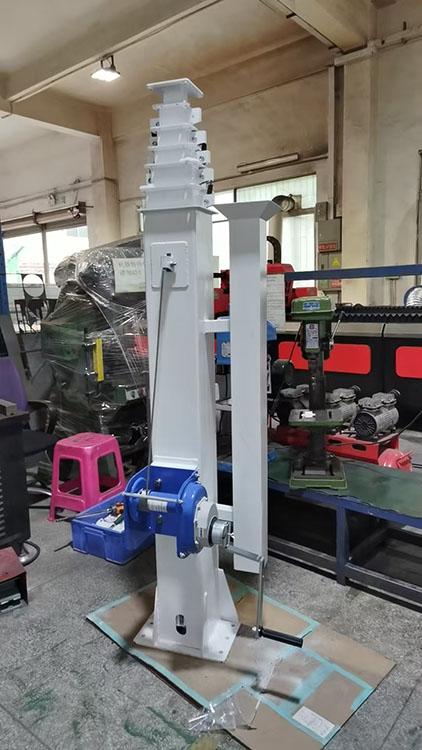

The cold dip galvanized steel plate telescopic camera cctv mast pole is controlled by the internal device driven by the hand handle, while the surface treatment is treated by cold-dipped galvanized steel plate and powder coating, making the mast can adapt to the harsher environment and has excellent corrosion resistance.
Applications:

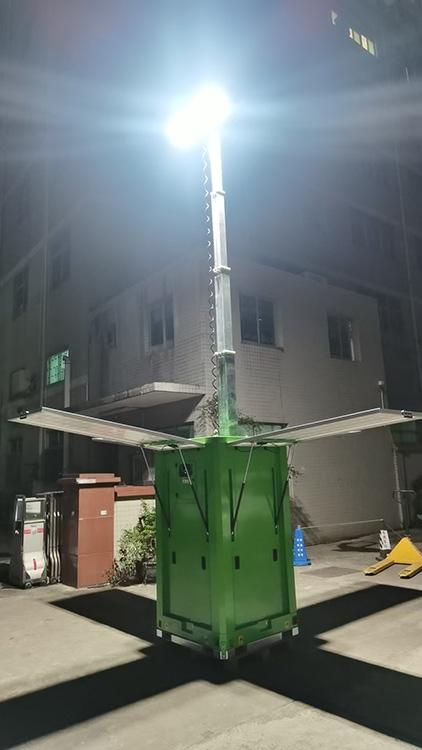

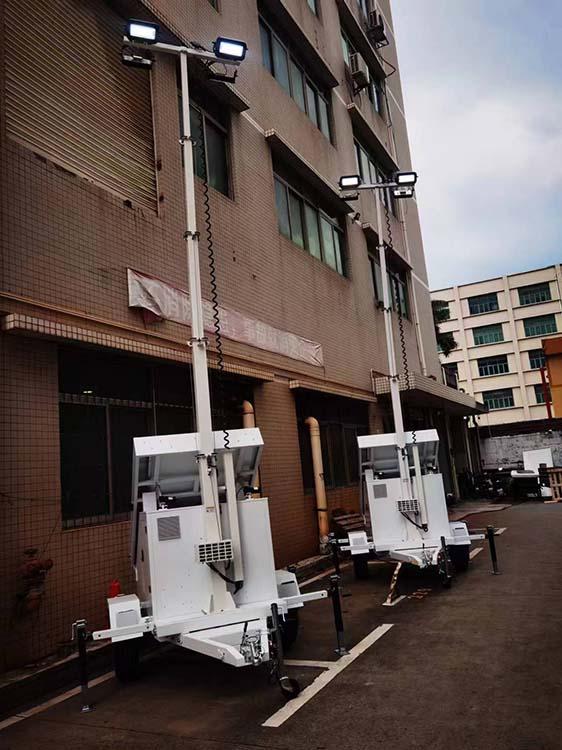

It is suitable for mobile solar lighting trailer, equipped with lighting fixtures, providing sufficient lighting for temporary lighting and emergency rescue.

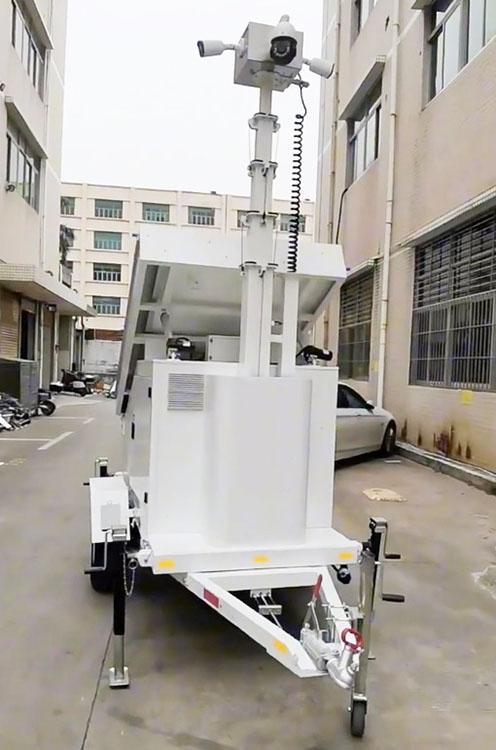

Suitable for mobile monitoring trailers, monitoring cameras can be installed on the top of the mast, and the monitoring range can be controlled by adjusting the height of the mast to expand the monitoring effect.
Specification:
| Item | 6m telescopic mast | 7m telescopic mast | 8m telescopic mast | 9m telescopic mast |
| Lifiting mode | Manual | Manual | Manual | Manual |
| Rise height | 6M | 7M | 8M | 9M |
| Sections | 5 | 5 | 6 | 7 |
| Max. outer diameter | 160*170mm | 160*170mm | 160*170mm | 160*170mm |
| Waterproof | Good | |||
| Min. diameter | 82*75mm | 82*75mm | 75*70mm | 75*70mm |
| Max. bearing capacity | 50kg | 50kg | 50kg | 50kg |
| Manual winch | 2000lbs | |||
| Surface treatment | Cold dip galvanized steel plate and powder coated | |||

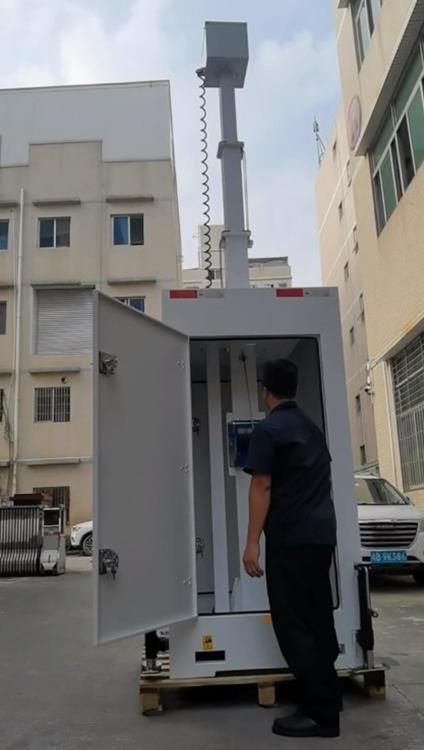

Details:

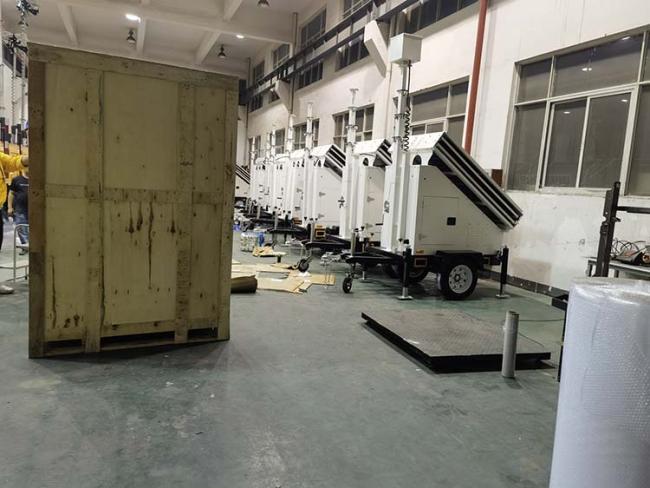

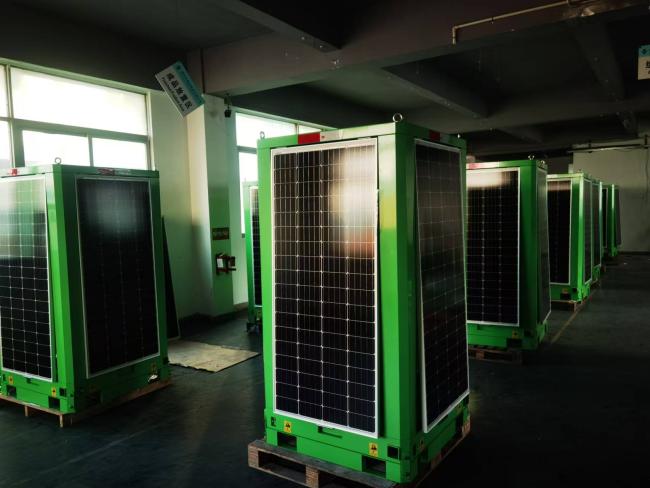

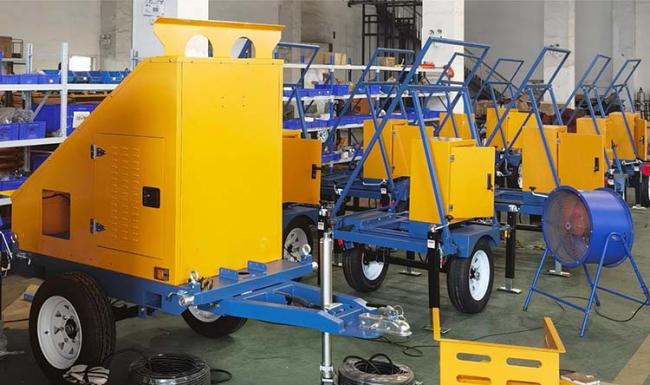

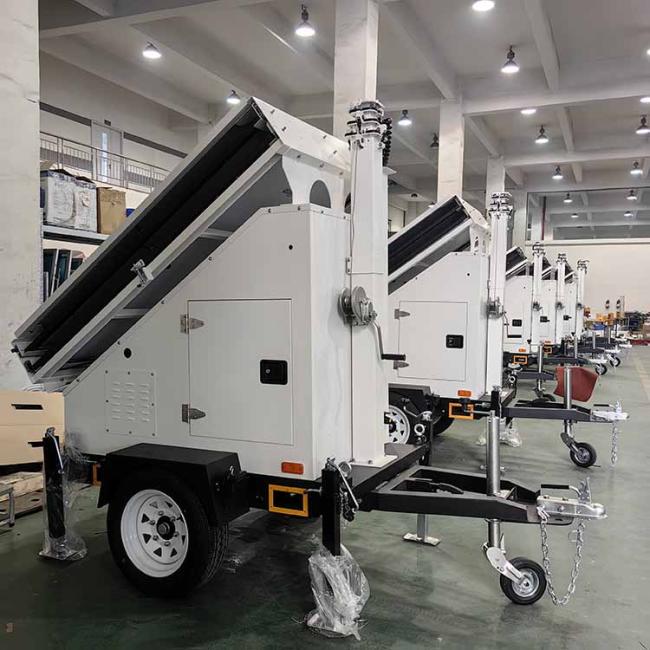

Our Factory:

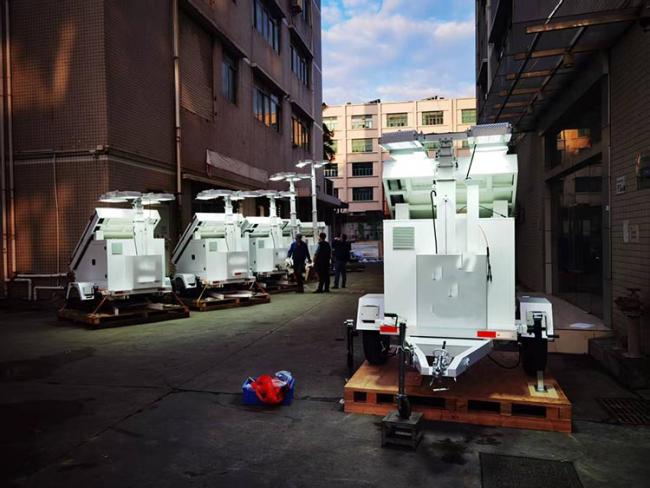

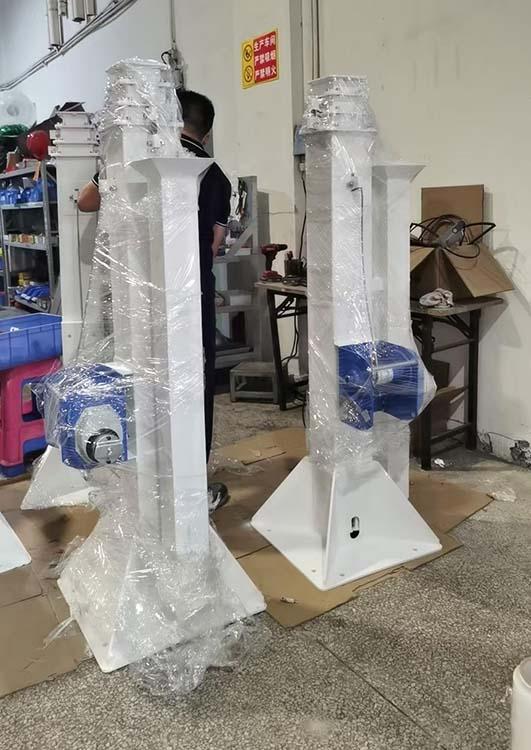

Packing and Shipping:
Exhibitions:
