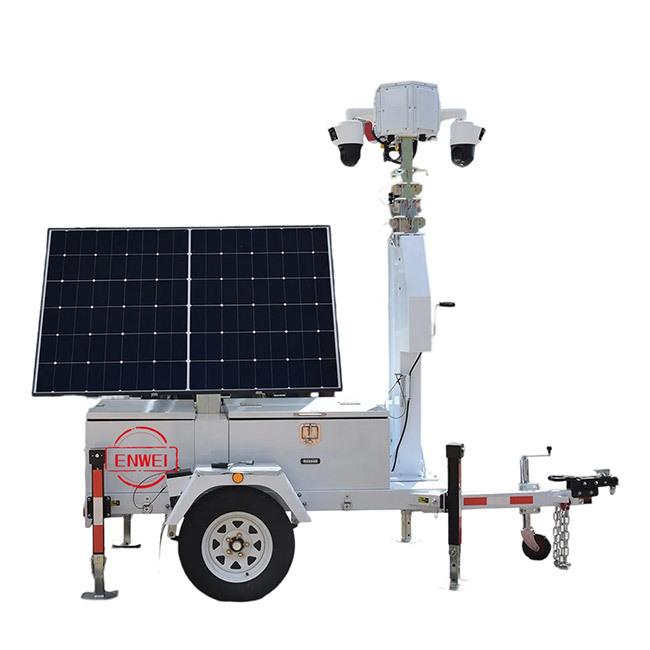

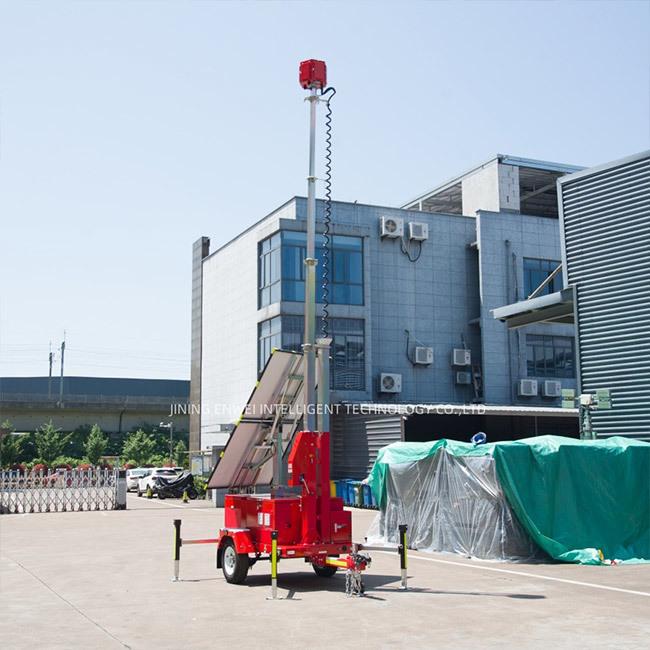

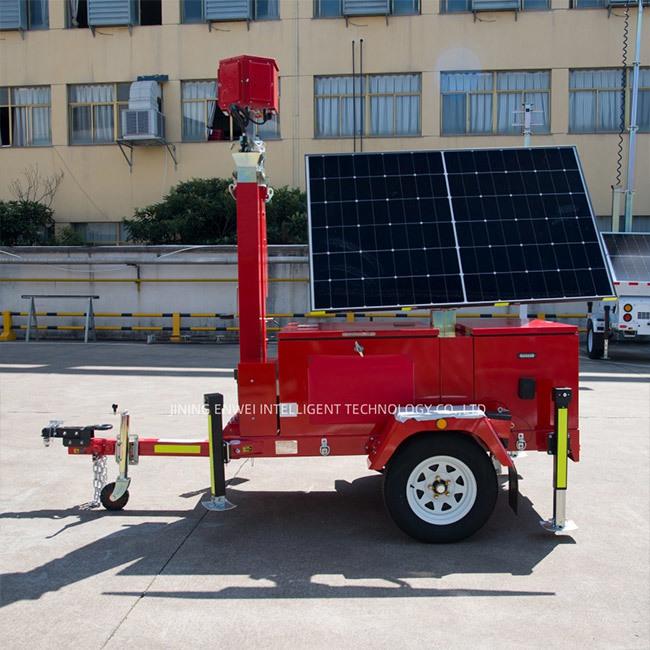

Mobile Solar Powered Surveillance Units CCTV Tower Solar Trailer Security Camera Outdoor Parking Lot

The system integrates high-efficiency photovoltaic power generation, large-capacity energy storage and modular structure design, aiming to provide plug-and-play all-weather security and lighting solutions for various outdoor scenarios.

PV Modules: 2 x 450W high-efficiency solar panels, totaling 900W, ensure sufficient energy harvesting.

Smart Tracking: Equipped with a unique manual angle adjustment mechanism, it supports 180° horizontal rotation and 90° vertical tilt, allowing users to maximize sunlight capture efficiency based on season, location, and sunlight conditions, significantly increasing power generation.

Energy Storage Unit: Four 12V/200Ah Gel batteries form a large-capacity energy storage system (totaling approximately 9.6kWh), ensuring continuous operation for 3-5 days in dark conditions.

Energy Core: A 60A MPPT (maximum power point tracking) solar controller maximizes solar charging efficiency and protects battery life.

Multi-Mode Power Supply: A built-in 1000W pure sine wave inverter provides a stable 220V AC power supply. A 29V/15A AC charger also supports mains charging, providing diverse energy replenishment options.

Application Scenario:

construction sites, outdoors parking lot management, emergency security, outdoor activities, and other scenarios

20GP containers: 4 units

40HQ containers: 8 units
