3600*2400MM CNC Waterjet Glass Cutting Machine with Automatic Sand Supply System
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Product Description

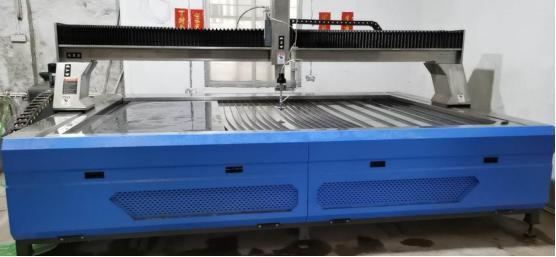

CNC Waterjet Cutting Grinding Machine with Automatic sand supply system
Component
 | Machine body | Using a finishing machine base, Double-layer steel plate structure inside and outside, reinforced bridge, steel plate and bridge fully welded, The thickness of the inner layer of steel is 8mm, and the thickness of the outer layer is 12mm. The strict dust-proof and waterproof design improves the service life of all operating machine parts. |
1set | ||
 | High pressure booster | With pressure detection, limit alarm and automatic protection safety protection functions. Reduce maintenance and repair time, prevent equipment failure, effectively reduce machine maintenance and failure rate, and improve service life |
| 1set | ||
 | CNC operation system | AUTO CAD drawing software is combined with our company's automatic programming software. It can easily and quickly generate the NC program that the CNC control system responds to Has independently developed international advanced waterjet automatic typesetting CAD/CAM software Compatible with many international graphic design software formats, such as ASC, IGS, DXF, DWG, etc. |
1set | ||
 | Automatic sand supply system | The pressure feeding sand supply system uses 0.2MPa compressed air to intermittently push the abrasive in the pressure vessel to the annular sand tank on the workbench through the hose. The sand flow is automatically distributed according to the needs of cutting use, the air consumption is small, the flow rate of the sand flow is slow, the wear is very small, and the failure rate is almost zero |
1set |
Techinical parameter
| Max cutting size | 2000mm*1500mm |
| Model | 2015- 3 Axis |
| Working table size | 3000mm*2500mm |
| Cutting accuracy | ±0.1mm |
| X, Y axis accuracy | ±0.02mm |
| cutting speed | 0.03-4.0m/min(depending on material) |
| Repeatability | 0.025mm |
| Maximum feed speed | 6000mm/min |
| Maximum movement speed | 10000mm/min |
Machine Detail
Company
Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized in
design, manufacture, selling, after sales service and maintenance. Our products include glass straight-line
edger machine, glass straight-line beveling machine, glass drilling machine glass tempering machine etc.
These machines have been widely used in various fields such as construction,furniture, art craft, KTV and
wall decoration, etc. Having worked in this field for more than 20 years, our engineers are qualified with
richexperience and technical skills. Fssida persists in the principle of "surviving on quality and developing
on innovation".
Exhibition
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to South America(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Africa(10.00%),North America(10.00%),Western Europe(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Glass Machine,Glass Furnace,Glass Bending Furnace,Glass Bending And Tempering Furnace,Glass Machines
4. why should you buy from us not from other suppliers?
Our company has a professional R & D team and a strict quality management system. 10 years of export experience. Mature after-sales installation team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Arabic,French,Russian
