Semi-Automatic Control System 50L Micro Brewing Equipment for Capacity Request

Price Negotiable

Price: $15,840.00/sets >=1 sets

MOQ: 1pc

Delivery Time: Negotiable

Brand: GSTA

Product Description

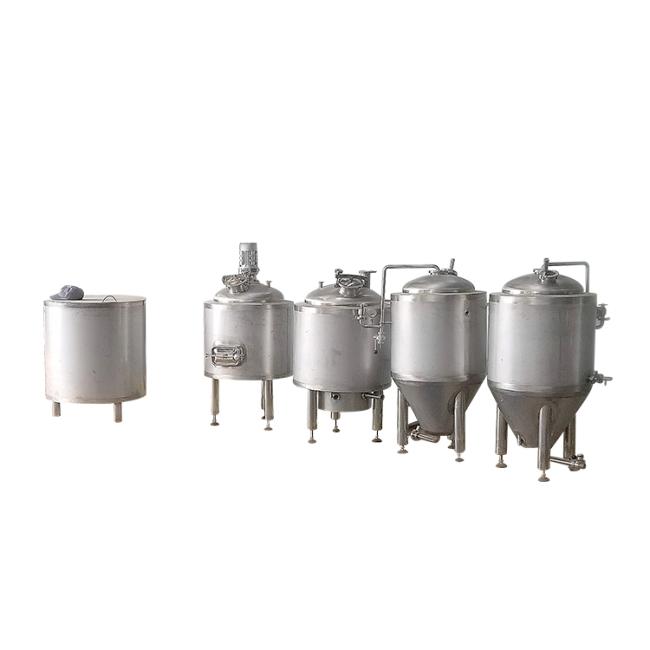

High efficient factory 50l beer micro brewing equipment

beer micro brewing equipment

items	GE-100	GE-200	GE-300	GE-500	GE-1000	GE-2000
Production capacity	100L/day	200L/day	300L/day	500L/day	1000L/day	2000L/day
floor space	15m2	25m2	35m2	50m2	80m2	120m2
Total power	12kw	12kw	12kw	15/36kw	22/72kw	31/144kw
Maximum hourly water consumption	0.2m3/h	0.4m3/h	0.5m3/h	1.0m3/h	1.5m3/h	2.0m3/h
Total water used	0.5m3/d	1.m3/d	1.5m3/d	2.5m3/d	5m3/d	10m3/d
Consumption of malt	20kg	40kg	60kg	100kg	200kg	400kg
Consumption of hops	60g	120g	180g	300g	600g	1.2kg
Yeast	100g/1L	200g/2L	300g/3L	500g/5L	1kg/10L	2kg/20L
Maximum steam	0.009t/hour	0.017t/hour	0.017t/hour	0.05t/hour	0.10t/hour	0.20t/hour

	GE-100
Production capacity	100L
specification	specification	Production capacity	Quantity
malt miller	double rollers type	120kg/h	1
brewhouse	two vessels type	100liter	2
wort pump	stainless steel 304	1t/hr	1
heat exchanger	stainless steel 304	2m2	1
fermenter	PU insulated, conical unit tank, stainless steel 304	200liter	4
glycol water tank	PU insulated, stainless steel 304	500liter	1
refrigerator unit	temperature controlled automatically	1HP	1
ice water pump	high efficient	lift 35m	1
CIP cleaning	stainless steel 304	65liter	2
cleaning pump	moveable, corrosion resistant type		1
controlling system	controlling the whole system, semi-automatic, switch to manual		1
parts			1
