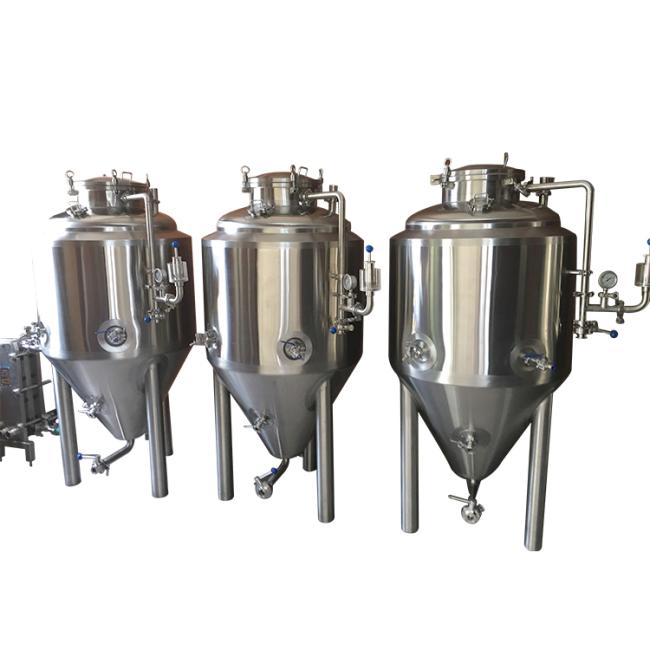

300lt Microbrewery Equipment Stainless Steel Fermentation Tank for Beer and Kombucha
300lt Microbrewery equipment for sale beer united fermentation tank
| Function | Fermentation room |
| Capacity | Total volume:366L, working volume: 300L |
| Material | all material is SUS stainless steel 304 sheet |
| Jacket | Spiral like in drawing |
| Heat insulator | PU, thickness is 80mm |
| Thickness | Inner thickness: 2.5mm, outer thickness: 2.0mm |
| Workmanship | weld by double faces, polish into plate. Surface acid passivation treated. |
| Parts | Manhole(top type), pressure gauge, thermometer, sample valve, cleaning ball & cleaning piping, water seal, breathe valve, drain valve, beer outlet, etc. |
| Size | 860*860*1750mm |
| Item | Inner surface | Jacket |
| Material | SUS stainless steel 304 | |
| Medium | Beer | Refrigerant |
| Design pressure MPa | 0.2 | 0.3 |
| Working pressure MPa | 0.15 | 0.25 |
| Design temperature ℃ | <90 | 100 |
| Working temperature ℃ | <80 | <100 |
OTHER RECOMMEND:
GSTA 50L brewhouse system craft brewing plant microbrewery equipment
| No. | Name | Spec |
| 1 | Miller |
1.5kw, 1400r/min,220v50hz 56*31*33.5cm |
| 2 | Mash tun | Gross volume is 70L. Working capacity is 50L. Fully stainless steel 304. Polyurethane insulated, 3kw electricity heater, cleaning ball on the top. False bottom can be take out Other name: brew kettle, kettle |
| 3 | Wort pump | Food grade beverage pump, 1t/hr. It used to supply power to wort transfer. Work with frequency changer. |
| 4 | Fermentor | Gross volume is 65L. Working capacity is 50L. Fully stainless steel 304, polyurethane insulated, cleaning ball on the top. Cooling jacket, beer outlet. Sight glass used to survey inside with opening spanner. Temperature and pressure can be controlled automatically. |
| 5 | Cold water tank | Gross volume is 125L. Working capacity is 100L. Food grade stainless steel |
| 6 | Refrigerator | 130w, cooling medium is R22 |
| 7 | Controlling system | Control temperature and pressure of fermenter automatically. Good cable. |
| 8 | Support | Size is 1.8m*0.8m, with universal wheels |
| 9 | Power consume | 4kw |
| 10 | Water consume | About 100L/batch |
| 11 | Time consume ofmashing | 3 hours for mash, fermenting time depends on beer |
| 12 | Size | 1.8m*0.8m*1.8m |
microbrewery equipment for sale beer equipment
