Revolutionize Your Water Management System with 8mm-20mm Dimple Mat Drainage Board
Price:
$1.00 - $5.00/square meters
MOQ:
1000 square meters
Delivery Time:
Negotiable
Brand:
hongyuan
Product Description
Packaging & Shipping
Company Information
Plastic dimple waterproof drainage board
Dimple waterproof drainage board
plasic drainage board
1. Dimple height : 8mm 12mm 16mm and 20mm ;
2. Good drainage and waterproofing ;
3. ISO9001, GB certifacate;
Drainage board Specifications
Plastic drainage board is a dimple geomembrane,
which produced by extruding plastic sheet into dimple shape.
These dimples, in spatial structure with certain height ,
can resist long-term high pressure without deformation.
Drainage board Typical application:

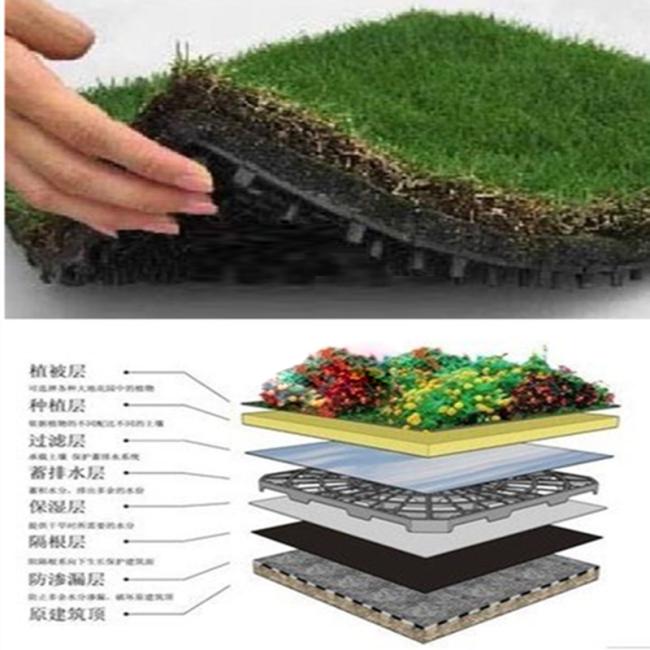

Landscape engineering:
garage top greening,roof garden,football field,golf course,beach project.
Municipal engineering:
road base,subway,tunnel,landfill.

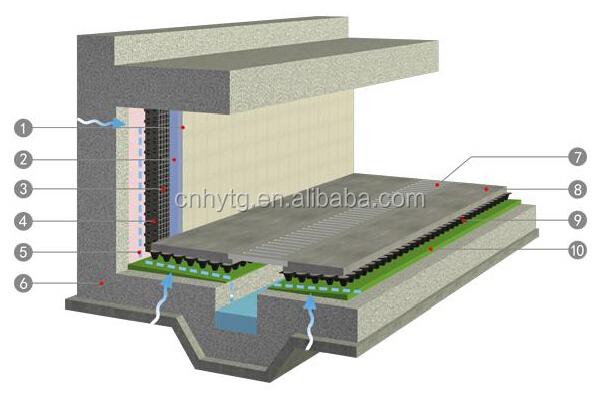

Construction engineering :
upper or bottom layer of building foundation,basement wall,
bedding filtration and heat insulation.
Traffic engineering:
highway,railway basement,dam and slope.
Technical Specifications:
| Property | Test Method | Unit | Minimum Average Roll Value (M.A.R.V.) |
| Weight (typical) | ASTM D5261 | oz/yd2 (g/m2 | 5.6 (190) |
| Grab Tensile | ASTM D4632 | lbs (kN) | 370 x 250 (1.65 x 1.11) |
| Grab Elongation | ASTM D4632 | % | 16 x 15 |
| Trapezoid Tear Strength | ASTM D4533 | lbs (kN) | 100 x 60 (.444 x .267) |
| Puncture Resistance | ASTM D4833 | lbs (kN) | 120 (.53) |
| Permattivity* | ASTM D4491 | sec-1 | .28 |
| Water Flow* | ASTM D4491 | gpm/ft2 (l/min/m) | 18 (733) |
| A.O.S* | ASTM D4751 | oz/yd2 (g/m2 | 70 (.212) |
| UV Resistance | ASTM D4355 | %/hrs | 90/500 |
