China Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller for sale

Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller

Name: Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
Brand: Tai`an Hongyuan Geosynthetics Co., Ltd.

Price Negotiable

Price: $2.34/square meters 1000-9999 square meters

MOQ: 1000 square meters

Delivery Time: Negotiable

Brand: TAIAN HONGYUAN

Product Description

Products Description

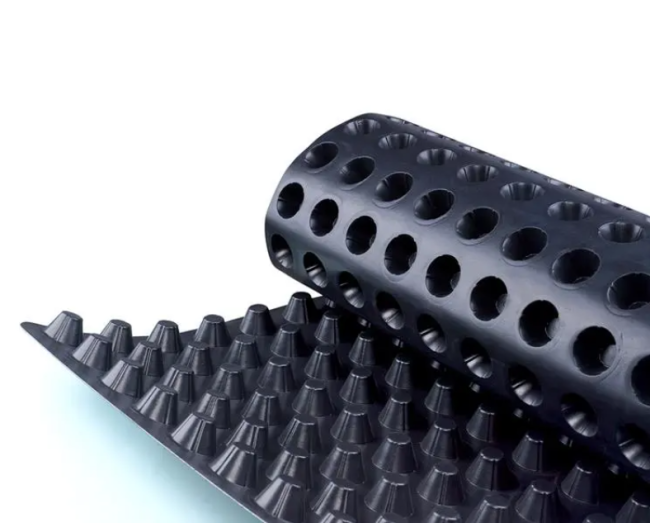

Drainage Board

HDPE drainage board, also known as cavity drain board, drainage membrane, dimple board for drainage, is widely used in many civil
projects, with good performance of waterproofing on the surface of roofs, basement and retaining walls.

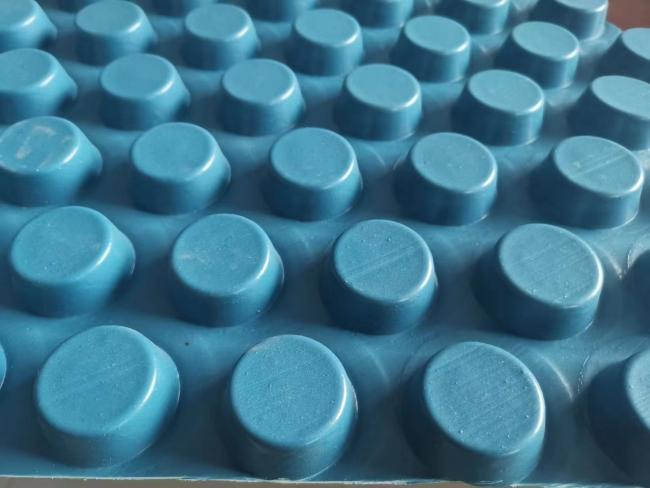

Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the
surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas
can go through freely between dimples.

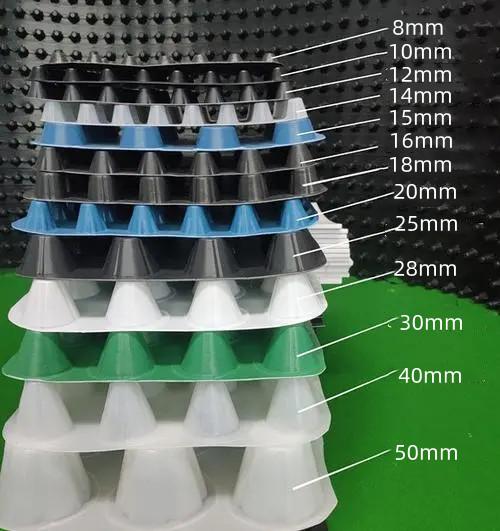

The dimple drainage board can be thickness in 08 mm, 10 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm and 60 mm.

Product Paramenters

Item		Item	Index
Tension at 10% Elongation (N/100mm) ≥		Tension at 10% Elongation (N/100mm) ≥	350
Max.Tension (N/100mm) ≥		Max.Tension (N/100mm) ≥	600
Elongation at Break (％) ≥		Elongation at Break (％) ≥	25
Tearing Strength (N) ≥		Tearing Strength (N) ≥	100
Compression	Maximum Strength at Compression Rate of 20％≥	150
Compression		Performance After Full Compression	No Cracks
Flexibility at Low Temperature			- 10℃ No Cracks
Heat Aging (80℃，168h)	Tension Retention at 10% Elongation	80
		Max.Tension Retention(％)	90
		Retention Rate of Elongation at Break (％) ≥	70
		Max.Strength Retention Rate at Compression Rate of 20%,≥	90
		Performance After Full Compression	No Cracks
		Flexibility at Low Temperature	No Cracks
Longitudinal Flow Capacity (Lateral Pressure 150 KPa)			10

Product features

Main Features

(1)Waterproofing and drainage : from a channel,which water and gas can go through;
(2)Sound insulation and vibration isolation;
(3)Chemincal resistance,resist to plants' root;
(4)Easy to construction;
(5)Long life time.

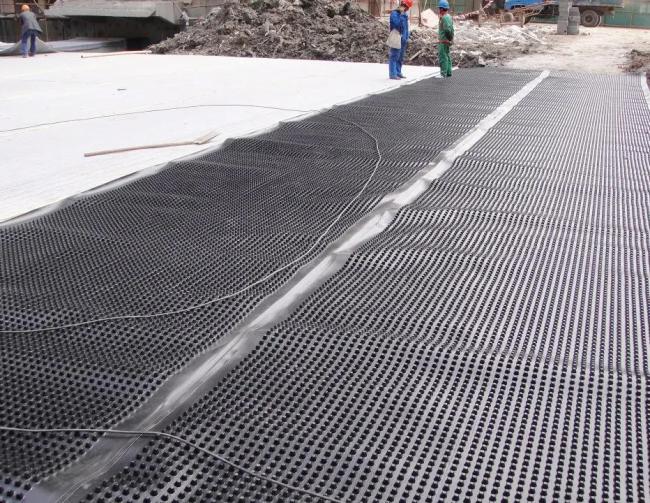

Application Scenarios

Application

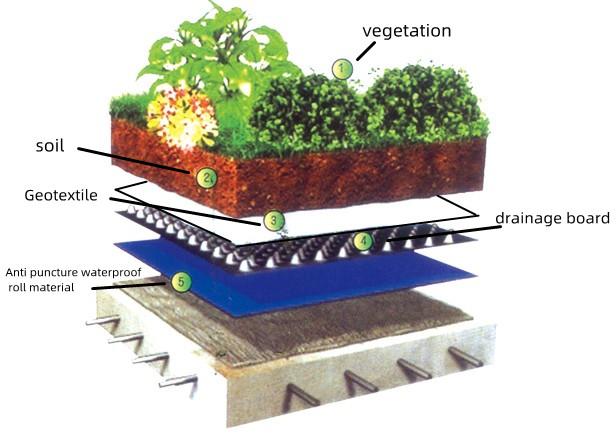

1. Greening Project
The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
2. Municipal Engineering

Airport, road embankment, subway, tunnel, landfill, etc

3. Construction
The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc
4. Water Conservancy Project
The reservoir seepage water, reservoir, lake water seepage control, etc
5. Traffic Engineering
Highway, railway basement, roadbed, dam and slope protection layer, etc

FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
