Waterproof TPO Film Material for Building Membrane in Hotel Construction Industry
Price:
$5.96/square meters 1000-9999 square meters
MOQ:
1000 square meters
Delivery Time:
Negotiable
Brand:
TAIAN HONGYUAN
Product Description
Products Description

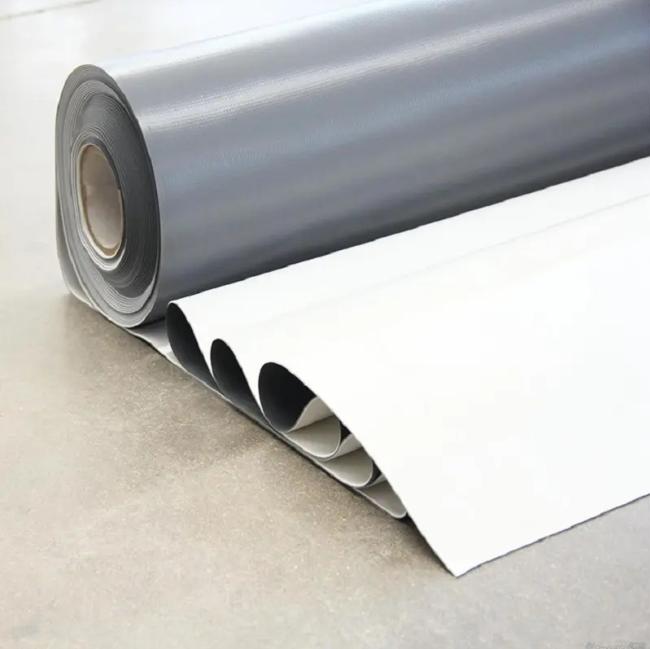

(TPO) - self-adhesive membrane waterproofing membrane
(TPO) -TBL self-adhesive membrane waterproofing membrane is composed of thermoplastic elastomer sheets (TPO), polymer self-adhesive adhesives (hot melt adhesive or butyl adhesive), and isolation membranes. The membrane has excellent properties such as high tensile strength, aging resistance, low-temperature flexible automatic healing, weldability, and root puncture resistance. It can be firmly bonded to concrete structures using wet and dry laying processes, and is a high-end waterproofing system.
Product specifications
Thickness: 1.2mm 1.5mm 1.8mm Width: 1-2M Length: ≥ 20M
Specification
NO. | Project | Indicator (H) | ||
1 | TENSILE PROPERTY | Tensile strength/MPa ≥ | 12.0 | |
Fracture elongation rate/% ≥ | 500 | |||
2 | Heat treatment size change rate/% ≤ | 2.0 | ||
3 | Low temperature bending | No cracks at -40 ℃ | ||
4 | Impermeability | 0.3MPa, impermeable for 2 hours | ||
5 | impact resistance | 0.5kg · m, impermeable | ||
6 | Joint peeling strength/(N/mm) ≥ | 4.0 or damaged coil material | ||
7 | Right angle tear strength/(N/mm) ≥ | 60 | ||
8 | Water absorption rate (70 ℃ 168h)/% ≤ | 4.0 | ||
9 | Thermal aging (115 ℃) | Time/h | 627 | |
appearance | No bubbles, cracks, delamination, bonding, and pores | |||
Tensile strength retention rate/% ≥ | 90 | |||
Breaking elongation retention rate/% ≥ | 90 | |||
Low temperature bending | No cracks at -40 ℃ | |||
10 | chemical resistance | appearance | No bubbles, cracks, delamination, bonding, and pores | |
Tensile strength retention rate/% ≥ | 90 | |||
Breaking elongation retention rate/% ≥ | 90 | |||
Low temperature bending | No cracks at -40 ℃ | |||
11 | Artificial climate accelerated aging | Time/h | 1500h | |
appearance | No bubbles, cracks, delamination, bonding, and pores | |||
Tensile strength retention rate/% ≥ | 90 | |||
Breaking elongation retention rate/% ≥ | 90 | |||
Low temperature bending | No cracks at -40 ℃ | |||
Product features
TPO Product Features
1. Good flexibility: Soft to the touch, with good adhesion between the coil material and the surface of the base layer and at the corners. 2. Long service life: The sheet does not add any plasticizer, maintaining long-term weather resistance and not aging. 3. Good resistance to high and low temperatures: It can be used for a long time in an environment between -40 ℃ and 120 ℃ without any changes. 4. Weldability: The lap joint can be directly welded using a hot air welding machine at a temperature between 400 ℃ and 550 ℃, with strong operability. 5. Good self-adhesiveness: The polymer self-adhesive film has good initial adhesion and strong cohesion, and is firmly bonded after reacting with concrete.

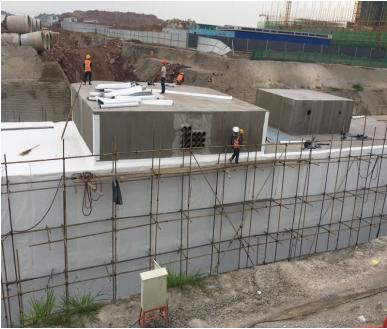

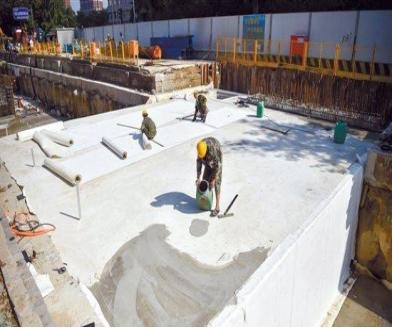

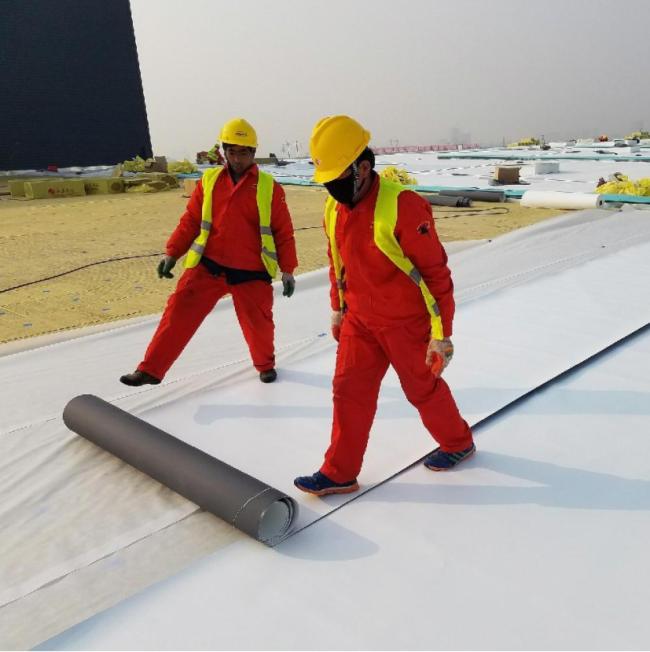

Application Scenarios
Product application scope
ndustrial and civil buildings Foundation Subway Underground comprehensive pipe gallery, etc Waterproof engineering project.
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile
4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile
4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
