OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Price:
0.1~100$/pcs
MOQ:
100pcs
Delivery Time:
5-7 days after receiving your payment
Brand:
OTOTRI
Product Description

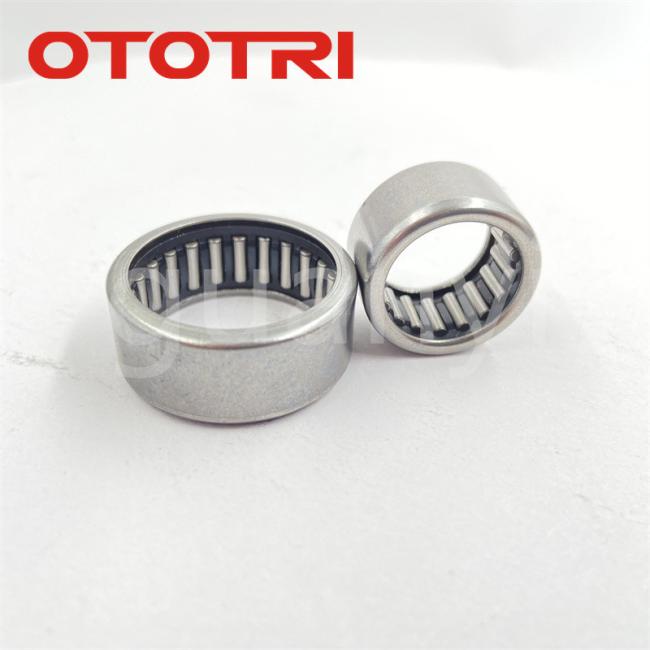

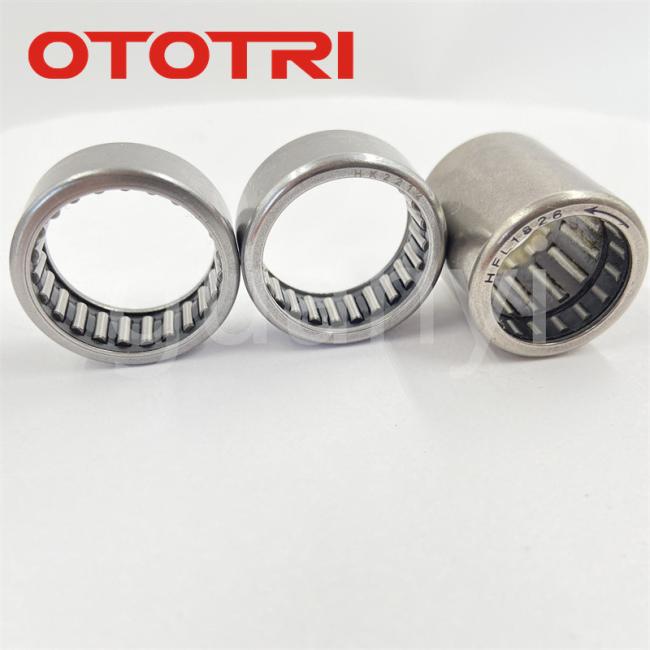

Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Needle roller bearing
About needle roller bearing:
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and
needle roller assembly featuring small section height,big load capacity & rigidity,compact
structure and small size,high rotating accuracy with the structure of disposed inner ring.
Needle roller bearing is characterized by multiple structures,broad adaptability and easy
installation.
It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and
etc. Various machinery equipment. With this kind of bearing,machine design can realize the
goal of small-scale & light weight.
Design Attributes
· Integral seals
· Side flanges (or separate end washers)
· Inner rings
· Oil holes
· Single or double caged sets (or full complement) of rollers
Applications
· Transmissions, transfer cases, engines and valve trains
· Steering and braking systems
· Axle support
· Outboard engines
· Power tools
· Copiers, fax machines, paper-moving equipment
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and
needle roller assembly featuring small section height,big load capacity & rigidity,compact
structure and small size,high rotating accuracy with the structure of disposed inner ring.
Needle roller bearing is characterized by multiple structures,broad adaptability and easy
installation.
It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and
etc. Various machinery equipment. With this kind of bearing,machine design can realize the
goal of small-scale & light weight.
Design Attributes
· Integral seals
· Side flanges (or separate end washers)
· Inner rings
· Oil holes
· Single or double caged sets (or full complement) of rollers
Applications
· Transmissions, transfer cases, engines and valve trains
· Steering and braking systems
· Axle support
· Outboard engines
· Power tools
· Copiers, fax machines, paper-moving equipment
| Shaft Diameter (mm) |
Bearing Designation | Mass Approx |
Boundary Dimensions | Basic Load Rating | Limiting Speed | ||||
| 15 | HK15X20X12 | 7941/15 | 8.4 | 15 | 20 | 12 | 5800 | 6000 | 14000 |
| HK15X20X16 | 7942/15 | 11.4 | 15 | 20 | 16 | 6000 | 6200 | 14000 | |
| HK1 5X20X20 | 7943/15 | 13.8 | 15 | 20 | 20 | 6100 | 6400 | 14000 | |
| HK1512 | 37941/15 | 11.1 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| BK1512 | 35941/15 | 12.7 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| HK1514 | 47941/15 | 12.7 | 15 | 21 | 14 | 8500 | 10400 | 13000 | |
| HK1515 | 14.2 | 15 | 21 | 15 | 9100 | 11400 | 13000 | ||
| BK1515 | 15 | 21 | 15 | 9800 | 11400 | 14000 | |||
| TA1515 | 15 | 22 | 15 | 11400 | |||||
| TA1515Z | 15 | 22 | 15 | 11400 | |||||
| HMK1515 | 15 | 22 | 15 | ||||||
| HK1516 | 57941/15 | 15 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| BK1516 | 55941/15 | 16.5 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| HK1518 | 15 | 21 | 18 | ||||||
| HK1520 | 15 | 21 | 20 | ||||||
| HMK1520 | 15 | 22 | 20 | ||||||
| HK1522 | SZ-439 | 20.4 | 15 | 21 | 22 | 10400 | 16500 | 14000 | |
| BK1522 | 22 | 15 | 21 | 22 | 10400 | 16500 | 14000 | ||
| HK15X22X12 | 7948/15 | 12.5 | 15 | 22 | 12 | 14300 | 18400 | 13000 | |
| HK15X22X12.5 | 7948/15K | 13.5 | 15 | 22 | 12.5 | 14300 | 18400 | 13000 |
|
1
|
Needle Roller and Cage Assemblies
|
K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
|
|
PCJ
|
||
|
2
|
Needle Roller and Cage Assemblies for Connecting Rod
|
PK
|
|
KBK
|
||
|
3
|
Drawn Cup Needle Roller Bearings
|
HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
|
|
HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
|
||
|
DCL
|
||
|
HCK
|
||
|
4
|
Machined-Ring Needle Roller Bearings
|
RNA48, RNA49, RNA59, RNA69, NK, NKS
|
|
NA48, NA49, NA59, NA69, NK+IR, NKS+IR
|
||
|
MR
|
||
|
MR+MI
|
||
|
RNA49‥L, RNA49‥LL
|
||
|
NA49‥L, NA49‥LL
|
||
|
5
|
Machine-ring Needle Roller Bearings Separable Type
|
RNAO, RNAO‥ZW
|
|
NAO, NAO‥ZW
|
||
|
6
|
Self Aligning Needle Roller Bearings
|
RPNA‥R
|
|
PNA‥R
|
||
|
7
|
Inner ring
|
IR
|
|
MI
|
||
|
8
|
Clearance-Adjustable Needle Roller Bearings
|
RNA49‥S
|
|
NA49‥S
|
||
|
9
|
Complex Bearings
|
NKX, NKX‥Z
|
|
NKX+IR, NKX‥Z+IR
|
||
|
NKXR, NKXR‥Z
|
||
|
NKXR+IR, NKXR‥Z+IR
|
||
|
NKIA
|
||
|
NKIB
|
||
|
AXN
|
||
|
ARN
|
||
|
10
|
Cam Followers
|
KRM‥XH, KRMV‥XH
|
|
KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
|
||
|
KR, KR‥X, KR‥LL, KR‥XLL
|
||
|
KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
|
||
|
KRV, KRV‥X, KRV‥LL, KRV‥XLL
|
||
|
KRT, KRT‥X, KRT‥LL, KRT‥XLL
|
||
|
KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
|
||
|
KRU, KRU‥X, KRU‥LL, KRU‥XLL
|
||
|
KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
|
||
|
NUKR‥H, NUKR‥XH
|
||
|
NUKR, NUKR‥X
|
||
|
NUKRT, NUKRT‥X
|
||
|
NUKRU, NUKRU‥X
|
||
|
CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
|
||
|
CR, CR‥X, CR‥LL, CR‥XLL
|
||
|
CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
|
||
|
CRV, CRV‥X, CRV‥LL, CRV‥XLL
|
||
|
11
|
Roller Followers
|
RNAB2, RNAB2‥X
|
|
NAB2, NAB2‥X
|
||
|
RNA22‥LL, RNA22‥XLL
|
||
|
NA22‥LL, NA22‥XLL
|
||
|
NATR, NATR‥X, NATR‥LL, NATR‥XLL
|
||
|
NATV, NATV‥X, NATV‥LL, NATV‥XLL
|
||
|
NACV, NACV‥X, NACV‥LL, NACV‥XLL
|
||
|
NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
|
||
|
NUTW, NUTW‥X
|
||
|
12
|
Thrust Roller Bearings
|
AXK11, AS11, WS811, GS811
|
|
811, 812, 893, 874, K811, K812, K893, K874, WS811
|
||
|
WS812, WS893, WS874, GS811, GS812, GS893, GS874
|
||
|
AXA21, ARA821, ZS
|
||
|
AXB21, ARB821, ZS
|
||
|
13
|
One-way Clutches
|
HF
|
|
HFL
|
Customer Feedback
Certifications
Company Profile
Packing & Shipping
FAQ
Q:What the MOQ of your company?
A:Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter higher cost, sure the more you purchase the cheaper cost you could get.
Q:Could you accept OEM and customize?
A:YES, we can customize for you according to sample or drawing.
Q:Could you supply sample for free?
A:Yes,we can supply sample for free, do you mind to buy her a ticket?
Q:Dose your factory have any certificate?
A:yes.we have ISO 9001:2008, IQNET and SGS. If you want other like CE,we can do for you.
Q:IS you company factory or Trade Company?
A:We have our own factory ; our type is factory +trade.
Q:Could you tell me the material of your bearing?
A:We have chrome steel, stainless steel and plastic material.
Q:Could you offer door to door service?
A:Yes, by express(DHL, FEDEX, TNT, EMS, 7-12 days to your city.)
Q:Could you tell me the payment term of your company can accept? A:T/T, Western Union, PayPal
Q:Could you tell me the delivery time of your doors?
A:Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter higher cost, sure the more you purchase the cheaper cost you could get.
Q:Could you accept OEM and customize?
A:YES, we can customize for you according to sample or drawing.
Q:Could you supply sample for free?
A:Yes,we can supply sample for free, do you mind to buy her a ticket?
Q:Dose your factory have any certificate?
A:yes.we have ISO 9001:2008, IQNET and SGS. If you want other like CE,we can do for you.
Q:IS you company factory or Trade Company?
A:We have our own factory ; our type is factory +trade.
Q:Could you tell me the material of your bearing?
A:We have chrome steel, stainless steel and plastic material.
Q:Could you offer door to door service?
A:Yes, by express(DHL, FEDEX, TNT, EMS, 7-12 days to your city.)
Q:Could you tell me the payment term of your company can accept? A:T/T, Western Union, PayPal
Q:Could you tell me the delivery time of your doors?
A:If stock, in 7 days or base on your order quantity
Q:Can you give me some discount?
A:Yes, We can, contact me immediately to get more discounts.
Q:Can you give me some discount?
A:Yes, We can, contact me immediately to get more discounts.
