Copper conductor 2 conductor 12 AWG SOOW cable
we produce the SOOW cable 2core AWG12 size.
2core, size AWG12.
APPLICATIONS
SOOW Flexible Cords are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. Southwire Type SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
SOOW Cable, 2core, 12 AWG Construction:
- Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
- Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
- Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
- Sheath: Black Chlorinated Polyethylene (CPE)
SOOW cable technical specification and all size here:
| Size AWG | No. Of conductor | Conductor stranding | Insulation thickness (In) | Jacket thickness (In) |
| 12 | 2 | 65/30 | 0.045 | 0.090 |
| 12 | 3 | 65/30 | 0.045 | 0.090 |
| 12 | 4 | 65/30 | 0.045 | 0.090 |
| 12 | 5 | 65/30 | 0.045 | 0.095 |
| 12 | 6 | 65/30 | 0.045 | 0.095 |
| 12 | 7 | 65/30 | 0.045 | 0.095 |
| 12 | 8 | 65/30 | 0.045 | 0.095 |
| 12 | 9 | 65/30 | 0.045 | 0.095 |
| 12 | 10 | 65/30 | 0.045 | 0.095 |
| 12 | 12 | 65/30 | 0.045 | 0.110 |
| 12 | 14 | 65/30 | 0.045 | 0.110 |
| 12 | 16 | 65/30 | 0.045 | 0.110 |
| 12 | 20 | 65/30 | 0.045 | 0.110 |
| 12 | 24 | 65/30 | 0.045 | 0.125 |
| 12 | 30 | 65/30 | 0.045 | 0.125 |
| 12 | 37 | 65/30 | 0.045 | 0.125 |
| 12 | 40 | 65/30 | 0.045 | 0.125 |
| 12 | 50 | 65/30 | 0.045 | 0.140 |

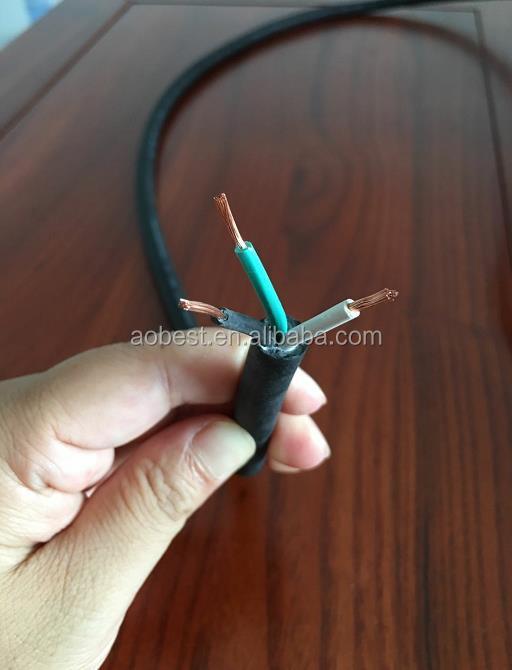

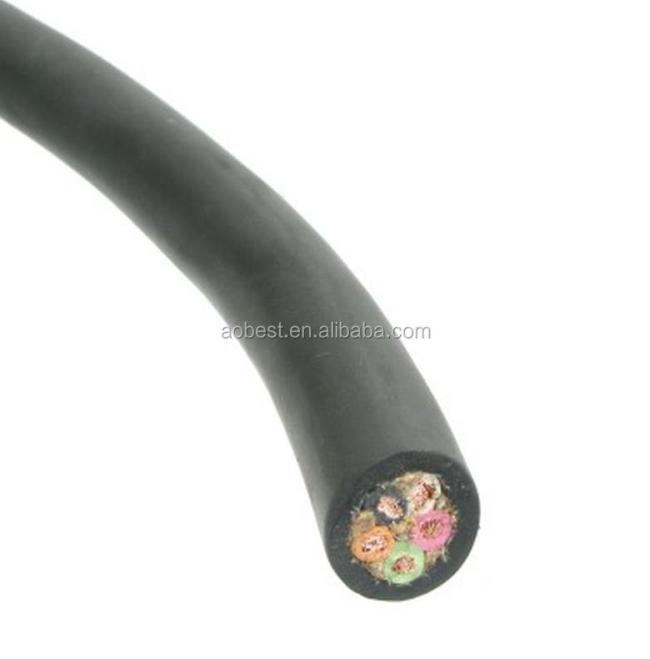

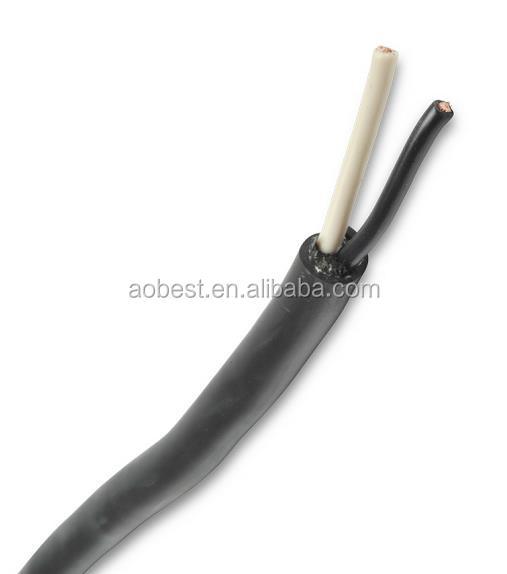

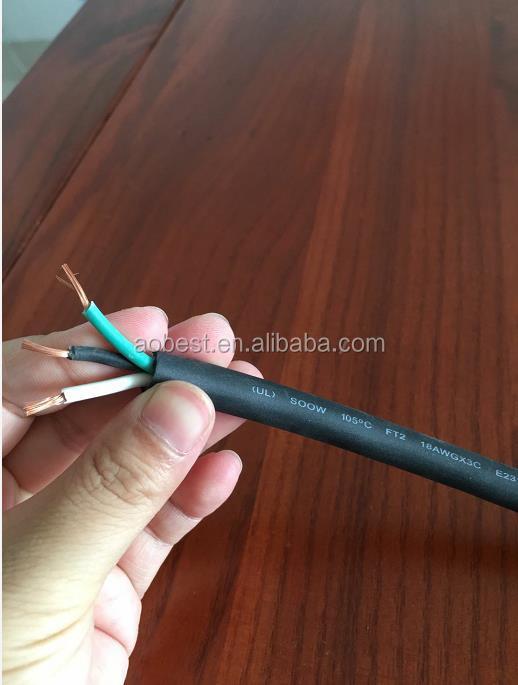

Clear picture for SOOW cable:
