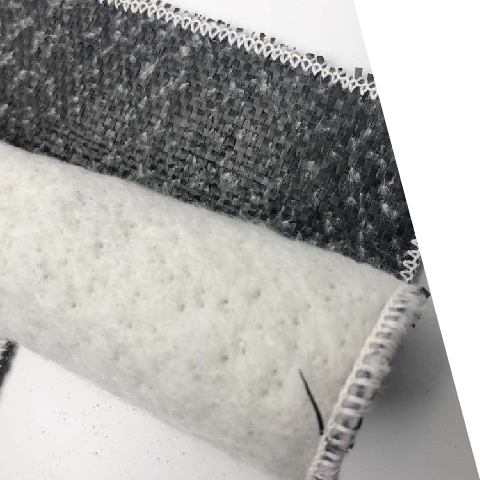

Geosynthetic clay liner is composed of high dilatability of sodium base bentonite filling between the special composite geotextile
and nonwoven fabric, made by the method of acupuncture or suture composite impervious material. Use acupuncture into geosynthetic
clay liner can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of
water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water. For different
projects,it can combine HDPE liner for better waterproof
ISO14001 Certified Sodium-Based Bentonite Geosynthetic Clay Liner for Water Conservancy
Price:
$1.51/square meters 500-4999 square meters
MOQ:
500 square meters
Delivery Time:
Negotiable
Brand:
TENGLU
Product Description
Products Description
Geosynthetic Clay liner
Specification
Item | Technical Index | ||||||
material | ≥4000,Not Less Than Specified Value | ≥4000,Not Less Than Specified Value | ≥4000,Not Less Than Specified Value | ||||
Mass per Unit | GCL-NP | GCL-OF | GCL-AH | ||||
Swelling index of Bentonite(ml/2g) | ≥24 | ≥24 | ≥24 | ||||
Adsorbed Methylene Blue(g/100g) | ≥30 | ≥30 | ≥30 | ||||
Tensile Strength(N/100mm） | ≥600 | ≥700 | ≥600 | ||||
Max.Elongation Under Load（%） | ≥10 | ≥10 | ≥8 | ||||
Peel Strength(N/100MM) | Non-woven Cloth and Woven Cloth | ≥40 | ≥40 | - | |||
thickness | PE Film and Non-woven Fabric | - | ≥30 | - | |||
Permeability Coefficient(m/s) | ≤5.0*10-11 | ≤5.0*10-12 | ≤1.0*10-12 | ||||
Resistance to Hydrostatic Pressure | 0.4MPa,1h,No Leakage | 0.6MPa,1h,No Leakage | 0.6MPa,1h,No Leakage | ||||
Filtration Loss(ml) | ≤18 | ≤18 | ≤18 | ||||
Durability of Bentonite(ml/2g) | ≥20 | ≥20 | ≥20 | ||||
NP is a normal index,our expansion coefficient is 28,the peeling strength can reach 65N,and the tensile strength can reach 1000N.Of them belong to the waterproof blanket coverd with film ,AH.
Related products
Geotextile Geogrid Geomembrane Cement blanket

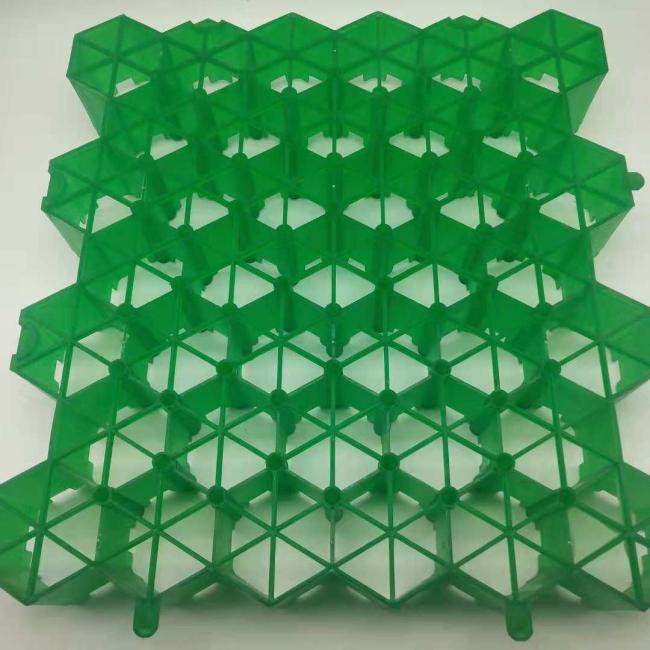

Grass Grid Plastic Drainage Board 3D Geomat
Geosynthetic Clay Liner Production line Geogrid Prodution line
Geotextile Production Line Geocell Prodution Line Geomembrane Prodution Line
Company Profile
Tai'an Tenglu Engineering Materials Co., Ltd. is located at the foot of Mount Tai---Taian, Shandong. The company has always adhered to the enterprise spirit of "honesty, credit first", specializing in the production of geomembrane, geotextile, geogrids, geocells, geonet, cement blanket, geosynthetic clay liner, 3D composite drainage geonet, plastic drainage board, permeable pipe and other series of geosynthetic materials. The products are widely used in the foundation reinforcement of highways, railways, airports, municipal engineering, anti-seepage of construction projects, landscaping, landfills, sewage treatment, solid waste disposal, waterproof engineering, etc.
"Gui Nuo Lian jin" is our company's principle. We follow the Confucian style and corporate morality in our operations, and have won a good social reputation. In production, we insist on taking science and technology as the guide and management as the guarantee, so that the product quality is Topping the list in the same industry. The company has successfully passed the ISO9001 quality management system certification, and related products have been identified by China Railway, China Construction, China Communications, China Metallurgical, China Hydropower and other departments, and have obtained long-term cooperative relations with relevant units. Some products have been tested by the Swiss General Notary Public (SGS) and obtained the test report.
Warmly welcome friends from all over the world to visit and guide, and we are willing to cooperate sincerely with you to create brilliant achievements.
Packing & Delivery
Packing Instructions
Packed in roll and put in woven bags or follow the customer requirements .
Customer's logo on package available.
