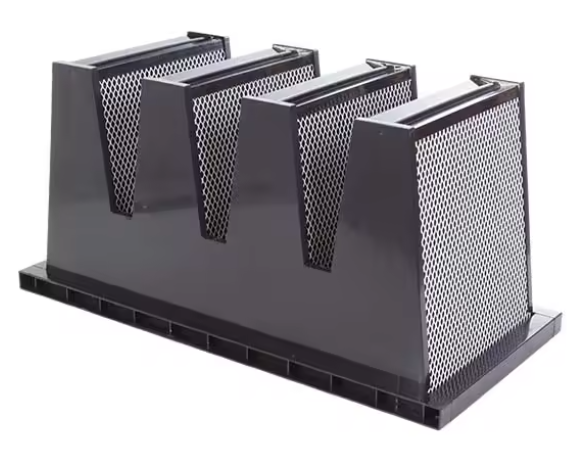

Hvac System Compact V-Bank Type Hepa Filter With Activated Carbon Compact Filter
HVAC System Compact V-Bank Type HEPA Filter With Activated Carbon Compact Filter
Specialty:
A carbon V-Bank air filter is a type of air filter that incorporates activated carbon into its filtration media. This filter is designed to not only capture airborne particles like dust, pollen, and mold spores but also to remove gases, odors, and volatile organic compounds (VOCs) from the air.
Here's how it works:
V-Bank Configuration: Similar to traditional V-Bank air filters, this type of filter features a V-shaped arrangement of filter media. This configuration maximizes the surface area available for filtration within a compact space, allowing for efficient particle removal.
Activated Carbon: The key feature of a carbon V-Bank air filter is the inclusion of activated carbon in the filter media. Activated carbon is a highly porous material with a large surface area, which makes it effective at adsorbing gases and odorous molecules. As air passes through the filter, the activated carbon traps and removes these contaminants, improving indoor air quality.
Specification:
| Type |
Dimensions W*H*D(mm) |
Filter Class(m2) | Structure |
Initial resistance &airflow(Pa&m3/h) |
Frame | ||
| HF-HV | F8 | H10 | H13 | Plastic | |||
| 287*592*292 | 8.4 |
FlangedType 4V |
90&1600 | 180&1600 | 240&1600 | ||
| 592*592*292 | 18.8 | 90&3200 | 180&3200 | 240&3200 | |||
| 305*610*292 | 13.5 |
Box Type 5v |
90&1800 | 180&180 | 240&1800 | ||
| 610*610*292 | 27 | 90&3600 | 180&3600 | 240&3600 | |||
Detailed Displays:
