Other Tolerance 10mm 12mm 14mm 16mm 18mm 20mm 24mm 30mm 32mm 34mm 36mm 40mm Compacted Wire Rope for Processing Service
6xK7+FC Compacted Wire Rope 10mm 12mm 14mm 16mm 18mm 20mm 24mm 30mm 32mm 34mm 36mm 40mm Ungalvanized and Galvanized Wire Rope
- Place of Origin:China
- Brand Name:CHONGHONG
- Product Name:Compacted Wire Rope
- Construction: 6xK7+FC
- Material: Carbon steel
- Diameter:10mm to 40mm
- Length:500M/reel, 1000M/reel or Customization
- Surface treatment:Galvanized
- Main Applications:Hoisting for erect well.

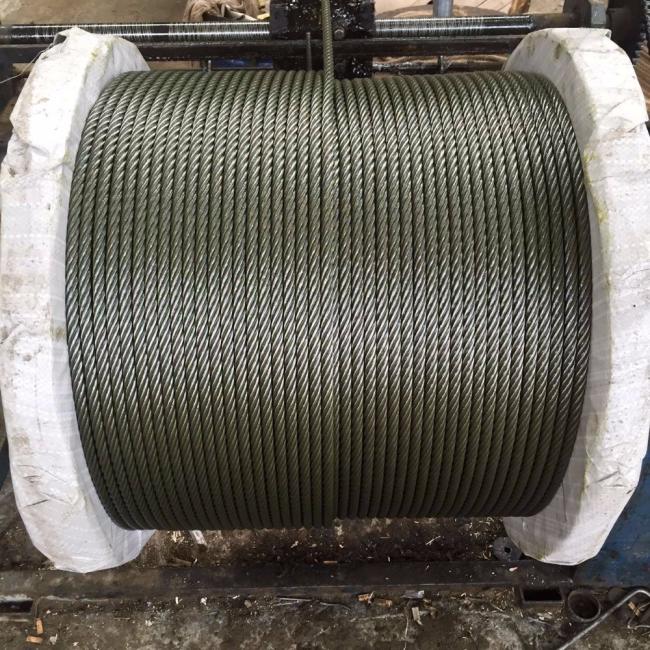

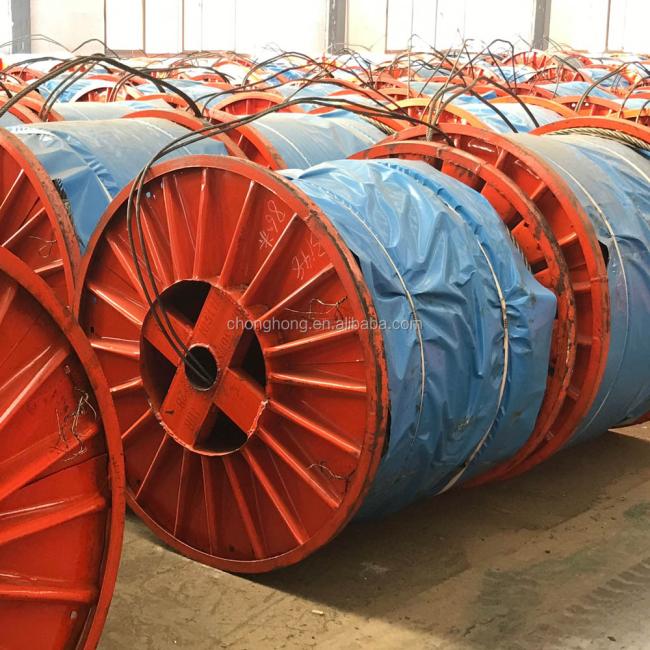

- Packaging:Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box or as per customer's requirements
IWRC Independent Wire Rope Core belongs Steel Core, the Steel Core Rope has a big breaking force, and a good resistance to impact, high temperature and extrusion.
Compacted Strand has been subject to a compacting process such as drawing rolling or swageing where by the metalic cross-sectional area of the wires remains unaltered whereas the shape of the wires and the dimension of the strands are modified.
COMPACTED STRAND ROPE, the wires in the strand are in the facial contact state, The metal block-coefficient of the wire rope is big, and the structure of the strand is tight. When the wire rope is being used, it does not have quadratic bending stress between the wires of every year, and has small contact stress. So the COMPACTED ROPE has good antifriction, anti-extruction and anti-fatigue characteristic, and it is not easily distortion.
Other Construction and Application
- 6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, ing, lifting, towing etc.
- 6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
- 6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×5Fi+FC,6×25Fi+IWR, 6×9Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, ing, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
- 18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload ,and tower crane.
- 6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
- Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
- Galvanized Aircraft Cable 1×7, 1×19, 6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other
We can supply steel wire ropes of many specifications with various surface to meet customers'needs.
| MOQ | 1000Meters |
| Supply Ability | 1500 Tons per Month |
| Packaging Details | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 20’FCL | Max 25 tons |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time | Within 30 days after your official S/C and bank receipt of 30% deposit . |
Chonghong Industries Ltd. is a private enterprise,we are professional manufacturer of steel wire rope for 15years.
We mainly supply and manufacture galvanized aviation-use steel ropes with various structures and specifications, brake wires for cars, motorcycles and bicycles, stainless steel ropes, non rotating steel ropes, elevator wire ropes, and wire ropes for special uses. Our current annual output is 4,000 tons of galvanized steel ropes.
Backed by comprehensive production equipment, advanced testing instruments, and experienced staff, we guarantee reliable product quality. Today, our customers are in more than 60 countries in the European Union, North America, South and Central America, the Middle East and Southeast Asia.
In ordering steel wire rope, you are requested to give us complete information as specified below:
a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
