6x19 IWRC Bright Stainless Steel Wire Rope Polished and Corrosion Resistant for Long-Lasting Performance
6x19+IWRC Bright Stainless Steel Wire Rope
- Place of Origin : China
- Brand Name : CHONGHONG
- Product Name : Stainless Steel Wire Rope
- Standard:DIN Standard,RR-W-401 Standard
- Constructions : 6x19+FC,6x19+IWS,6x19+IWR
- Also Available in 1x3, 1x7 ,1x19,1x37, 3x3, 3x7,6x7,6x7+IWS, 6x12+7fc,6x15+7fc,6x19S+FC, 6x19W,6x19S,6x24+7fc,6x25Fi, 6x26WS,6x31WS,6x36,7x37,8x19S, 8x19W, 8x25Fi,8x26SW, 19x7,35W*K7,35W*7,6*K36WS,4V*39S+5FC etc.
- Material: Stainless steel 304/316 etc.
- Diameter :3mm to 46mm
- Surface treatment:Polished
- Length : 200M/reel,500M/reel,1000M/reel,2000M/reel or as per customer's requirements
- Lay : Right hand regular lay or left hand regular lay
- Nominal tensile strength : 1570MPa, 1670MPa, 1770MPa, 1870MPa
- Feature:Good corrosion, heat and cold resistance
- Application : Lifting machine,fish net dragging,heat steel-moving machine.
- Packaging:Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box,or as per customer's requirements
Stainless steel wire rope – these are normally made of AISI 302/304 or AISI 316. AISI 302/304 offers higher breaking strength. AISI 316 offers better electrolytic corrosion resistance which makes it more suitable for marine.
- Applications
The grade of the wire is the minimum breaking strength. The most common grades used are: 1470 N/mm². 1570N/mm² .1770 N/mm².Other grades are used for some special applications.
- The core
Fiber Core (F.C.), usually polypropylene (P.C.), sometimes (H.C.) and sisal.Independent Wire Rope Core (IWRC),Wire Strand Core (WSC),IWRC and WSC are sometimes referred to as steel wire core or steel center.
- Construction
Expressed in numbers of strands x number of wires.
For example: 6 x 25 indicates that the wire rope consists of 6 strands, which in turn have 25 individual wires.
- Lay
Right Regular Lay (RRL) ;Right Lang Lay (RLL) ;Left Regular Lay (LRL) ;Left Lang Lay (LLL)
Other Construction and Application
- 6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, ing, lifting, towing etc.
- 6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
- 6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×5Fi+FC,6×25Fi+IWR, 6×9Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, ing, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
- 18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload ,and tower crane.
- 6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
- Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
- Galvanized Aircraft Cable 1×7, 1×19, 6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.
We can supply steel wire ropes of many specifications with various surface to meet customers'needs.
| MOQ | 1000Meters |
| Supply Ability | 1500 Tons per Month |

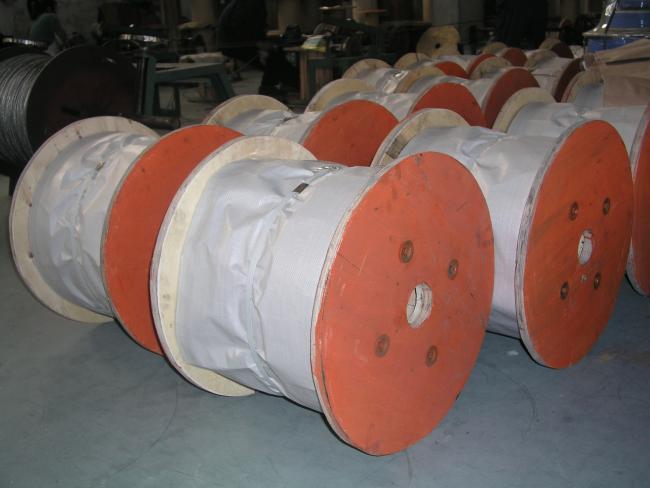

| Packaging Details | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 20’FCL | Max 25 tons |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time | Within 30 days after your official S/C and bank receipt of 30% deposit . |
Chonghong Industries Ltd. is a private enterprise,we are professional manufacturer of steel wire rope for 15years.
We mainly supply and manufacture galvanized aviation-use steel ropes with various structures and specifications, brake wires for cars, motorcycles and bicycles, stainless steel ropes, non rotating steel ropes, elevator wire ropes, and wire ropes for special uses. Our current annual output is 4,000 tons of galvanized steel ropes.
Backed by comprehensive production equipment, advanced testing instruments, and experienced staff, we guarantee reliable product quality. Today, our customers are in more than 60 countries in the European Union, North America, South and Central America, the Middle East and Southeast Asia.
In ordering steel wire rope, you are requested to give us complete information as specified below:
- Purpose: For which rope will be used.
- Size: Diameter of the rope in millimeter or inches
- Construction: Number of strands, number of wires per strand and type of strand construction.
- Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
- Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
- Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
- Grade of wire: Tensile strength of wires.
- Breaking Load: Minimum or calculated breaking load in tones or pounds.
- Lubrication: Whether lubrication is desired or not, and required lubricant.
- Length: Length of wire rope.
- Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
