Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Price:
Negotiable
MOQ:
2000Meters
Delivery Time:
15-21 days
Brand:
Honghao
Product Description
Products Description

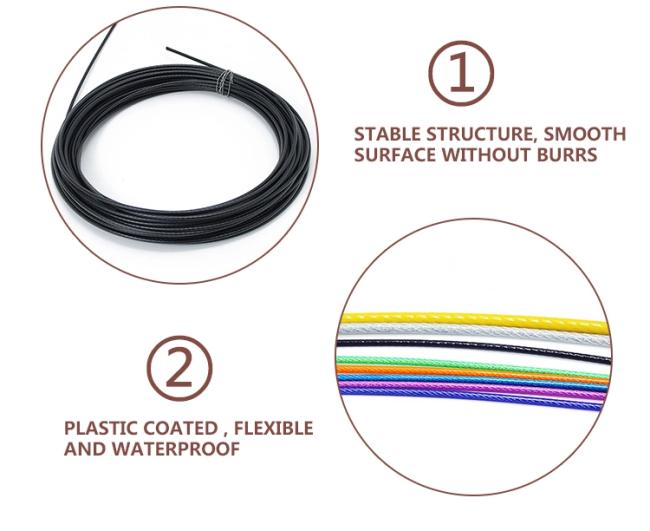

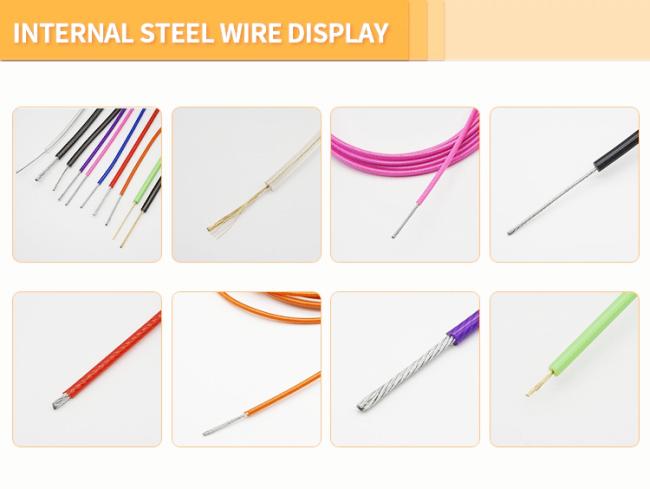

Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
* Vinyl coated stainless steel wire rope aircraft cable.
Pvc coated stainless Steel wire rope
Nylon coated Stainless Steel Wire Rope
Raw material A2 A4 AISI304 AISI316 T304 T316
* 100 ft (30.5 meters) 200ft 250ft and 1000 ft in length, cable bare OD is from 1mm to 10mm, vinyl coated OD is from 2mm to 15mm
strength.
* 7x7 7X19 6X12+FC strands construction. Spool package, wrap with heat shrinkable film.
* Designed for industrial and marine applications, for traction, tension, strapping, landscape, and architectural use. Hanging
string lights, growing vines, etc. The wire has a plastic coating on it so it won't cut the vine. Not suitable for overhead
lifting and aircraft use.
* 100 ft (30.5 meters) 200ft 250ft and 1000 ft in length, cable bare OD is from 1mm to 10mm, vinyl coated OD is from 2mm to 15mm
strength.
* 7x7 7X19 6X12+FC strands construction. Spool package, wrap with heat shrinkable film.
* Designed for industrial and marine applications, for traction, tension, strapping, landscape, and architectural use. Hanging
string lights, growing vines, etc. The wire has a plastic coating on it so it won't cut the vine. Not suitable for overhead
lifting and aircraft use.
More Products
1. Stainless steel wire rope
These are normally made of AISI 302/304 or AISI 316. AISI 302/304 offers higher breaking strength. AISI 316 offers better electrolytic corrosion resistance which makes it more suitable for marine applications.
2. The grade of the wire is the minimum breaking strength.
The most common grades used are: 1470 N/mm². 1570N/mm² .1770 N/mm².Other grades are used for some special applications.
3. The core:
Fiber Core (F.C.), usually polypropylene (P.C.), sometimes (H.C.) and sisal. Independent Wire Rope Core (IWRC) Wire Strand Core (WSC) IWRC and WSC are sometimes referred to as steel wire core or steel center.

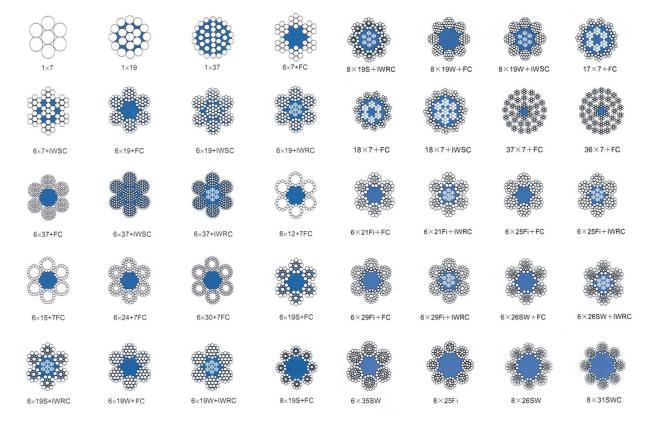

4. Construction:
Expressed in numbers of strands x number of wires.
for example: 6 x 25 indicates that the wire rope consists of 6 strands, which in turn have 25 individual wires.
5. Lay:
Right Regular Lay (RRL) ;Right Lang Lay (RLL) ;Left Regular Lay (LRL) ;Left Lang Lay (LLL)
These are normally made of AISI 302/304 or AISI 316. AISI 302/304 offers higher breaking strength. AISI 316 offers better electrolytic corrosion resistance which makes it more suitable for marine applications.
2. The grade of the wire is the minimum breaking strength.
The most common grades used are: 1470 N/mm². 1570N/mm² .1770 N/mm².Other grades are used for some special applications.
3. The core:
Fiber Core (F.C.), usually polypropylene (P.C.), sometimes (H.C.) and sisal. Independent Wire Rope Core (IWRC) Wire Strand Core (WSC) IWRC and WSC are sometimes referred to as steel wire core or steel center.
4. Construction:
Expressed in numbers of strands x number of wires.
for example: 6 x 25 indicates that the wire rope consists of 6 strands, which in turn have 25 individual wires.
5. Lay:
Right Regular Lay (RRL) ;Right Lang Lay (RLL) ;Left Regular Lay (LRL) ;Left Lang Lay (LLL)
Specification
| Construction | Diameter (in) |
Approx.weight(lb./100ft) | Minimum Breaking Load(lb.) | |
| Galvanized | Stainless | |||
| Nylon/PP/PE/PU/PVC-coated 7x7 | 1/16-3/32 | 1.01 | 480 | 480 |
| Nylon/PP/PE/PU/PVC-coated 7x7 | 3/32-1/8 | 1.96 | 920 | 920 |
| Nylon/PP/PE/PU/PVC-coated 7x7 | 1/8-3/16 | 3.83 | 1700 | 1700 |
| Nylon/PP/PE/PU/PVC-coated 7x19 | 1/8-3/16 | 3.93 | 2000 | 1760 |
| Nylon/PP/PE/PU/PVC-coated 7x19 | 3/16-1/4 | 7.95 | 4200 | 3700 |
| Nylon/PP/PE/PU/PVC-coated 7x19 | 1/4-5/16 | 12.90 | 7000 | 6400 |
| Nylon/PP/PE/PU/PVC-coated 7x19 | 3/32-1/8 | 19.60 | 9800 | 9000 |
| In addition to the above list, according to customer needs, can supply other specifications and tensile strength of products. | ||||

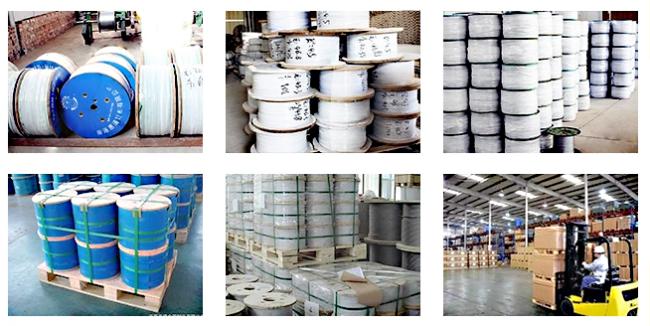

Packing & Delivery
Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box,or as per customer's requirement
