4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
Price:
$2,800.00 - $5,800.00/sets
MOQ:
1Set
Delivery Time:
5-7days
Brand:
Rensolin
Product Description
Products Description

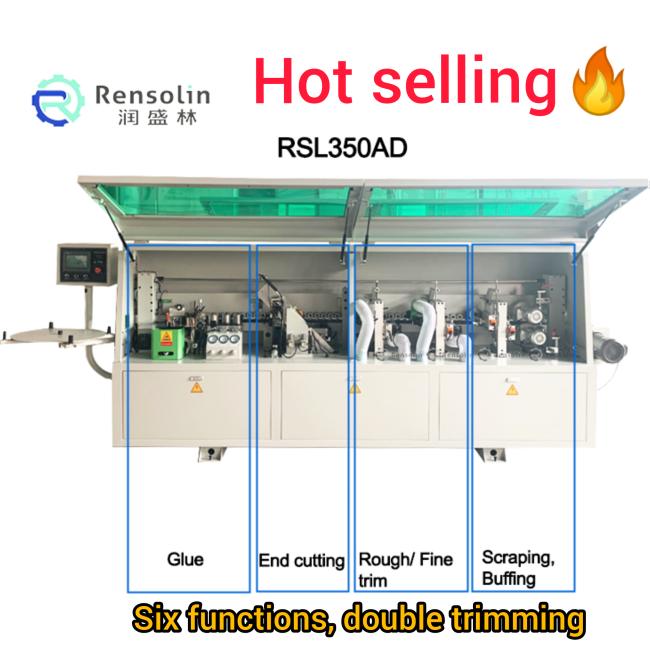

350AD Functions
Step1: Glue and Pressing
The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid
conglutination.
conglutination.
Step2: End Cutting
The end trimming mechanism through a high precision linear guide rail, adopt automatic tracking and high-frequency motor fast
cutting structure to ensure the cutting surface smoothly.
cutting structure to ensure the cutting surface smoothly.
Step3:Rough Trimming
Comes with flat knife which can prevent thin veneer from cracking. This can reduce the cutting forces, wear and tear of fine trimming cutter.
Step4: Fine Trimming
Used for cutting the excess edge materials,adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.
Step5: Scraping
For a perfect finishing of the applied edge.
Step6: Buffing
Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface.
Machine Application
|
Model
|
RSL350AD
|
|
Name
|
Full Automatic edge banding machine
|
|
Panel thickness
|
10-60mm
|
|
Belt thickness
|
0.4-3mm
|
|
Min. width of panel
|
>=80mm
|
|
Min. length of panel
|
>=120mm
|
|
packaging size
|
4100mm*750mm*1600mm
|
|
Feeding speed
|
12-20meters/min
|
|
Total power
|
9kw
|
|
Air pressure
|
0.6-0.8 Mpa
|
|
Voltage
|
380V/50HZ/3phase
|
|
Weight
|
1400KG
|
product advantages

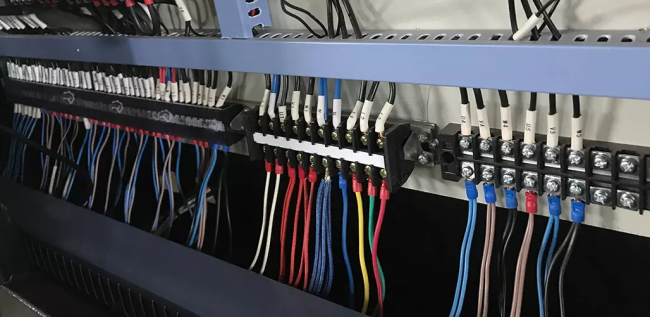

Electric Wires

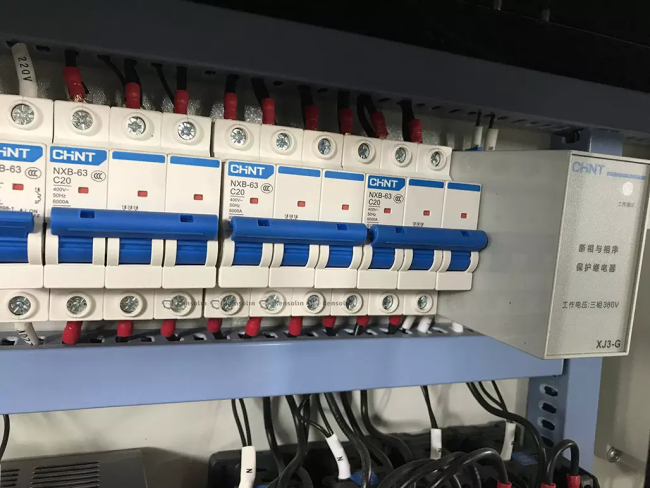

Power off switch and Phase sequence protector
Avoid accidents that may be caused by the reversal of the machine installation, protect the safety of workers, and ensure the service life of the machine..

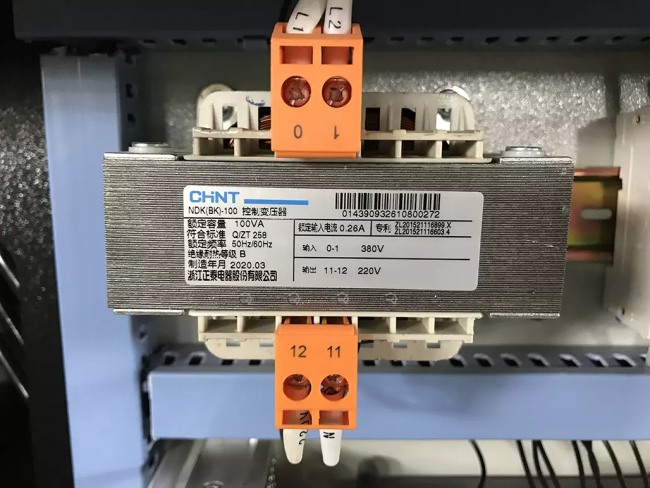

Transformer
Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.

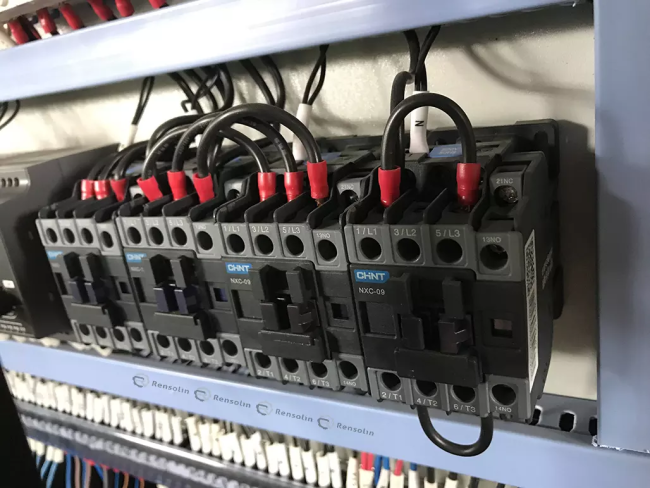

Contactor
Switch on and off the circuit, low voltage release protection.
