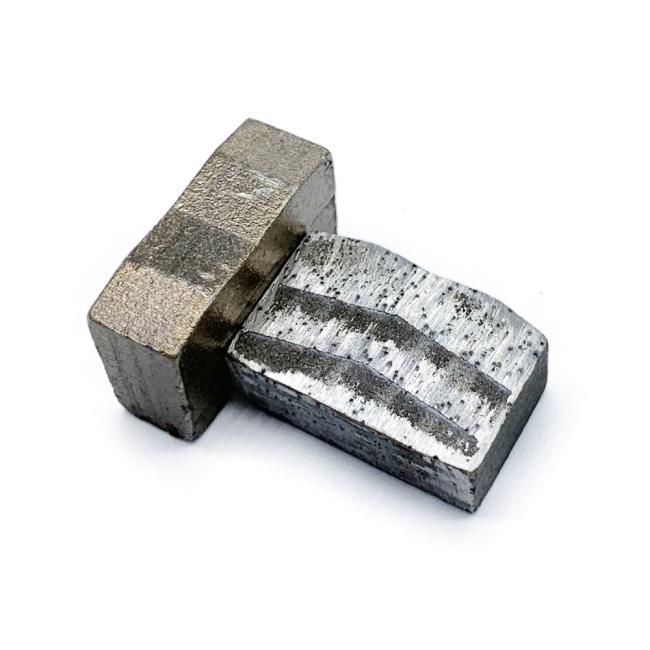

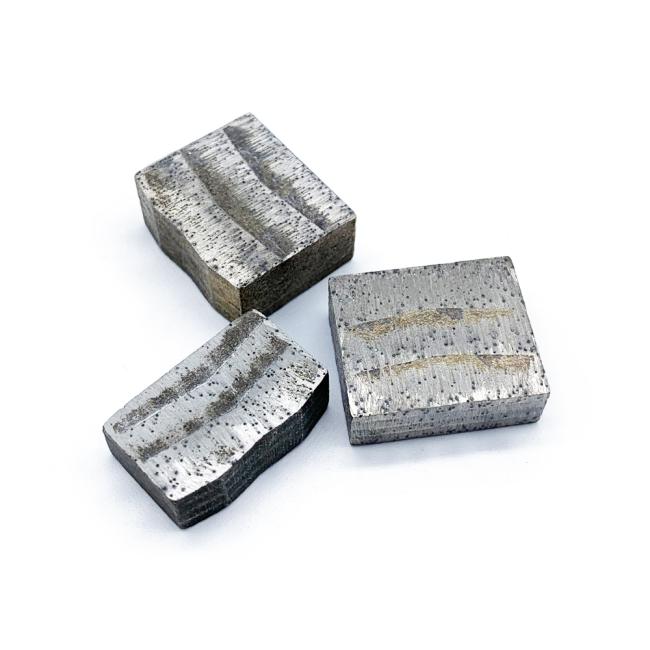

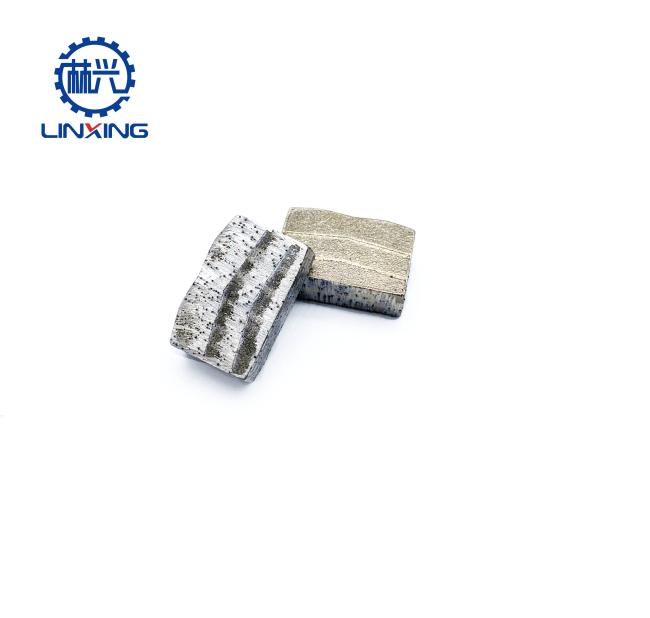

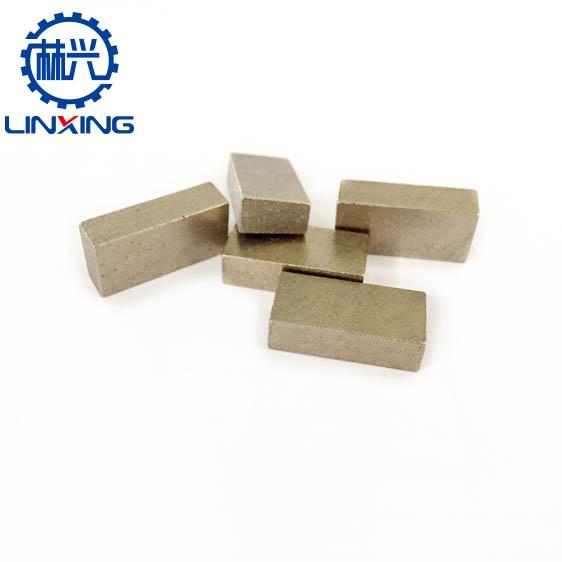

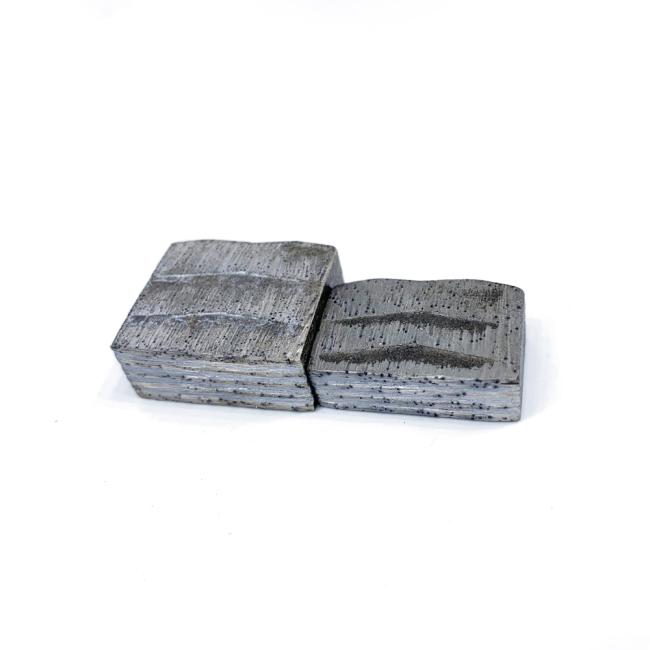

Product Name | Linxing high quality diamond segment for granit |
Size | 24*9.2/8.4*15mm(other size all available) |
Color | golden color |
Application | Hard and middle hard granite |

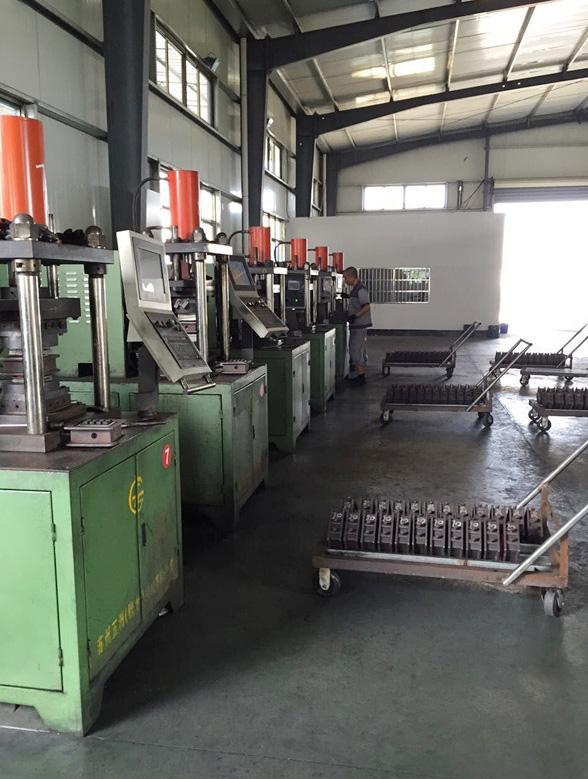

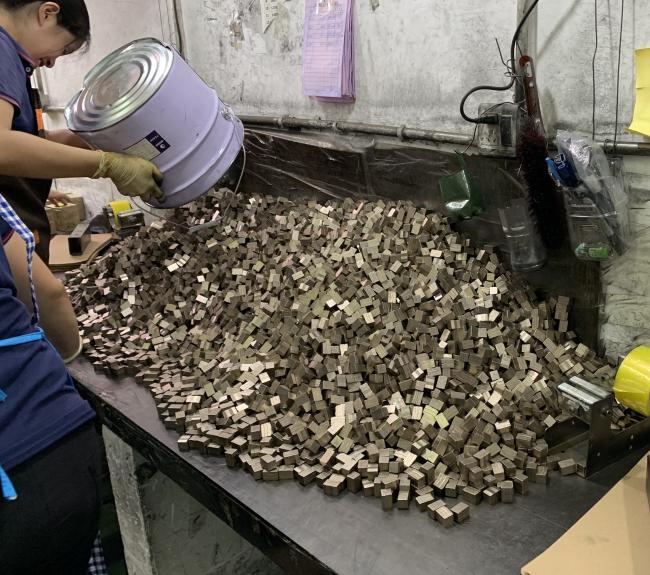

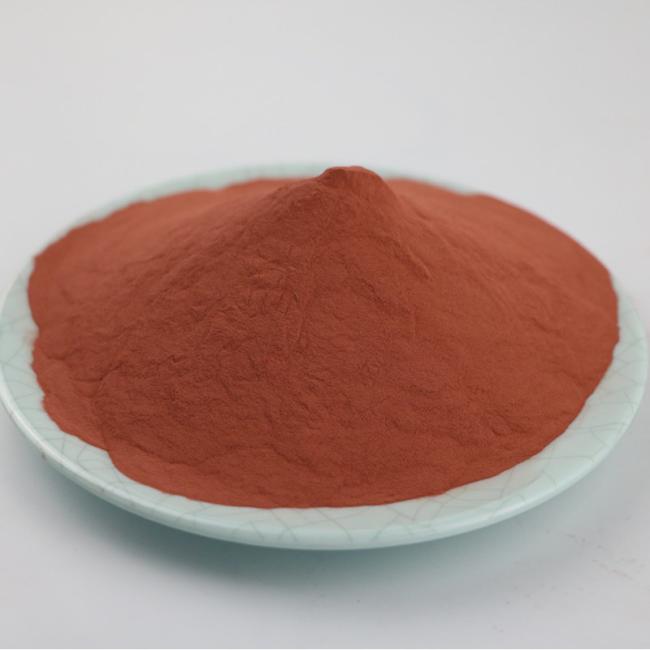

Quality Check | Raw materials check=> Produce system controll=> End productions check |
Feature | 1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping |
Dimeter (mm) | blade thickness (mm) | segment length (mm) | segment thickness(mm) | segment height (mm) | segment number |
900 | 5.0 | 24 | 7.0/6.2 | 13/15/20 | 64 |
1000 | 5.0 | 24 | 7.0/6.2 | 13/15/20 | 70 |
1200 | 5.5 | 24 | 7.4/6.6 | 13/15/20 | 80 |
1400 | 6.0 | 24 | 8.0/7.2 | 13/15/20 | 92 |
1400 | 6.5 | 24 | 8.4/7.6 | 13/15/20 | 92 |
1600 | 7.2 | 24 | 9.2/8.4 | 13/15/20 | 104/108 |
1800 | 7.5 | 24 | 10.0/9.2 | 15/20 | 120 |
2000 | 8.0 | 24 | 10.6/9.8 | 15/20 | 128 |
2200 | 9.0 | 24 | 10.6/9.8 | 15/20 | 132 |
2500 | 9.0 | 24 | 12.4/11.6 | 15/20 | 140 |
3000 | 9.3 | 24 | 12.8/12.0 | 15/20 | 160 |
3500 | 9.5 | 24 | 13.6/12.8 | 15/20 | 180 |
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
