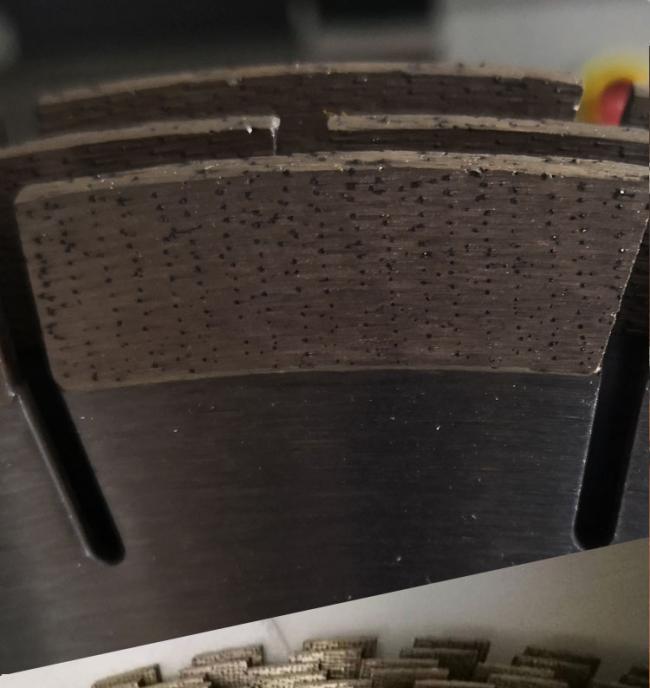

Diamond Powder 450mm Arix Diamond Saw Blade Disc Cutter for Granite Stone Cutting Tool
Arranged saw blade is a high-quality cutting product with high sharpness and long service life, which is specially used for granite cutting Its sharpness is about 30% higher than that of general saw blades The incision is smooth, without edge collapse, with excellent stable cutting performance.
Product feature:
1. Higher cutting efficiency and low energy consumption than normal blades.
2. Effectively reduce noise and protect the environment.
3. It can be widely used on various power machines.
4. Application: Granite cutting.
Product specification:
| Diameter (inch/mm) | Steel Core Thickness (mm) | Segment Specification (mm) | Segment No. (pcs) |
| Φ4”/105 | 1.4 | 32×2.2×10(2) | 8 |
| Φ4.5”/115 | 1.4 | 32×2.2×10(2) | 9 |
| Φ5”/125 | 1.4 | 32×2.2×10(2) | 10 |
| Φ6”/150 | 1.4 | 32×2.2×10(2) | 12 |
| Φ7”/180 | 1.8 | 32×2.6×10(2) | 14 |
| Φ8”/200 | 1.8 | 32×2.6×10(2) | 16 |
| Φ9”/230 | 2.0 | 38×2.8×10(2) | 16 |
| Φ10”/250 | 2.0 | 38×2.8×10(2) | 17 |
| Φ12”/300 | 2.2 | 40×3.2×10(2) | 21 |
| Φ14”/350 | 2.2 | 40×3.2×10(2) | 24 |
| Φ16”/400 | 2.2 | 40×3.2×10(2) | 28 |
| Blade Diameter(inch/mm) | Steel Core Thickness(mm) | Segment Specification(mm) | Segment No.(pcs) |
| Φ12”/300 | 2.2 | 43/40×3.2×12(15,20) | 21 |
| Φ14”/350 | 2.2 | 43/40×3.2×12(15,20) | 24 |
| Φ16”/400 | 2.6 | 43/40×3.6×12(15,20) | 28 |
| Φ18”/450 | 3.0 | 43/40×4.2×12(15,20) | 32 |
Other specifications are available upon request.
