Cutting Arabescato Orobico Marble Stone with Good Performance Diamond Marble Tool

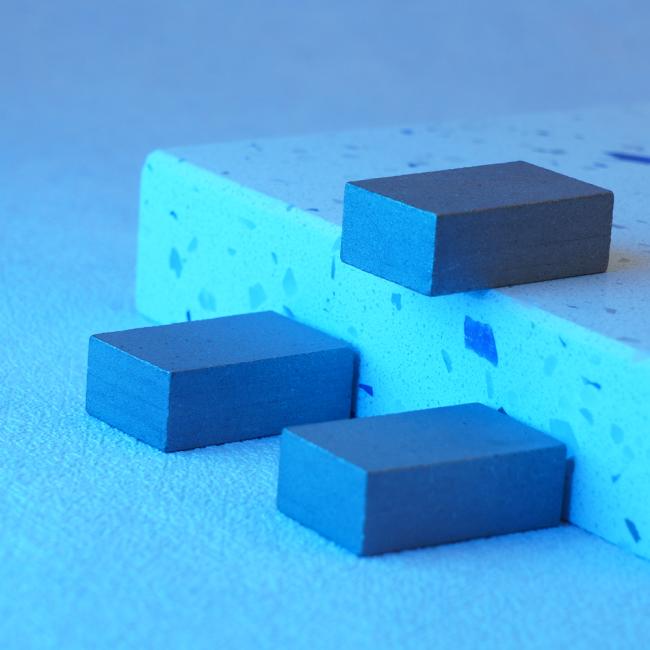

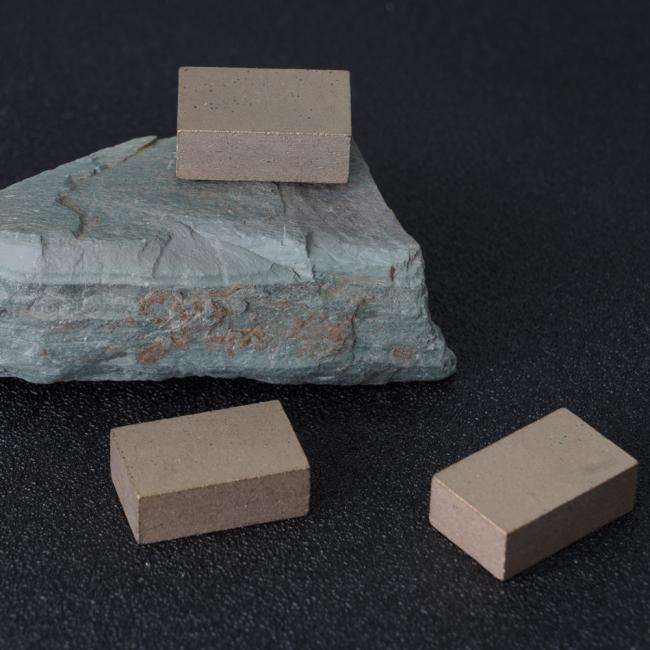

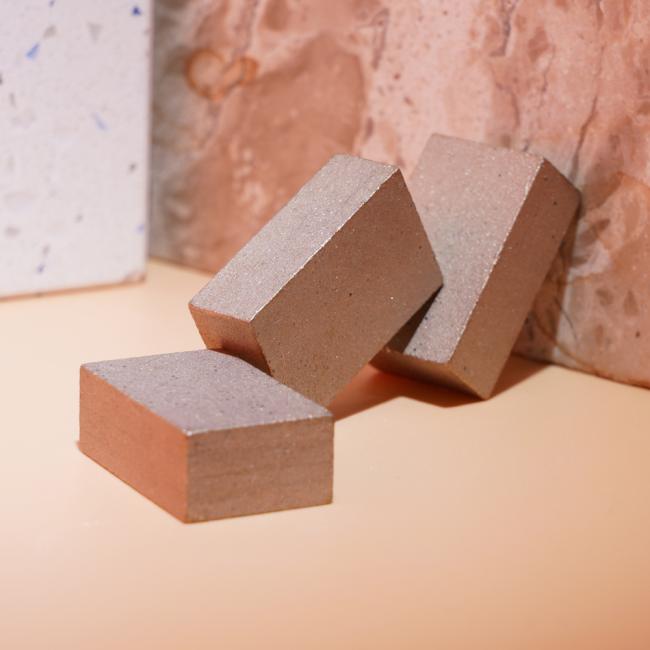

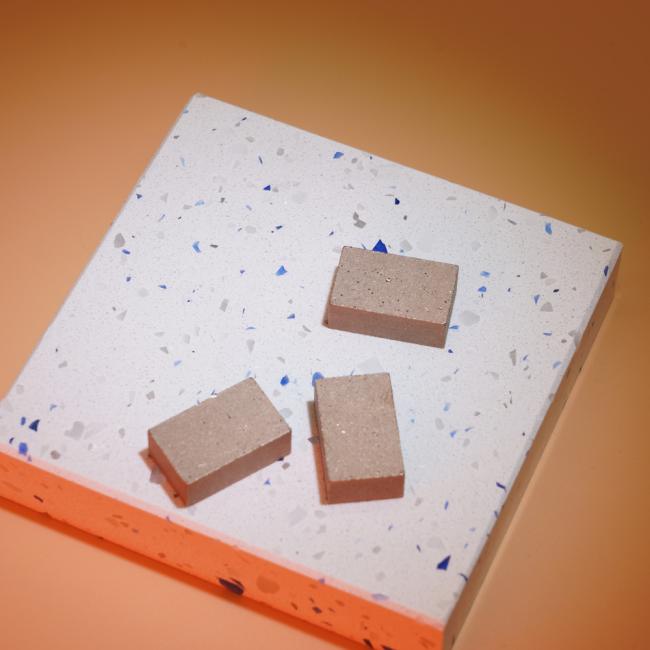

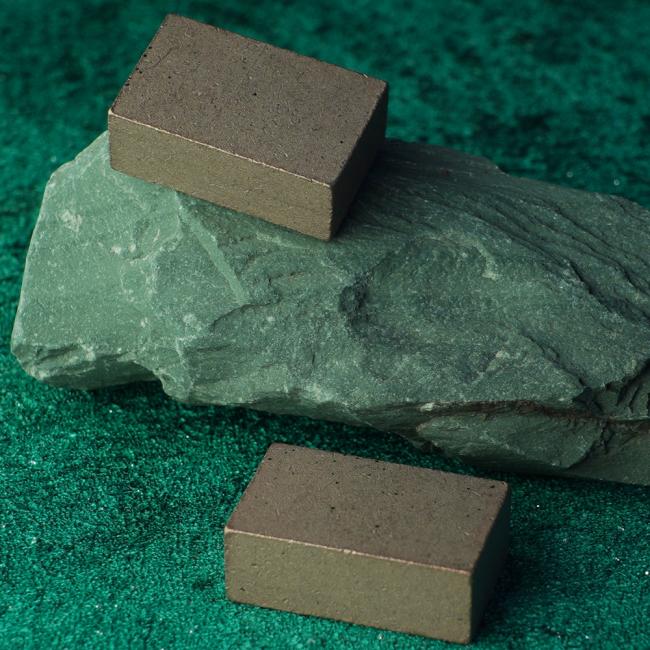

Diamond Segment For Marble
Product Features
1. Good sharpness and high efficiency without chipping.
2. Strict QC for stable cutting performance.
3. Long lifespan with high cost-effective.
4. Segment is easy for opening
Product Specification
| Blade Diameter(inch/mm) | Steel Core Thickness(mm) | Segment Specification(mm) | Segment No(pcs) |
| Φ12”/300 | 2.2 | 42/40x3.2x8(10,12,15) | 22 |
| Φ14”/350 | 2.2/2.4 | 42/40x3.4x8(10,12,15) | 25 |
| Φ16”/400 | 2.6 | 42/40x3.6x8(10,12,15) | 29 |
| Φ18”/450 | 2.8/3.0 | 40x4x8(10,12,15) | 32 |
| Φ20”/500 | 3.0/3.2 | 40x4.2x8(10,12,15) | 35 |
| Φ24”/600 | 3.6/3.8 | 40x5x8(10,12,15) | 42 |
| Φ28”/700 | 4 | 40x5.2x8(10,12,15) | 50 |
| Φ32”/800 | 4.5 | 40x6x8(10,12,15) | 57 |
| Φ36”/900 | 5.0 | 24x7.5x8(10,12,13,15) | 64 |
| Φ40”/1000 | 5.0 | 24x7.5x8(10,12,13,15) | 70 |
| Φ48”/1200 | 5.5 | 24x8.0x8(10,12,13,15) | 80 |
| Φ52”/1300 | 6.0 | 24x8.5x8(10,12,13,15) | 88 |
| Φ56”/1400 | 6.5 | 24x9.0x8(10,12,13,15) | 92 |
| Φ64”/1600 | 7.2 | 24x9.2x8(10,12,13,15) | 108 |
| Φ72”/1800 | 7.5 | 24x10x8(10,12,13,15) | 120 |
| Φ80”/2000 | 8.0 | 24x10.5x8(10,12,13,15) | 128 |
| Φ88”/2200 | 8.0/9.0 | 24x11x8(10,12,13,15) | 132 |
| Φ100”/2500 | 9.0 | 24x11x8(10,12,13,15) | 140 |
| Φ120”/3000 | 9.5 | 24x12x8(10,12,13,15) | 160 |
| Φ140”/3500 | 9.5 | 24x12x8(10,12,13,15) | 180 |
Other specifications are available upon request.
