Customized OBM Support Double Vacuum Brazed Marble Quarry Wire Saw Bead for Cutting
Price:
$0.31/pieces 200-1999 pieces
MOQ:
200 pieces
Delivery Time:
Negotiable
Brand:
Lin Xing
Product Description
Product Description
Diamond Wire Saw is one the most advanced tool mainly used in quarrying and processing different kinds of natural stones such as Granite, marble, Limestone, Sandstone etc. Also can be used in granite and marble and sand stone block squaring.

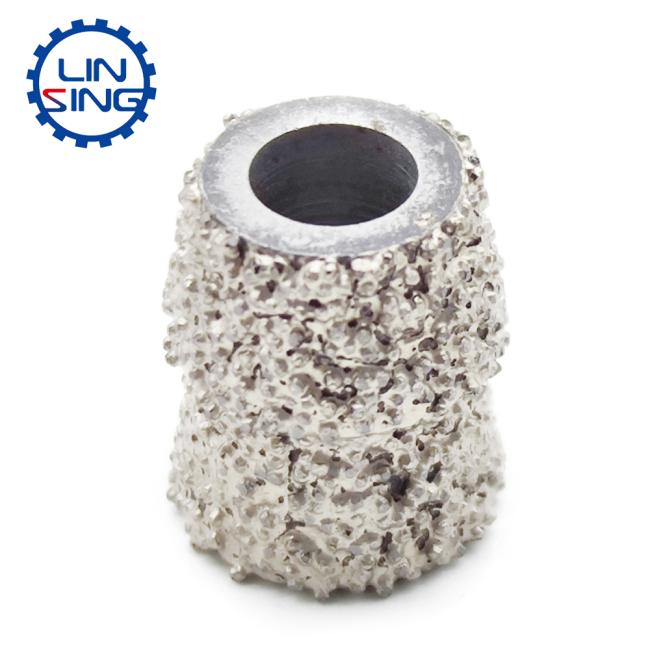

1. Vacuum Brazed Beads come with double arrow design and Pattern-set Diamond on Steel Body to extend tool life and make full use of diamonds for best cutting efficiency;
2. Extra aggressive on Marble and Limestone Quarrying, Block Squaring, Profiling or Slab Cutting;
3. Could be used Wet or dry, best with wet cutting for tool life concern.
2. Extra aggressive on Marble and Limestone Quarrying, Block Squaring, Profiling or Slab Cutting;
3. Could be used Wet or dry, best with wet cutting for tool life concern.
Diamond wire saw fix by rubber wire, the rubber has good flexibility and resistance temperature well, if water is not enough, it also can be worked well. Meanwhile, the rubber can protect the wire saw rope very well and strengthen the wire’s life. Rubber wire itself has strong flexibility, can reduce the cut-in-one-side problem.
Diamond wire saw fix by spring, special for marble quarry, Premium spring,high strength 30/40 synthetic diamond and advanced technology create high performance in marble quarry.it will not limited by working size, it can be used process all kinds of granite, marble slabs, and some special shape surface processing etc.it has high added value,significantly increase the economic benefits.

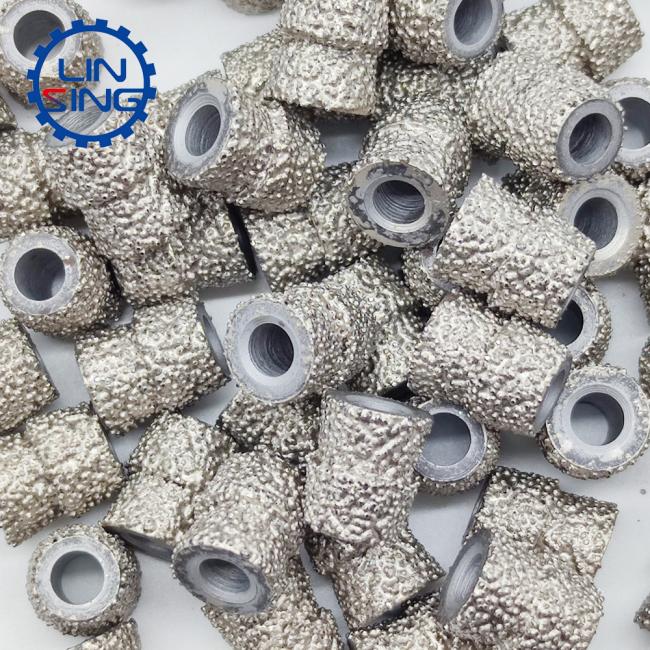

Detailed Images
The most important parameters that affect cutting performance in diamond wire cutting are the wearing on diamond beads and cutting rate during cutting operation.
Wear on diamond beads during cutting peration is one of the main parameters in the economics of marble cutting with diamond wire.
sintered beads with high strength 30/40 synthetic diamond and advanced technology create high performance in stone quarry
Product Presentation
Fast Cutting sintered Diamond Wire Saw Beads
diamond wire saw cutting | |
Rubber,Spring, Plastic,Rubber+Spring,Plastic+Spring | |
40/37/28/33 | |
7.2mm, 8.0mm, 8.5mm, 9.0mm,11.0mm,11.5mm | |
Application | For Stone Quarry |
Sintered,Electroplated,Vaccum Brazed |
Wire saw for Granite quarrying performance parameters
Specification (MM) | Fixing type | Beads No.(pcs/m) | Core Beads diameter (mm) | Cutting material | Line speed (m/s) | cutting speed(m/s) | Wire life (m2/m) |
11.5MM | Rubber | 40/m | 7*11mm 8*11mm | soft granite | 25-30 | 4-6 | 15-25 |
11.5MM | Rubber | 40/m | 7*11mm 8*11mm | middle hard granite | 22-26 | 2-5 | 8-15 |
11.5MM | Rubber | 40/m | 7*11mm 8*11mm | hard granite | 18-23 | 1-2.5 | 4-9 |
Wire saw for Marble quarry performance parameters
Specification (MM) | Fixing type | Beads No.(pcs/m) | Core Beads diameter (mm) | Cutting material | Line speed (m/s) | Cutting speed (m2/h) | Wire life (m2/m) |
11.0 | rubber+spring | 28/30/40 | 8*10 8*11 | soft Marble | 35-40 | 10-20 | 30-55 |
11.0 | rubber+spring | 28/30/40 | 8*10 8*11 | middle hard marble | 33-38 | 8-16 | 15-35 |
11.0 | rubber+spring | 28/30/40 | 8*10 8*11 | hard marble | 30-35 | 5-8 | 10-25 |
Related Products
Application
Company Introduction
LINXING Diamond Tools CO.,LTD factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D,the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.
Exhibition
FAQ
Q1:Are you a factory or trading company?
Q2: How is your product quality?
A. We have strict quality control system . We guarantee our products quality.
Q3: What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation...
Q4: Do you offer free sample?
Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability ofapplication per market.
A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.
Q2: How is your product quality?
A. We have strict quality control system . We guarantee our products quality.
Q3: What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation...
Q4: Do you offer free sample?
Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability ofapplication per market.
