30*9*9 Diamond Segments Quick Cut 1400mm Circular Saw Blade for Mix Marble Cutting
Price:
$0.82/pieces 1000-9999 pieces
MOQ:
1000 pieces
Delivery Time:
Negotiable
Brand:
Linxing
Product Description
Product Description
15% cost-save diamond segments marble sandstone segments tips
Jiangxi Linxing diamond tools co., ltd pays more attention on High quality material, advanced technology and equipment, Mainly material, the diamond quality had been got a great improvement , they can satisfy the needs of production of diamond tools . But we still continue to improves the ability of diamond tools adopt pre-alloyed powder, enhance the holding force of the matrix on the diamond, so that the diamond function is fully played
Product Name | China Linxing High Performance Diamond Segment for Cutting Marble Stone |
Size | 24*8*15mm we can design different size according to customer's demand |
Brazing Method | High Frequency Welding |
Application | cutting marble |
Feature | Stable performance &long lifespan |
Package | paper, carton box, plastic film, sealing tape, etc., or as your requirements |
Direction for use
This segments contains high grade Cu,CO is a chemical elements, it’s mainly material for making heat-resisting alloys, hard-metal alloys,
magnetic alloys. Advange are:1.15% less edged time
2.15% longer life time
3.With cost-effective price
Description of application effect
1. Cutting in high speed without chipping
2. Long lifespan, high cost-effective and stable cutting performance
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening
5. Strict product quality inspection processes
2. Long lifespan, high cost-effective and stable cutting performance
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening
5. Strict product quality inspection processes

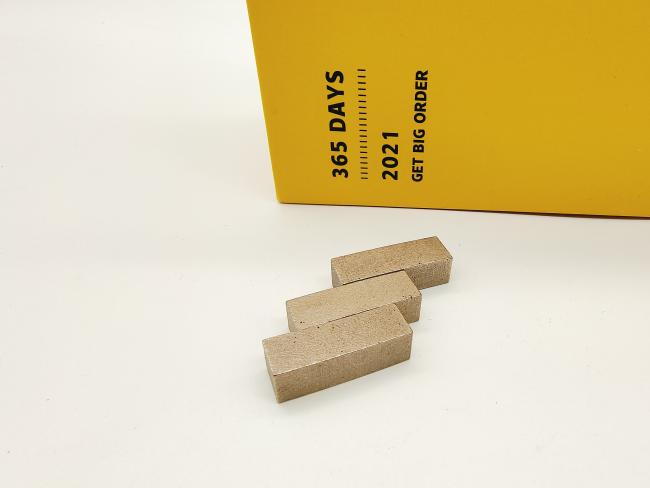

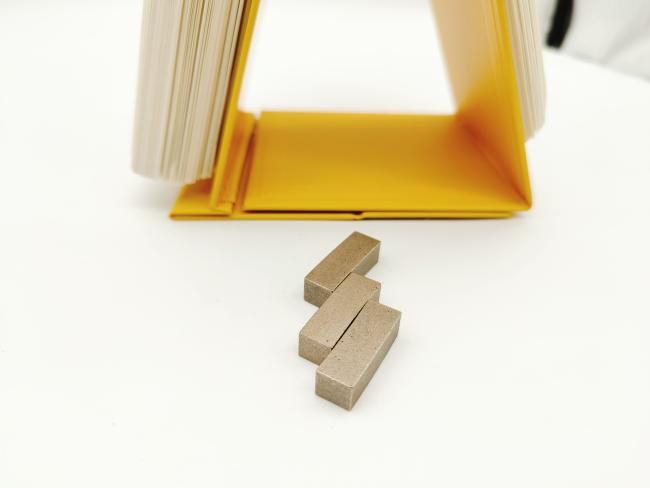

Detailed Images
The gang-saw is more suitable for mass production of thin slabs. In fact, normally there have to be used two (or four, or eight) machines in order to guarantee a continuous material output to the polishing line. As the machine needs about 2 1/2 days for cutting one loading, it is necessary that while one machine is working, the other machine can be unloaded.
Diameter(mm) | Blade core thickness(mm) | Segment Dimension(mm) | Segment No. | |
250 | 2.2 | 40*3.2*10(15,20) | 17 | |
300 | 2.2 | 40*3.2*10(15,20) | 21 | |
350 | 2.2/2.4 | 40*3.4*10(15,20) | 24 | |
400 | 2.6 | 40*3.6*10(15,20) | 28 | |
450 | 2.8/3.0 | 40*4.0*10(15,20) | 32 | |
500 | 3.0/3.2 | 40*4.2*10(15,20) | 36 | |
600 | 3.6/3.8 | 40*4.8*10(15,20) | 36/42 | |
700 | 4.0 | 40*5.2*10(15,20) | 42 | |
800 | 4.5 | 40*6.0*10(15,20) | 46 | |
900 | 5.0 | 24*7.0/6.4*15(20) | 64 | |
1000 | 5.0 | 24*7.0/6.4*15(20) | 70 | |
1200 | 5.5 | 24*8.0/7.4*15(20) | 80 | |
1300 | 6.0 | 24*8.4/7.8*15(20) | 88 | |
1400 | 6.5 | 24*8.4/7.8*15(20) | 92 | |
1600 | 7.2 | 24*9.2/8.4*15(20) | 108 | |
1800 | 7.5 | 24*10.0/9.0*15(20) | 120 | |
2000 | 8.0 | 24*10.5/9.5*15(20,25) | 128 | |
2200 | 9.0 | 24*11.0/10.0*15(20,25) | 132 | |
2500 | 9.0 | 24*11.5/10.5*15(20,25) | 140 | |
3000 | 9.5 | 24*12.5/13.5*20(25,30) | 160 | |
3500 | 9.5 | 24*13.5/14.5*20(25,30) | 180 |
Related Products
Application
Packing&Shipping
Packing Details : paper, carton box, plastic film, sealing tape, etc., or as your requirements
Delivery Details : normally within one week, according to the type and the quantity of diamond segments.
Delivery Details : normally within one week, according to the type and the quantity of diamond segments.
Company Introduction
LINXING Diamond tools factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D, the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.
Our service
Quality makes achievements, service creats future!
FAQ
Q1:Are you a factory or trading company?
A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.
Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.
Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..
