6N Series SMD 7050 Crystal Oscillator Frequency 1MHz To 220MHz Low Power Consumption High Stability
Price:
Negotiate
MOQ:
1000 pcs
Delivery Time:
2~4weeks
Brand:
SJK
Product Description
6N Series SMD 7050 Crystal Oscillator Frequency 1MHz to 220MHz Low Power Consumption High Stability
Features:
- 7050 size, 1.5mm high. Miniature and lightweight SMD crystal oscillators
- Tri-state function
- Supply voltage: 1.8V~3.3V, 5.0V
- CMOS output type, available frequency range: 1MHz~220MHz
- Low jitter provides for high performance
- Application for server. Gb ethernet, HDTV, DVC, Test equipment,PC, PC peripherals, Automotive multimedia device, etc
- RoHS Compliant /Pb Free
Electronic Specifications:
| Item | 6N Series SMD 7050 Crystal Oscillators |
| Output Type | CMOS |
| Load | 15pF, or specify |
| Frequency Range | 1MHz To 220MHz |
| Supply Voltage | 1.8V~3.3V, 5.0V |
| Frequency Stability (All Condition) | ±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify |
| Current Consumption | 10mA max. |
| Stand-by Current | 10µA max. |
| Symmetry | 45~55% |
| 0 Level Output Voltage (VOL) | 0.1 Vcc max. |
| 1 Level Output Voltage (VOH) | 0.9 Vcc min. |
| Rise Time / Fall time | 10ns max. |
| OE Pin 0 Level Output Voltage (VIL) | 0.2 Vcc max. |
| OE Pin 1 Level Output Voltage (VIH) | 0.8 Vcc min. |
| Start-up Time | 1ms max. |
| Operating Temperature | -40~+85ºC, or specify |
| Storage Temperature | -55~+125ºC |
| Phase Jitter | 1ps max. |
| Package Size | 7.0*5.0*1.5 mm |

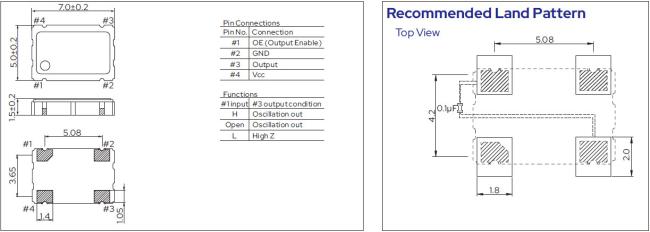

Dimensions:
