6MH Series DIP8 Crystal Oscillator With Symmetry Of 40-60% High Frequency
Price:
Negotiate
MOQ:
500 pcs
Delivery Time:
2~4weeks
Brand:
SJK
Product Description
6MH Series DIP8 Crystal Oscillator with Symmetry of 40-60% for High Frequency and Stability Applications
Features:
- All metal welded half-size (DIP-8) package, size with 12.7*12.7*5.3mm.
- Tri-state function
- Supply voltage: 3.3V /5.0V
- Available frequency range: 0.25MHz To 180MHz
- Low phase noise and jitter
- Application for test equipments, Electronic instruments, Telecommunications, Avionics, Smart grid, etc
- RoHS Compliant /Pb Free
Electronic Specifications:
| Item | 6MH Series DIP8 Crystal Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Frequency Range | 0.25MHz to 180MHz |
| Supply Voltage | 3.3V / 5V |
| Frequency Stability (All Condition) | ±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify |
| Current Consumption | 45mA max. |
| Stand-by Current | 20µA max. |
| Symmetry | 40~60% |
| 0 Level Output Voltage (VOL) | 0.1 Vcc max. |
| 1 Level Output Voltage (VOH) | 0.9 Vcc min. |
| Rise Time /Fall Time | 5.0ns max. |
| OE 0 Level Output Voltage (VIL) | 0.2 Vcc max. |
| OE 1 Level Output Voltage (VIH) | 0.8 Vcc min. |
| Start-up Time | 5.0ms max. |
| Operating Temperature | -40°C To +85°C, or specify |
| Storage Temperature | -55°C To +125°C, or specify |
| Phase Jitter | 1pS max. |
| Package Size | 12.7*12.7*5.3mm |

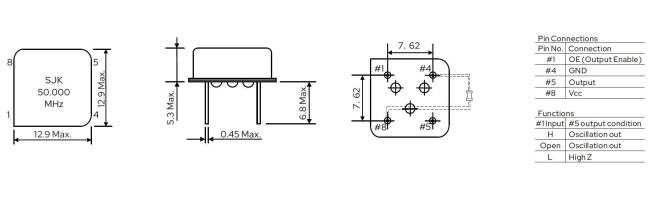

Dimensions:
