3225 SMD TCXO With 38.4MHz 3.3V Clipped Sinewave Output
Price:
negotiable
MOQ:
3000pcs
Delivery Time:
4-6 wks
Brand:
SJK
Product Description
3225 SMD TCXO with 38.4MHz 3.3V Clipped Sinewave Output
Features
LVCMOS output logic, frequency range from 10MHz to 60MHz
3225 size, 1.0mm high SMD TCXO
Low voltage operations: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Frequency stability: ±2ppm~±5ppm
3-state function
Automatic mounting and reflow soldering
Applications: Mobile Phone, Wireless Communications, IoT, GPS, WLAN, and more
RoHS Compliant & Pb-Free
Specifications
| Type | 8W Series SMD TCXO | ||
| Output Type | CMOS | ||
| Output Load | 15pF, or specify | ||
| Supply Voltage | 1.8~3.3V | ||
| Frequency Range | 10~60MHz | ||
| Supply Current | 10mA Max. | ||
| Output Level | 0.1Vcc /0.9Vcc | ||
| Frequency Stability | Tolerance | ±2.0ppm Max. (after 2 reflows ) | |
| vs Temperature | ±2ppm~±5ppm | ||
| vs Aging | ±1.0ppm Max./Year | ||
| Duty Cycle | 45~55% | ||
| RMS Phase Jitter | 1pS Max. | ||
| Rise /Fall Time | 8ns Max. | ||
| Start-up Time | 5ms Max. | ||
| Operating Temperature | -40~+85℃, or specify | ||
| Phase Noise @26MHz | 100Hz | -110dBc/Hz | |
| 1KHz | -130dBc/Hz | ||
| 10KHz | -145dBc/Hz | ||
| Packing Unit | 3000pcs./Reel | ||

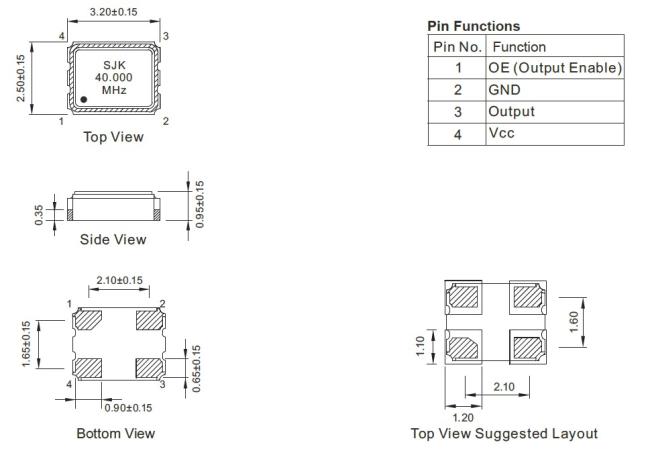

Dimensions [mm]
