SMD 5032 TCXO With Clipped Sinewave Output 10~52MHz 1.8-3.3V
Price:
negotiable
MOQ:
1000pcs
Delivery Time:
4-6 wks
Brand:
SJK
Product Description
SMD 5032 TCXO With Clipped Sinewave Output 10~52MHz 1.8-3.3V
Features
Typical 5.0×3.2×1.5mm ceramic SMD package.
CMOS and clipped sine wave (without DC-cut capacitor) output.
Output frequency range: 10MHz to 52MHz
Temperature stability: ±0.05ppm~±0.5ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Base Station, Stratum 3, Femtocell, WLAN, Wireless Communications, etc
RoHs Compliant & Pb-Free
Specifications
| Type | 5T Series SMD TCXO / VC-TCXO | ||
| Output Type | Clipped Sine wave | CMOS | |
| Output Load | 10KΩ//10pF | 15pF, or specify | |
| Frequency Range | 10~52MHz | ||
| Supply Voltage | 3.3V /5.0V | ||
| Supply Current | 3.5mA Max. | 8mA Max. | |
| Output Level | 0.8Vp-p Min. | 0.1Vcc/0.9Vcc | |
| Frequency Stability | Tolerance | ±2.0ppm Max. | |
| vs Temperature | ±0.05ppm~±0.5ppm | ||
| vs Supply Voltage (Vcc±5%) | ±0.3ppm Max. | ||
| vs Load (Load varies±10%) | ±0.2ppm Max. | ||
| vs Aging | ±1.0ppm Max. | ||
| Auto Frequency Control (AFC) Range (VCTCXO) | ±5ppm~±10ppm (1.5±1V) | ||
| Start-up Time | 2ms Max. | ||
| Operating Temperature | -40~+85℃, or specify | ||
| Duty Cycle | 45~55% | ||
| Phase Noise @10MHz | 100KHz | -125dBc/Hz | |
| 1KHz | -145dBc/Hz | ||
| 10KHz | -150dBc/Hz | ||
| Packing Unit | 1000pcs./Reel | ||

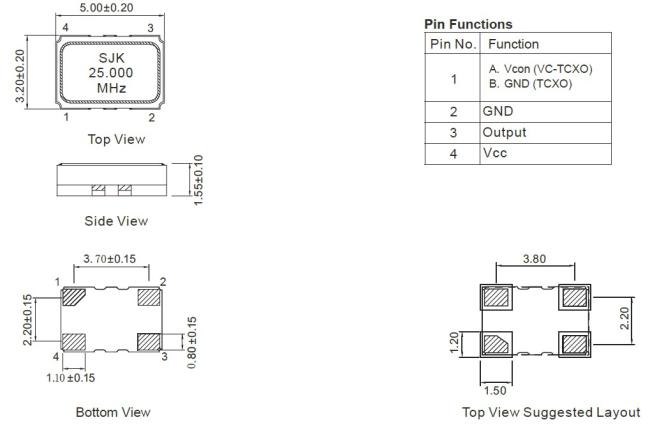

Dimensions [mm]
