6026 SMD SAW Resonator 310~433.92MHz 6.0x2.6×1.2mm ±75KHz
Price:
negotiable
MOQ:
1000pcs
Delivery Time:
4-6 wks
Brand:
SJK
Product Description
6026 SMD SAW Resonator 310~433.92MHz 6.0x2.6×1.2mm ±75KHz
|
Item |
Minimum |
Typical |
Maximum |
Unit |
||
|
Center Frequency |
Absolute Frequency |
fc |
314.925 |
315.00 |
315.075 |
MHz |
|
Tolerance from 315.00MHz |
△fc |
±75 |
KHz |
|||
|
Insertion Loss(min) |
IL |
1.6 |
2.0 |
dB |
||
|
Quality Factor |
Unloaded Q |
QU |
13991 |
|||
|
50Ω Loaded Q |
QL |
2605 |
||||
|
Frequency Aging |
Absolute Value during the First Year |
|fA| |
≤10 |
ppm/yr |
||
|
DC Insulation Resistance between Any Two Pins |
1.0 |
MΩ |
||||
|

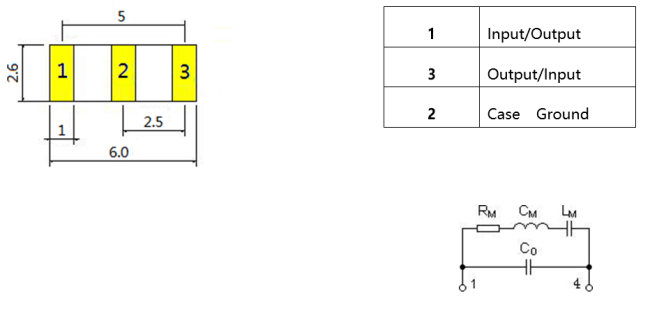

RF Equivalent RLC Model |
Motional Resistance |
RM |
22.8 |
26 |
Ω |
|
|
Motional Inductance |
LM |
161.8 |
µH |
|||
|
Motional Capacitance |
CM |
1.57 |
fF |
|||
|
Static Capacitance |
C0 |
3.2 |
pF |
|||
