Dip Type 3 Pins 49T Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth

Price Negotiable
Price: negotiable
MOQ: 1000pcs
Delivery Time: 4-6 wks
Brand: SJK
Product Description

Dip Type 3 Pins 49T Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth







Features




Low insertion loss
• High selectivity
• Good inter-modulation and high stability over a wide
temperature range
• Excellent guaranteed attenuation
• Application for VHF & UHF radio, Wireless telemetry, Pagers,
Wireless LAN, Radio communications, Communications, etc,
• RoHS Compliant /Pb Free

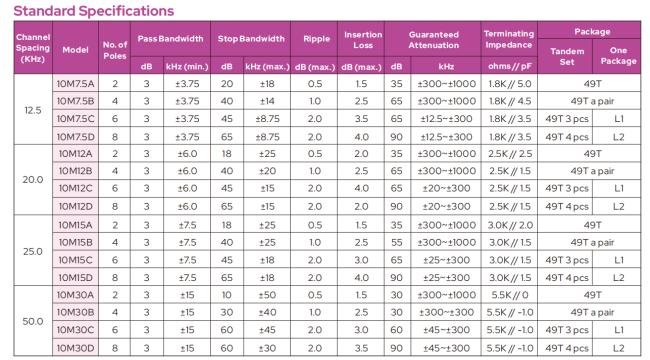

Specifications

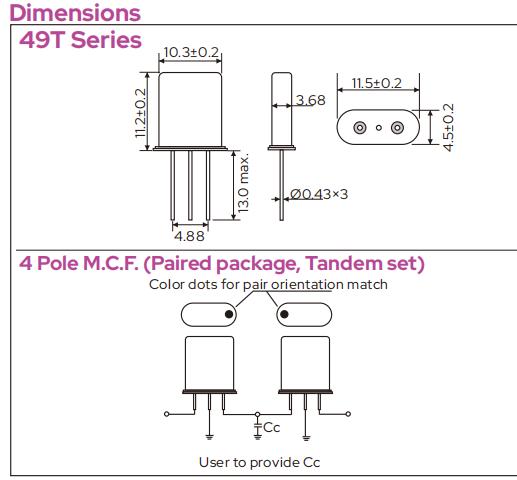

Dimensions [mm]
