Stainless Steel 304 316 Steel Dual Plate Check Valve with Customizable Port Size
Price:
$10.00/sets 1-4 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
MINGYI
Product Description
Product Description
Dual plate check valve, for mounting directly between flanges according to DIN. Maintenance not required. For liquids and gases in the industrial range, general services, water treatment. Not suitable for media with solid components.
Highlight:
·Full Vulcanized liner enhance the life circle from, prevent body from corrosion
·Low weight and short laying length saves initial cost, requires less space, and is easier to install
·Independent springs provide quick-closing, non-slam shut off for reduced water hammer potential
·Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation.
·Contoured body provides a short and straight flow path with minimal turbulence.
Specifications:
Body Materials: Cast Iron, Ductile Iron, Stainless Steel
Disk Materials: Ductile Iron, Stainless Steel
Stem Materials: Stainless Steel
Spring Materials: Stainless Steel
Seat Materials: BUNA-N(NBR& Nitrile), EPDM
Spacer Materials:PTFE
Applications: Potable Water, Wastewater, HVAC, Irrigation, Metallurgy, Power Generation, Marine, Oil & Gas, Mining
Material availability depends on valve size & series. Other materials are available. Please consult to us or your local AVANNTO representative for your specific condition.

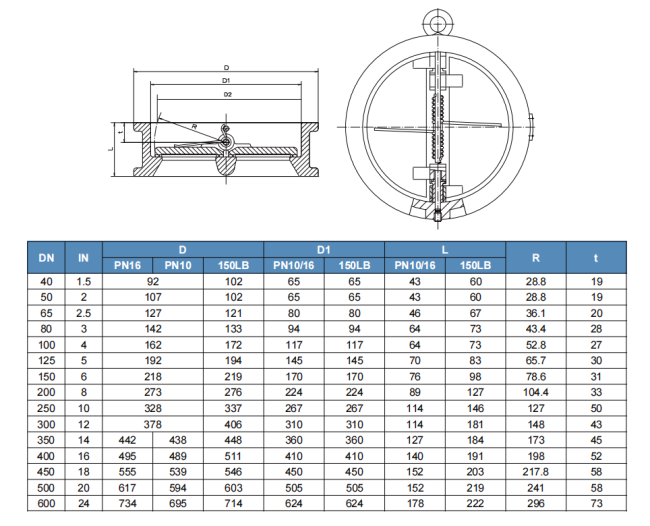

Nominal diameter:
DN 40 - DN 1200
Face-to-face:
EN 558-1
ISO 5752
API 594
Flange accommodation:
EN 1092 PN 10/16
ASME B16.5 Class 150/ B16.47
Flange Surface Design:
EN 1092 Form A /B
ASME RF, FF
Tightness check:
EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range:
-10 °C to + 130°C (depending on pressure, medium and material)
Max. Operating pressure:
max. 16 bar
Highlight:
·Full Vulcanized liner enhance the life circle from, prevent body from corrosion
·Low weight and short laying length saves initial cost, requires less space, and is easier to install
·Independent springs provide quick-closing, non-slam shut off for reduced water hammer potential
·Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation.
·Contoured body provides a short and straight flow path with minimal turbulence.
Specifications:
Body Materials: Cast Iron, Ductile Iron, Stainless Steel
Disk Materials: Ductile Iron, Stainless Steel
Stem Materials: Stainless Steel
Spring Materials: Stainless Steel
Seat Materials: BUNA-N(NBR& Nitrile), EPDM
Spacer Materials:PTFE
Applications: Potable Water, Wastewater, HVAC, Irrigation, Metallurgy, Power Generation, Marine, Oil & Gas, Mining
Material availability depends on valve size & series. Other materials are available. Please consult to us or your local AVANNTO representative for your specific condition.
Nominal diameter:
DN 40 - DN 1200
Face-to-face:
EN 558-1
ISO 5752
API 594
Flange accommodation:
EN 1092 PN 10/16
ASME B16.5 Class 150/ B16.47
Flange Surface Design:
EN 1092 Form A /B
ASME RF, FF
Tightness check:
EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range:
-10 °C to + 130°C (depending on pressure, medium and material)
Max. Operating pressure:
max. 16 bar
Specification
item | value |
Warranty | 1 years |
Type | Check Valve |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Tianjin | |
Brand Name | MINGYI |
Application | INDUSTRIAL |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Power | Hydraulic |
Media | Gas |
Port Size | with customer's requirements |
Structure | Diaphragm |
Company Profile
VALVE DISC
Production Process
Advantage
Packing & Delivery
We use wooden cases to pack the goods, and can be customized according to customer's requirements, to ensure that the goods will not be damaged.
FAQ
1. who are we?
We are based in Tianjin, China, start from 2021,sell to South Asia(75.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
tank heads,shaft,OEM machining service,steam separator,gelatin equipment
4. why should you buy from us not from other suppliers?
More than 20 years experience in various of mechanical products. Support OEM, we can make the products as clients' requirement. Competitive price and high quality has been recognized by industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Tianjin, China, start from 2021,sell to South Asia(75.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
tank heads,shaft,OEM machining service,steam separator,gelatin equipment
4. why should you buy from us not from other suppliers?
More than 20 years experience in various of mechanical products. Support OEM, we can make the products as clients' requirement. Competitive price and high quality has been recognized by industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
