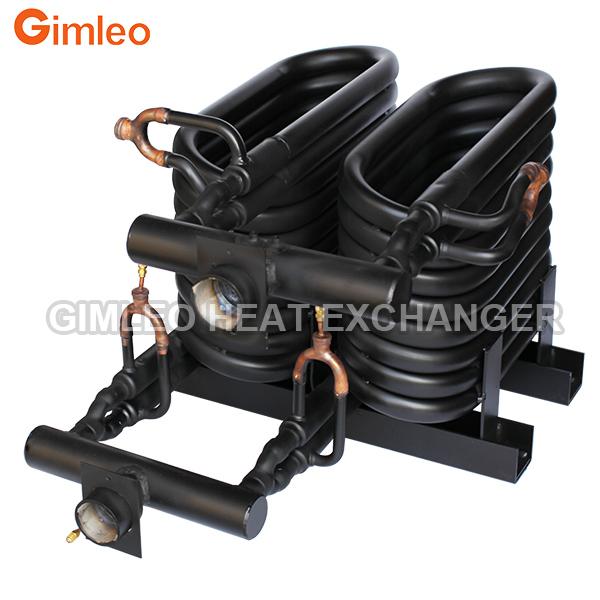

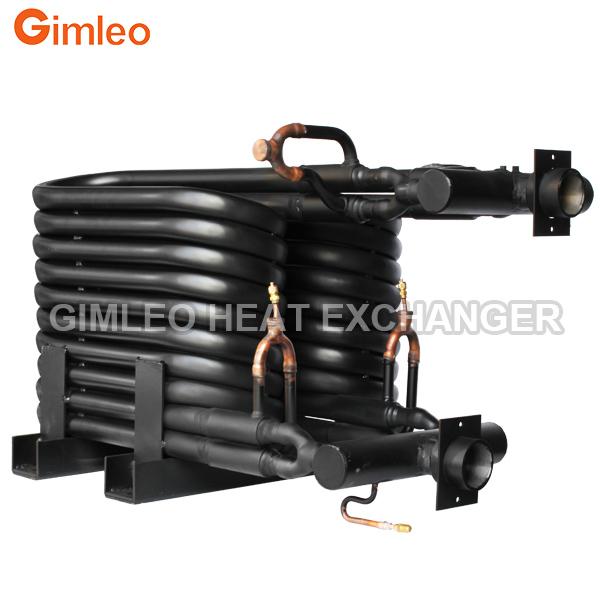

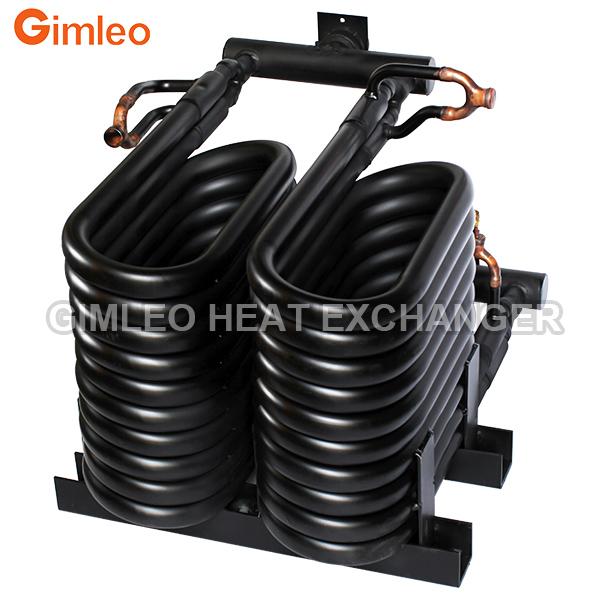

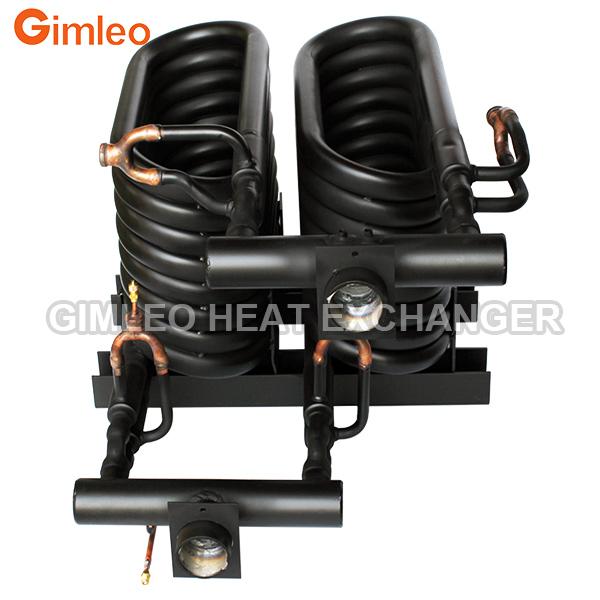

20HP 70KW 240000 BTU CONDENSER EVAPORATOR TUBE in TUBE HEAT EXCHANGER COAXIAL HEAT EXCHANGER for HVACR
20HP 88KW 300000 BTU CONDENSER EVAPORATOR TUBE IN TUBE HEAT EXCHANGER COAXIAL HEAT EXCHANGER FOR HVACR
Features:
-Patented, Revolutionary Technology
-Innovative Design
-It is widely applied to air/water source heat pump,water cooler compressor unit etc.

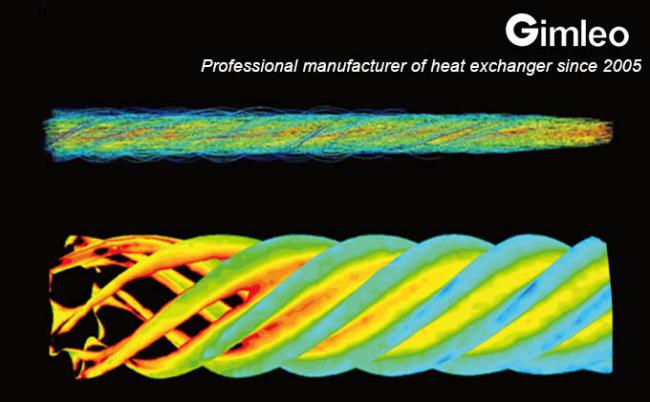

-Structural optimization technology makes fluid flow more efficient and higher heat exchanging performance
Specifications:
| Model | Heating capacity (KW) |
Water flow (M³/h) |
Water connection inch |
Refrigerant inlet (mm) |
Refrigerant outlet (mm) |
Length (mm) |
Width (mm) |
Height (mm) |
| GY-0040C | 4 | 0.7 | 3/4" | 12.7 | 9.52 | 313 | 140 | 140 |
| GY-0060C | 6 | 1.0 | 3/4" | 12.7 | 9.52 | 325 | 140 | 170 |
| GY-0092C | 9.2 | 1.6 | 3/4" | 12.7 | 9.52 | 313 | 140 | 200 |
| GY-0135C | 13.5 | 2.3 | 1" | 16 | 9.52 | 313 | 140 | 257 |
| GY-0154C | 15.4 | 2.6 | 1" | 16 | 12.7 | 555 | 245 | 222 |
| GY-0200C | 20 | 3.4 | 1" | 19 | 12.7 | 664 | 245 | 222 |
| GY-0228C | 22.8 | 3.9 | 1" | 19 | 12.7 | 660 | 280 | 262 |
| GY-0400C | 40 | 6.9 | 1.2" | 19 | 16 | 690 | 245 | 444 |
| GY-0440C | 44 | 7.6 | 1.2" | 19 | 16 | 700 | 280 | 524 |
If you're interested in our products,click here and send inquiry to us.
What is TUBE-IN-TUBE HEAT EXCHANGER?
Tube-in-tube heat exchangers or coaxial heat exchangers consist of two tubes, an inner and an outer coiled together. This unique, compact design prevents thermal fatigue, increases efficiency and reduces the overall size. It is ideal for high temperature, high pressure and low flow applications such as water chillers and in. Tube-in-Tube heat exchangers are specifically designed for uses in water cooled condensers, water chillers and in water source heat pumps. The design is being used by major OEM’s around the world and in the ever expanding wholesale replacement market. Simplicity of design and installation makes this product ideal in both markets. At Gimleo, we offer product development and custom designed tube-in-tube coils for your HVACR systems
Pls feel free to contact us! We are always at your service!

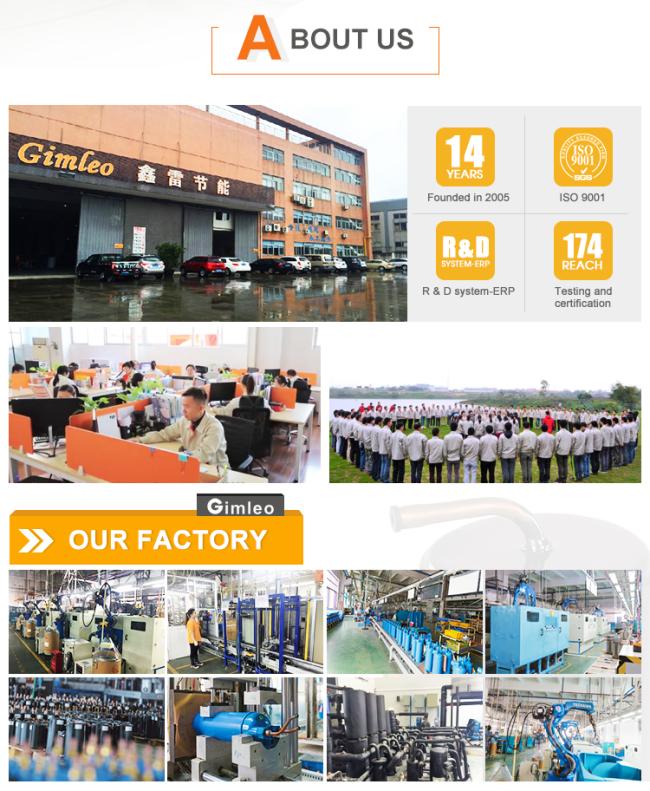

Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city , a professional manufacturer of energy- saving heat exchanger equipment integrated with R& D, manufacture, sales and service.
Gimleo, founded in 2005, is based on high tech and high quality with advanced manufacturing facilities, testing equipment along with many high-educated professional staff; especially we’ve established a heat exchange capacity-testing lab ahead of others in the industry.

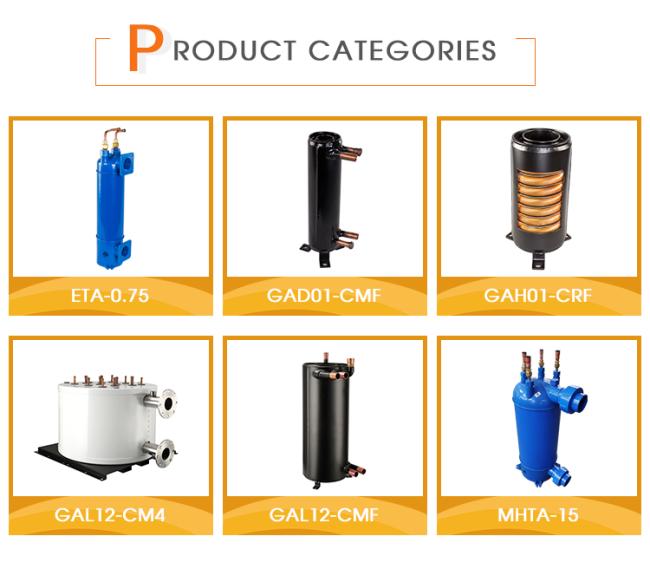

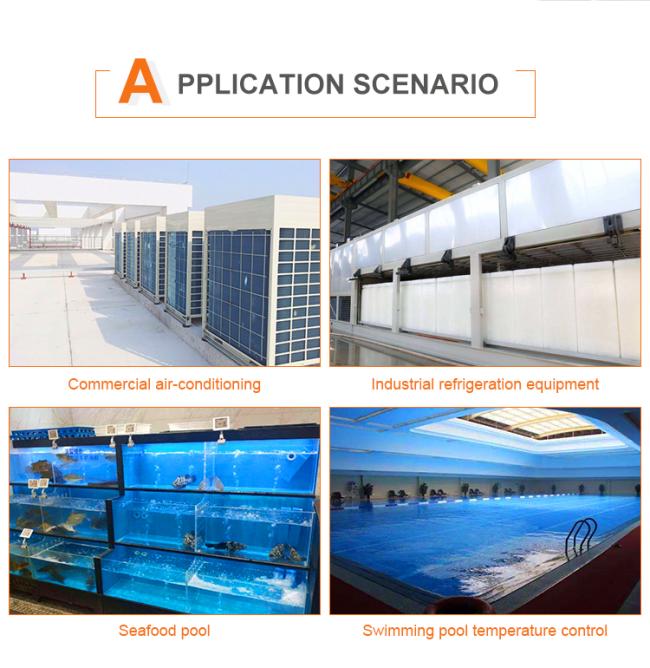

Our products cover high efficiency tube in shell heat exchanger, titanium heat exchanger, nickel-copper tube in shell heat exchanger, coaxial heat exchanger, etc. which can be widely used in swimming pool equipment, aquarium chiller, marine refrigerant units, air source heat pump, water source heat pump, aquaculture, electroplating industry and heat recovery from the waste water or exhaust gas. We deeply realize the importance of scientific management and technical innovations. Firstly Gimleo has passed the ISO 9001 improving and strengthening the entire quality control process from R& D to sales. Meanwhile, the company establishes the perfect information platform for the whole manufacturing and R& D system-ERP. In 2016 .We had passed 174 environmental REACH testing and certification.
After several years of development, Gimleo has become a leading domestic enterprise in manufacturing heat exchangers, in great cooperating relationships with about 150 companies.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, CNF, CPT, CIP, DDU, DDP etc .
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% tested before delivery .
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
