High Quality XLPE Insulated ABC Cable Duplex #6 awg
Product: Duplex Service Drop ACSR Neutral-Messenger Aluminum Conductor
Applications(Duplex cable)
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Construction

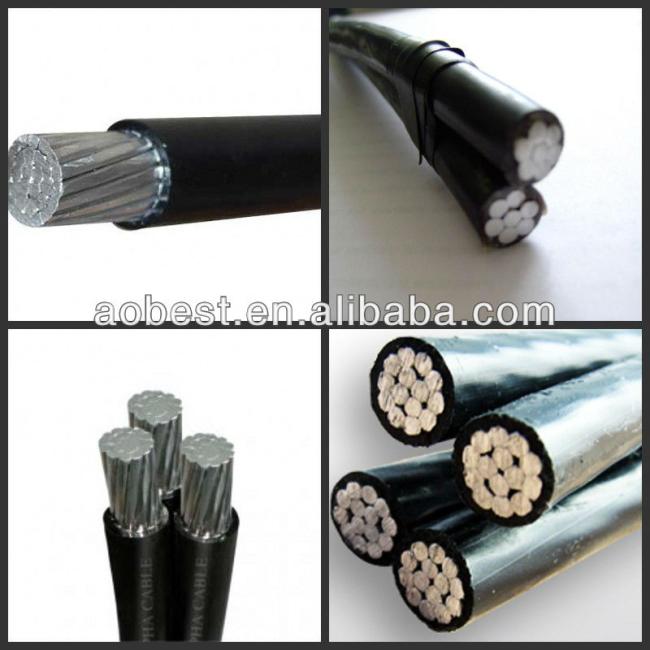

Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand ACSR neutral messenger.
Standards
- B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
- B-231 Aluminum Conductors, Concentric-Lay-Stranded.
- B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
- B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
- B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
- Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
| Items | Phase Conductor Size AWG | Phase Conductor Stranding | Phase Conductor Insulation Thickness | Bare Neutral Messenger Size AWG | Bare Neutral Strand | Bare Neutral Messenger Breaking Strength | Weight Per 1000ft-XLP | Weight Per 1000ft-Poly | Rating-XLP | Rating-Poly |
| Setter | 6 | Solid | 45 mls | 6 | 6/1 | 1190 Lbs | 75.0 Lbs | 73.2 Lbs | 70 Amps | 70 Amps |
| Shepherd | 6 | 7/w | 45 mls | 6 | 6/1 | 1190 Lbs | 78.3 Lbs | 74.6 Lbs | 70 Amps | 70 Amps |
| Eskimo | 4 | Solid | 45 mls | 4 | 6/1 | 1860 Lbs | 113.7 Lbs | 111.6 Lbs | 90 Amps | 90 Amps |
| Terrier | 4 | 7/w | 45 mls | 4 | 6/1 | 1860 Lbs | 118.7 Lbs | 113.6 Lbs | 90 Amps | 90 Amps |
| Chow | 2 | 7/w | 45 mls | 2 | 6/1 | 2850 Lbs | 181.7 Lbs | 174.7 Lbs | 120 Amps | 120 Amps |
| Bull | 1/0 | 19/w | 60 mls | 1/0 | 6/1 | 4380 Lbs | 288.7 Lbs | 280.3 Lbs | 160 Amps | 160 Amps |
