ACSR conductor 50/15 or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary
Price:
$200.00 - $888.00/kilometers
MOQ:
2 kilometers
Delivery Time:
Negotiable
Brand:
Aobest
Product Description

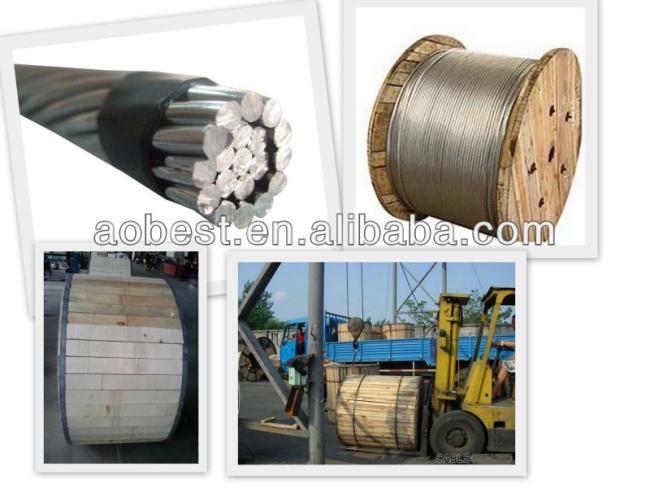

Factory Direct Overhead Conductor ACSR Conductor Cable ACSR conductor or aluminum conductor steel reinforced is used as bare overhead transmission and as primary and secondary disribution cable
1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182
2). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels.
The data sheets below show partial ACSR technical characters based on standard DIN 48204:
| Code name | Cross section | No.of wires | Wire diameter | Diameter | Mass per unit length | Rated strength | DC resistance | |||||
| Al | Steel | Total | Al | Steel | Core | Total | ||||||
| mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | ohm/km | |
| 25/4 | 23.9 | 3.98 | 27.8 | 6 | 1 | 2.25 | 2.25 | 2.25 | 6.75 | 96.3 | 8.95 | 1.2012 |
| 35/6 | 34.4 | 5.73 | 40.1 | 6 | 1 | 2.70 | 2.70 | 2.70 | 8.1 | 138.7 | 12.37 | 0.8342 |
| 44/32 | 44.0 | 31.7 | 75.6 | 14 | 7 | 2.00 | 2.40 | 7.20 | 11.2 | 369.3 | 44.24 | 0.6574 |
| 50/8 | 48.3 | 8.04 | 56.3 | 6 | 1 | 3.20 | 3.20 | 3.20 | 9.6 | 194.8 | 16.81 | 0.5939 |
| 50/30 | 51.2 | 29.8 | 81.0 | 12 | 7 | 2.33 | 2.33 | 6.99 | 11.7 | 374.7 | 42.98 | 0.5644 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26 | 7 | 2.15 | 1.67 | 5.01 | 13.6 | 380.6 | 34.93 | 0.3060 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12 | 7 | 3.20 | 3.20 | 9.60 | 16.0 | 706.8 | 77.85 | 0.2992 |
| 105/75 | 105.7 | 75.5 | 181.2 | 14 | 19 | 3.10 | 2.25 | 11.30 | 17.5 | 885.3 | 105.82 | 0.2742 |
| 120/20 | 121.6 | 19.8 | 141.4 | 26 | 7 | 2.44 | 1.90 | 5.70 | 15.5 | 491.0 | 44.50 | 0.2376 |
| 120/70 | 122.1 | 71.3 | 193.4 | 12 | 7 | 3.60 | 3.60 | 10.80 | 18.0 | 894.5 | 97.92 | 0.2364 |
| 125/30 | 127.9 | 29.8 | 157.8 | 30 | 7 | 2.33 | 2.33 | 6.99 | 16.3 | 587.0 | 56.41 | 0.2260 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26 | 7 | 2.70 | 2.10 | 6.30 | 17.1 | 600.8 | 53.67 | 0.1940 |
| 170/40 | 171.8 | 40.1 | 211.8 | 30 | 7 | 2.70 | 2.70 | 8.10 | 18.9 | 788.2 | 74.89 | 0.1683 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26 | 7 | 3.00 | 2.33 | 6.99 | 19.0 | 741.0 | 65.27 | 0.1571 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26 | 7 | 3.20 | 2.49 | 7.47 | 20.3 | 844.1 | 73.36 | 0.1381 |
| 210/50 | 212.1 | 49.5 | 261.5 | 30 | 7 | 3.00 | 3.00 | 9.00 | 21.0 | 973.1 | 92.46 | 0.1363 |
| 230/30 | 230.9 | 29.8 | 260.8 | 24 | 7 | 3.50 | 2.33 | 6.99 | 21.0 | 870.9 | 72.13 | 0.1250 |
| 240/40 | 243.1 | 39.5 | 282.5 | 26 | 7 | 3.45 | 2.68 | 8.04 | 21.8 | 980.1 | 85.12 | 0.1188 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26 | 7 | 3.86 | 3.00 | 9.00 | 24.4 | 1227.3 | 105.09 | 0.0949 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54 | 7 | 2.68 | 2.68 | 8.04 | 24.1 | 1151.2 | 96.80 | 0.0949 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48 | 7 | 3.00 | 2.33 | 6.99 | 25.0 | 1171.2 | 91.71 | 0.0852 |
| 380/50 | 381.7 | 49.5 | 431.2 | 54 | 7 | 3.00 | 3.00 | 9.00 | 27.0 | 1442.5 | 121.30 | 0.0758 |
| 435/55 | 434.3 | 56.3 | 490.6 | 54 | 7 | 3.20 | 3.20 | 9.60 | 28.8 | 1641.3 | 133.59 | 0.0666 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48 | 7 | 3.45 | 2.68 | 8.04 | 28.7 | 1549.1 | 116.05 | 0.0644 |
| 490/65 | 490.3 | 63.6 | 553.8 | 54 | 7 | 3.40 | 3.40 | 10.20 | 30.6 | 1852.9 | 150.81 | 0.0590 |
| 510/45 | 510.5 | 45.3 | 555.8 | 48 | 7 | 3.68 | 2.87 | 8.61 | 30.7 | 1765.3 | 113.31 | 0.0566 |
| 550/70 | 549.7 | 71.3 | 620.9 | 54 | 7 | 3.60 | 3.60 | 10.80 | 32.4 | 2077.2 | 166.32 | 0.0526 |
| 570/40 | 571.2 | 39.5 | 610.6 | 45 | 7 | 4.02 | 2.68 | 8.04 | 32.2 | 1887.1 | 136.40 | 0.0506 |
| 650/45 | 653.5 | 45.3 | 698.8 | 45 | 7 | 4.30 | 2.87 | 8.61 | 34.4 | 2159.9 | 156.18 | 0.0442 |
