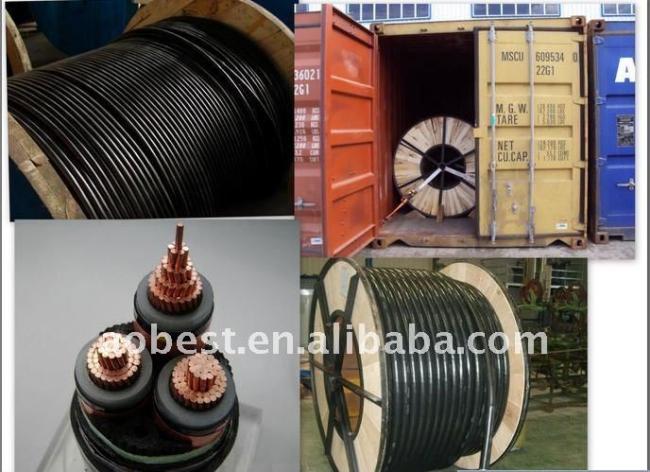

Hot Sale 3*50mm2 33KV XLPE Steel Armored Cable
33kv XLPE Insulated Steel Wire Armoured SWA Power Cable YJV32
1.Product advantage
A. Excellent electric properties and chemical resistance
B. Simple construction, easy to operate, small overall diameter, light weight and installation irrespective of drop in elevation.
C. Rated voltage U0/U 0.6/1KV. 1.8/3kV 3.6/6kV 6/6kV 6/10kV 8.7/10kV 8.7/15kV 12/20kV 21/35kV 26/35kV
2.Service characteristics
The long-tem permissible operating temperature of the conducter shall be 90°c
The conductor temperature in short circuit; lower than 250°c,lasting time:lower than 5S
Min.allowable bending radius
20times earble overall diameter, for single core cables
15times cable overall diameter .for multi core cables
The ambient temperature for cable installation shall be not less than 0°c
The cable may be installed irrespective the drop in elevati
3.Cable type
| TYPE | Description | Application | |
| Cu core | Al Core | ||
| YJV | YJLV | Cu or Al conductor XLPE insulated PVC sheathed power cable | Installed in indoor/outdoor tunnel. cable trench or buried in loose soil. Single core cable is not allowed to be installed in magnetic conduit |
| YJY | YJLY | Cu or Al conductor XLPE insulated PE sheathed power cable | |

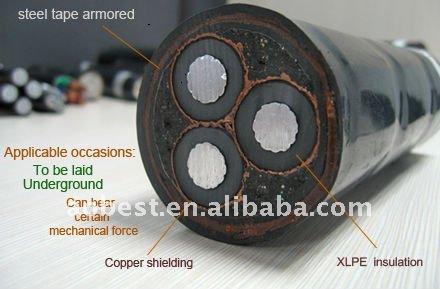

| YJV22 | YJLV22 | Cu or Al conductor sheathed power cable XLPE insulated steel tape armoured PVC sheathed power cable | Installed outdoors or buried. the cable may endure external mechanical force |
| YJV23 | YJLV23 | Cu or Al conductor XLPE insulated steel tape armoured PVC sheathed power cable | / |
| YJV32 | YJLV32 | Cu or Al conductor XLPE insulated fine steel wire armoured PVC sheathed power cable | Installed in shaft ,water or where with high drop in elevation .the cable may endure external mechanical force and certain pulling force |
| YJV33 | YJLV33 | Cu or Al conductor XLPE insulated armoured PE sheathed power cable | / |
| YJV42 | YJLV42 | Cu or Al conductor XLPE insulated armoured PVC sheathed power cable | Installed in shaft, undersea or where with high drop in elevation. the cable my endure high pressure and pulling force |
| YJV43 | YJLV43 | Cu or Al conductor XLPE insulated thick steel wire armoured PE sheathed power cable | / |
4.Type and size
| Type | Nominal cross-sectional area | |||||
| Single-core | 2-core | 3-core | 4-core | 5-core | ||
| YJV ZR-YJV | YJLV ZR-YJLV | 1.5-800 | 1.5-300 | 1.5-300 | 1.5-300 | 1.5-300 |
| YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
| YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
