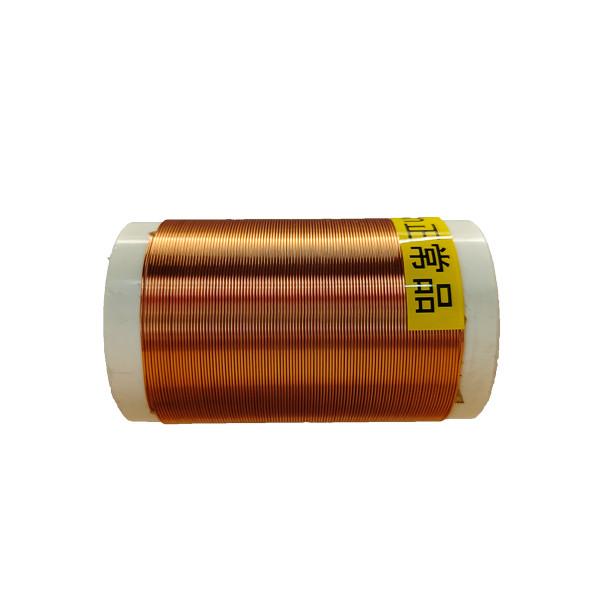

AWG 46-10 UEWN U3 overcoat polyamide enamelled wire For general motor Thermal class 130
Price:
Copper price plus processing fee plus freight
MOQ:
The MOQ varies according to the size of the specification
Delivery Time:
3-5 work days
Brand:
PEWSC
Product Description
U2 and U3 are double-layer and triple-wound respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.UEWN is a type of enamelled wire with polyurethane insulation and a nylon outer layer. It has strong mechanical strength and heat resistance, and is widely used in motors, transformers and electronic equipment. UEWN can withstand high ambient temperatures and has good insulation properties, which can effectively prevent short circuits.
It is widely used for high speed coiling processing,general motor.
| JIS---3種 | ||||||||||||||
| Unit﹕mm | ||||||||||||||
| Diameter of Conduct |
Conductor Control Benchmarks |
OD Control Benchmarks |
Specification Boundaries |
Conductor Resistance 20℃ (Ω/KM) |
Insulation breakdownvoltage (v) |
Min Elongation (%) |
Max. Springiness (°) |
Resistance to abrasion |
||||||
| Lower Limit |
Upper Limit |
Lower Limit |
Median | Upper Limit |
Min. Increase in Diameter |
Max. Finished overall Diameter |
JIS | AWG | Average | Minimum | ||||
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
