Container Mast 4.5m 5 Ton Diesel Forklift Truck With Cabin Heater Sideshift
Container mast 4.5m 5T diesel forklift truck with cabin heater sideshift
Main information:
Product name: 5.0Ton diesel counter balance forklift

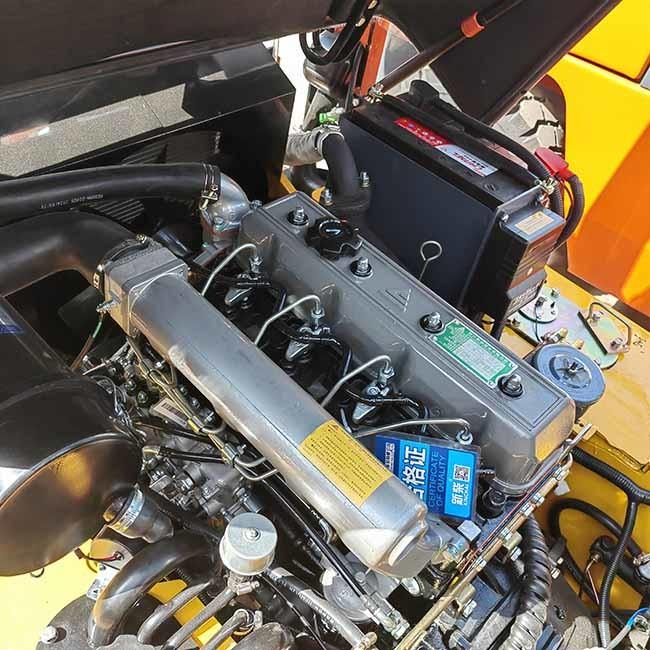

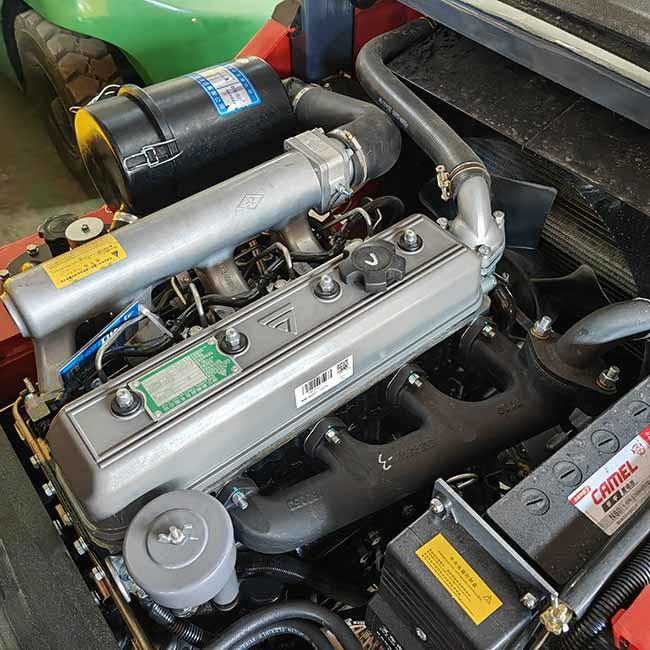

Engine: XINCHAI A498BPG 45KW
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift, closed cabin, heater
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Workspace increased
Space around foot is effectively increased through up steering unit and using suspension type inching.
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg.
Fuel filling improved
Automobile type oil filling cap and optimal oil filling channel structure and process ensure whole truck's safety.
New design of key parts
The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.
| Specification | CPCK50 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 0 |
| 6 | Fork dimension | mm | 1070×150×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2680 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2210 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 22 |
| 13 | Max lift speed | mm/s | 330 |
| 14 | Max.traction power | KN | 18.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4195 |
| 17 | Total length without fork | mm | 2975 |
| 18 | Total width | mm | 1380 |
| 19 | Mast extended height | mm | 4250 |
| 20 | Mast lowered height | mm | 2185 |
| 21 | Tyres Front | 300-15-18PR | |
| 22 | Type Rear | 700-12-10PR | |
| 23 | Wheelbase | mm | 1960 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 5300 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | XINCHAI A498BPG | |
| 28 | Engine power | kw/r.p.m | 48 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
