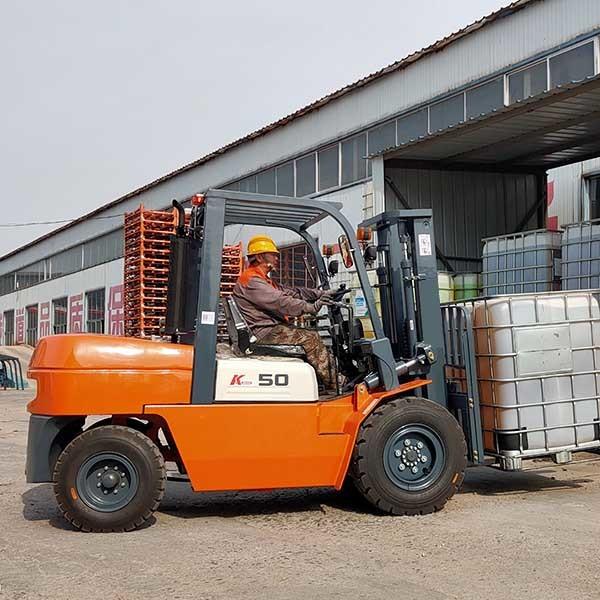

Duplex 3m 5 Ton Gasoline Powered Forklift Side Shifter Counterbalance Lift
Duplex 3m 5 Ton gasoline powered forklift side shifter K series
Main information:
Product name: 5.0Ton gasoline powered forklift
Engine: Chinese Guangqing or Japanese NISSAN gasoline forklift.
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: pneumatic
Fork: 1220mm-2000mm
Attachments: Side shift, double front tires
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
Durable mast
The mast tilt angle F/R reaches to 10°/12°. Wide-view mast provides excellent through-the-mast visibility, improving the work efficiency and allowing safe operation of the forklift.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
| Specification | CPCG50 | ||
| 1 | Fuel model | Gasoline | |
| 2 | Load capacity | kg | 5000 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 0 |
| 6 | Fork dimension | mm | 1070×150×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2680 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2210 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 22 |
| 13 | Max lift speed | mm/s | 330 |
| 14 | Max.traction power | KN | 18.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4195 |
| 17 | Total length without fork | mm | 2975 |
| 18 | Total width | mm | 1380 |
| 19 | Mast extended height | mm | 4250 |
| 20 | Mast lowered height | mm | 2185 |
| 21 | Tyres Front | 300-15-18PR | |
| 22 | Type Rear | 700-12-10PR | |
| 23 | Wheelbase | mm | 1960 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 5300 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | GQ-4Y gasoline engine | |
| 28 | Engine power | kw/r.p.m | 46 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
