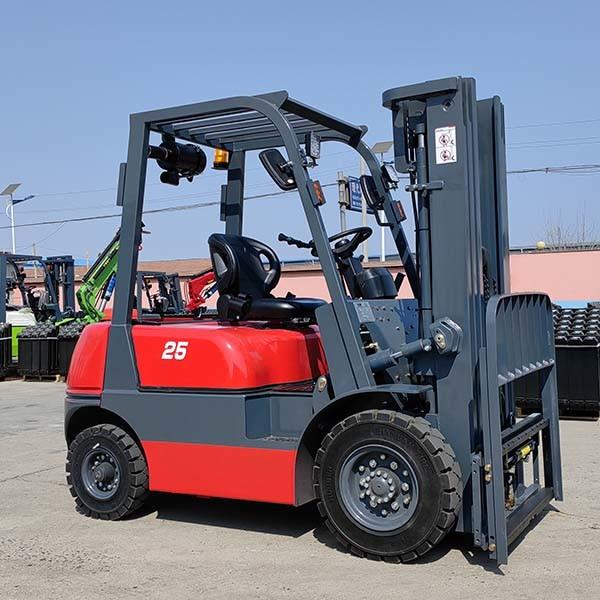

2500kg 5000lbs 2.5 Tonne Forklift Hydraulic 2.5 T Diesel Forklift Side Shifter
2500kg 5000lbs 2.5 Tonne Forklift Diesel Powered Hydraulic Side Shifter
Main information:
Product name: 2.5Ton diesel counter balance forklift
Engine: ISUZU C240 diesel engine
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Clear, Concise & Modern Design
Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.
Adjustable Steering Wheel
Provide convenience and can customize to the operator's desired position.
Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
| Specification | CPCDT25 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 2500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1220×122×40 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2240 |
| 9 | Groud clearance | mm | 120 |
| 10 | Overhead guard height | mm | 2140 |
| 11 | Front overhang | mm | 485 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 550 |
| 14 | Max.traction power | KN | 12.3 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 3610 |
| 17 | Total length without fork | mm | 2540 |
| 18 | Total width | mm | 1160 |
| 19 | Mast extended height | mm | 4220 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 7.00-12-12PR | |
| 22 | Type Rear | 6.00-9-10PR | |
| 23 | Wheelbase | mm | 1600 |
| 24 | Tread | mm | 970/970 |
| 25 | Service weight | Kg | 3800 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | ISUZU C240 diesel forklift | |
| 28 | Engine power | kw/r.p.m | 35.4 |
| 29 | Transmission | Mechanical or Automatic | |
| 30 | Work press | Mpa | 18.5 |
