Chinese Engine LPG Counterbalance Forklift GQ-4Y Counter Balance Fork Truck

Price Negotiable
Price: 7000-9500 usd
MOQ: 1 unit
Delivery Time: 5-8 working days
Brand: YEAWEY
Product Description

3500 kgs 3.5 Ton LPG forklift truck standard mast Chinese engine fork positioner



Main information:
Product name: 3.5 Ton LPG forklift
Engine: Chinese GQ-4Y gasoline engine
Transmission: Automatic
Mast type: 3 stage mast 4.8m lifting height
Tires: Solid
Fork: 1220mm
Attachments: Sideshift


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Great heat dissipation

The hot air reflow isolating device, optimal thermal dissipation duct and aluminum plate-fin type radiator improve cooling ability and ensure engine work reliability.

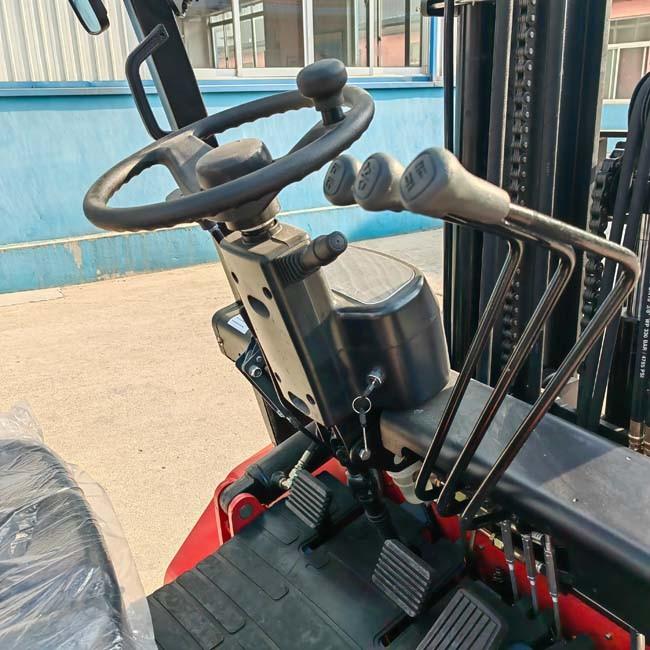

Adjustable Steering Wheel

Provide convenience and can customize to the operator's desired position.



Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.





Specification CPCG35
1 Fuel model   Gasoline
2 Load capacity kg 3500
3 Load center mm 500
4 Lift height mm 4800
5 Full free lift height mm 1500
6 Fork dimension mm 1220×125×50
7 Mast tilting angle Deg. 6/6
8 Min.turning radius mm 2550
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 4065
17 Total length without fork mm 2995
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4878
26 Battery V/Ah 12/80
27 Engine model   GQ-4Y LPG engine
28 Engine power kw/r.p.m 46
29 Transmission   Automatic
30 Work press Mpa 18.5
