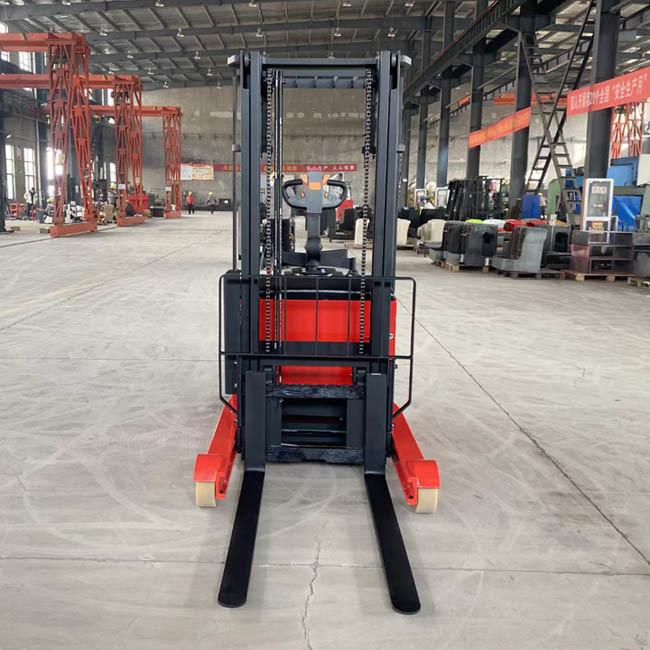

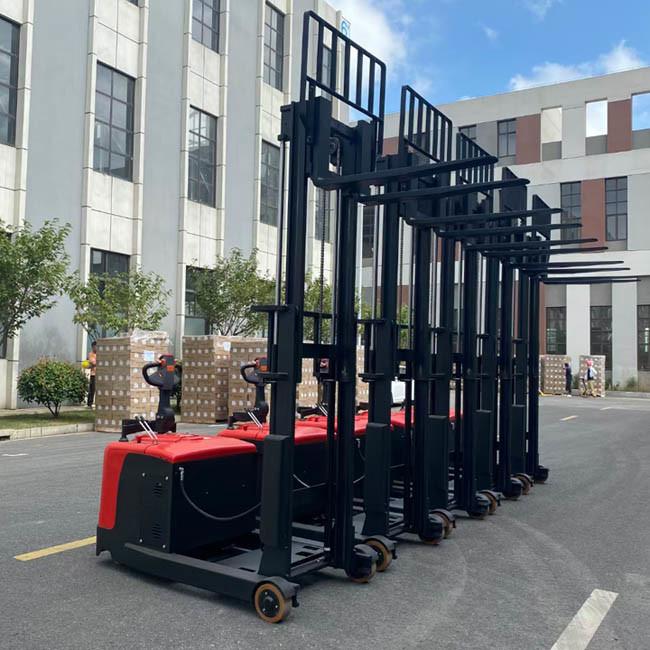

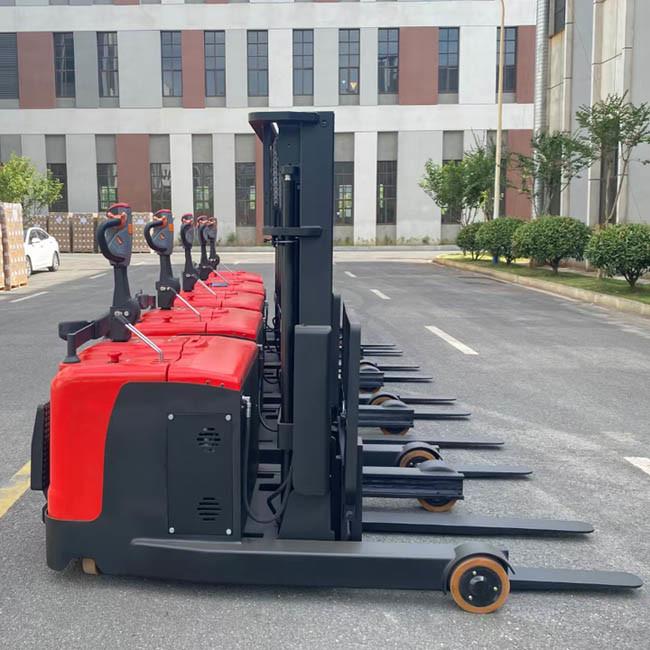

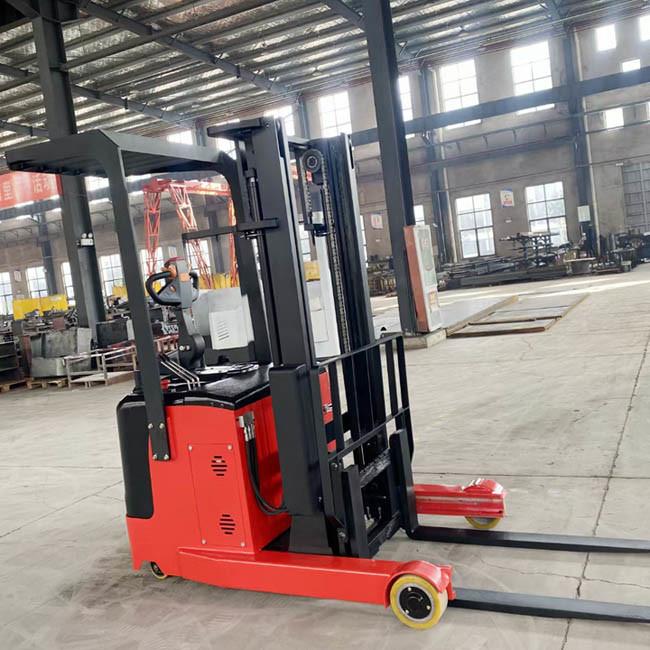

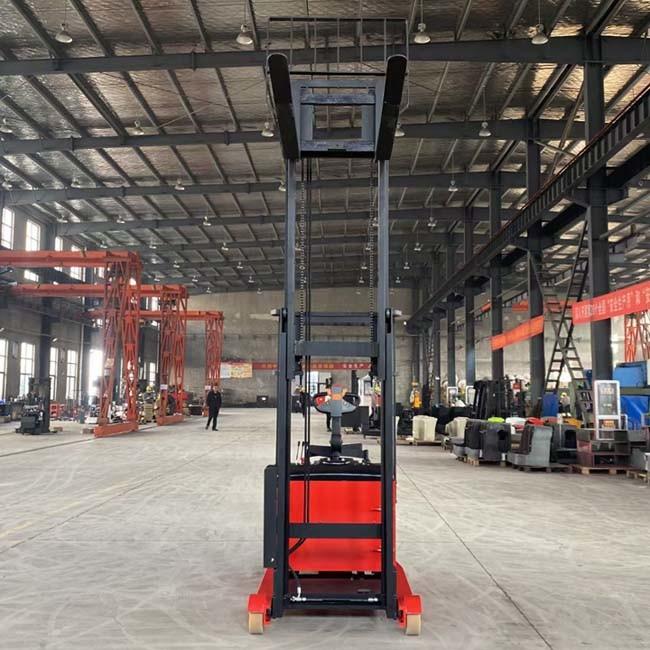

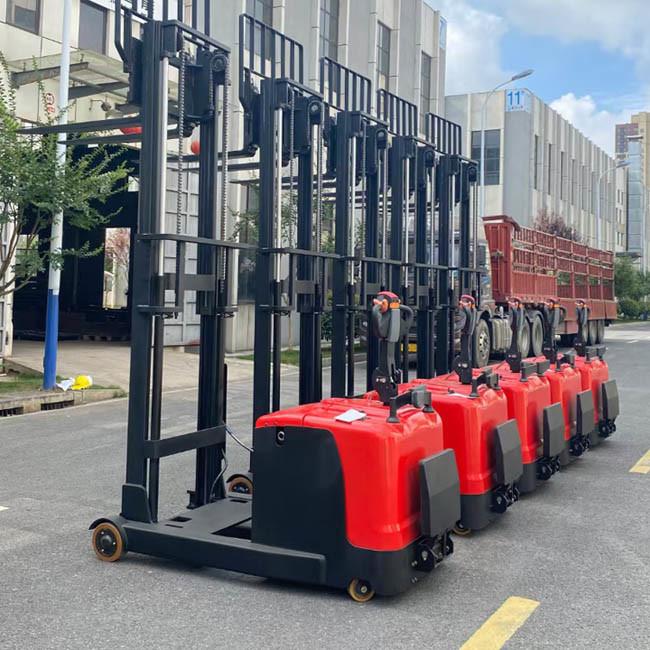

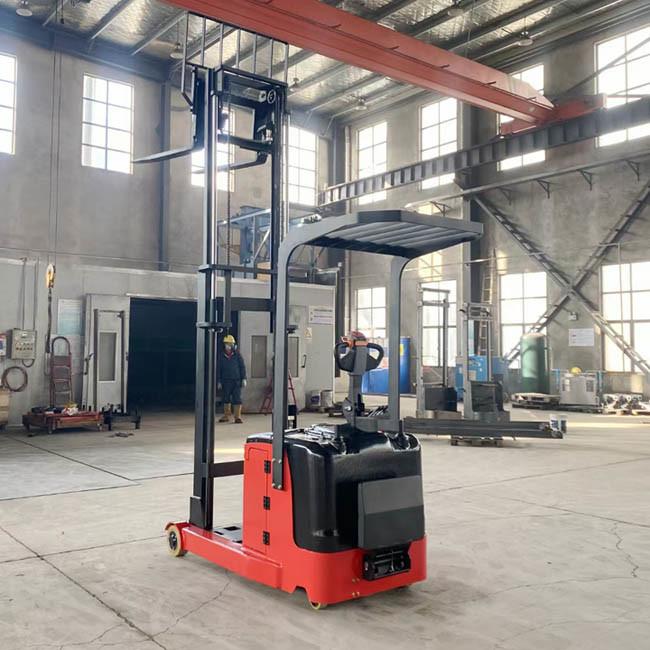

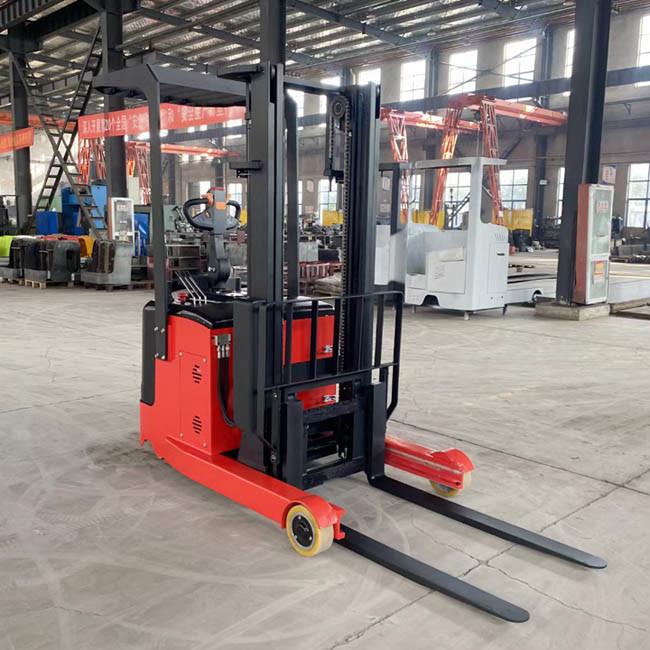

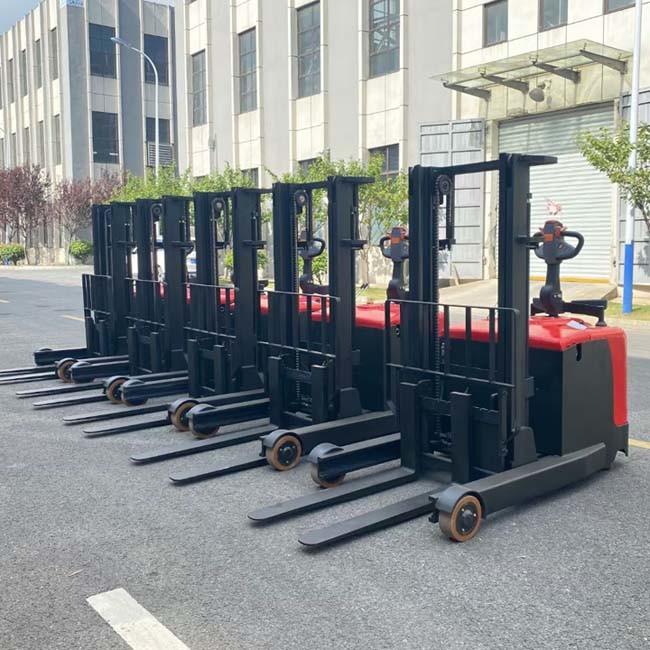

Red CQD15A-30 Walkie Stacker With Reach 1500kg Battery Reach Truck
1500kg CQD15A-301.5Ton MINI electric reach truck warehouse use red color
Main information:
Load capacity: 1500kg
Side standing type
Chinese AC controller, AC motors
24V/210Ah lead acid battery
Mast type: Duplex mast
Lift height: 3m
Attachment:
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Energy efficient.
High-speed lifting and lowering control improves your work efficiency.It adopts AC drive motor, hydraulic pump motor and steering motor, with long life, maintenance-free and reliable performance. All lights use LED, durable and energy-saving.
Turning Speed Limit Control
Prevent the forklift from overturning sideways when turning, and ensure the safety.
Electromagnetic brake and hydraulic brake
combination of electromagnetic braking and hydraulic braking, short braking distance, no deviation, no impact, safe and reliable.
| Item | Model | CQD15A | |
| 1 | Power type | Battery | |
| 2 | Driving mode | Stand-on type | |
| 3 | Rated load | kg | 1500 |
| 4 | Load center distance | mm | 500 |
| 5 | Front overhang distance | mm | 145 |
| 6 | Wheelbase | mm | 1400 |
| 7 | Vehicle weight | kg | 2000 |
| 8 | Tire type | Polyurethane | |
| 9 | Bearing wheel | mm | 210*85 |
| 10 | Drive wheel | mm | 230*75 |
| 11 | Auxiliary wheel | mm | 130*55 |
| 12 | Track width, drive side | mm | 684 |
| 13 | Track width, bearing side | mm | 990 |
| 14 | Height of mast closed | mm | 1830 |
| 16 | Fork tilt forward and backward | ° | 3/5 |
| 17 | Lifting height | mm | 3000 |
| 18 | Max. height of mast open | mm | 3485 |
| 19 | Panel height | mm | 195 |
| 20 | Leg height | mm | 235 |
| 21 | Overall length (pedal deployment) | mm | 2345/2850 |
| 22 | Overall width | mm | 900/1084 |
| 23 | Fork size | mm | 1070/100/35 |
| 24 | Shelf width | mm | 1000 |
| 25 | Outside width of fork | mm | 240-700 |
| 26 | Inner spacing of the legs | mm | 802 |
| 27 | Forward position | mm | 450 |
| 28 | Mast clearance | mm | 70 |
| 29 | Turning radius | mm | 1670/2100 |
| 30 | Driving speed(full load/ no load) | km/h | 4.0/5.5 |
| 31 | Lifting speed(full load/ no load) | mm/s | 80/150 |
| 32 | Descent speed(full load/ no load) | mm/s | 200/105 |
| 33 | Max. climbing capacity(full load/ no load) | % | 5/10 |
| 34 | Braking mode | Electromagnetic type | |
| 35 | Drive motor power | kw | 1.5 |
| 36 | Lifting motor power | kw | 3 |
| 37 | Battery, voltage/ rated capacity | v/ah | 24/210 |
| 38 | Battery weight | kg | 200 |
| 39 | Steering system | Electronic steering | |
| 40 | Braking system | Electromagnetic braking |
