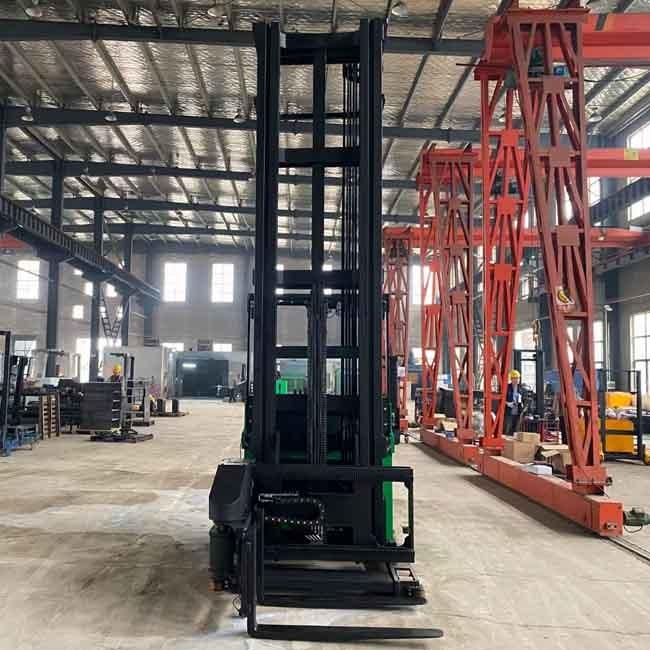

Very Narrow Aisle VNA Forklift Truck 1500kg CSD15S 1.5T 3 Way
1500kg CSD15S 1.5T 3 way Very Narrow Aisle(VNA) Forklift seated type Triplex mast 3m to 9m
Main information:
Curtis controller
AC lift and drive motor
Lift height 3m to 4.5m
Lead acid or lithium battery
Seated type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Advantage:
- Wide angle view, high-strength shock absorption gantry
- American CURTIS brand drive control system
- Minimum 1480mm stacking channel, special for narrow roadway
- Electronic steering, portable, mute
- multi function instrument, drive wheel position display
- Electromagnetic and regenerative braking system
- fork rotation angle 180 °, left and right side shift
- Line fault detection error code diagnosis
- 48V high capacity lead-acid battery
- automatic alignment and guidance during walking
Powerful high quality AC drive system, EPS-Electric Power Steering system, Electronic multiple-way valve

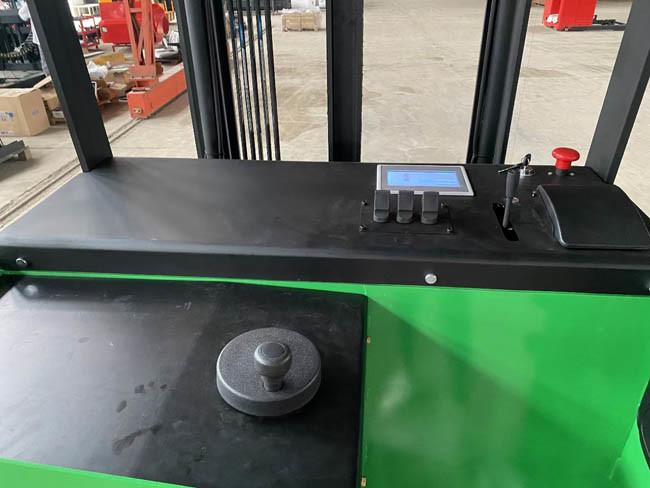

Multi-function Display: parking brake, the drivingdirection and speed, the hour meter and the fault code
Big capacity battery1700mm aisle width, high suspension seat
German ZF gearbox, adjustable steering wheel
Side extraction battery
Optional magnetic navigation
| Item | Model | CSD15S | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Steated | |
| 3 | Load capacity | Q(kg) | 1500 |
| 4 | Load center | C(mm) | 600 |
| 5 | Self weight with battery | kg | <6500 |
| 6 | Tire type | Pu solid tire | |
| 7 | Real tire size | ∅×w(mm) | Ф400*160 |
| 8 | Front tire size | ∅×w(mm) | Ф145*100 |
| 9 | Track width, front wheels | b10(mm) | 1315 |
| 10 | Height-Mast lowered | h1(mm) | 3165 |
| 11 | Free Lift Height | h2(mm) | 1980 |
| 12 | Lift Height | h3(mm) | 6000 |
| 13 | The maximum height of the gantry during homework | h4(mm) | 7185 |
| 14 | The height of overhead guards | h14(mm) | 2180 |
| 15 | Length (fork rotates on both sides) | l2(mm) | 2960 |
| 16 | Width of the body | b1(mm) | 1567 |
| 17 | Width of anti-collision guard rail | (mm) | 1617 |
| 18 | Fork Dimensions | s/e/l(mm) | 45/125/1220 |
| 19 | Fork Spread | b5(mm) | 260-650 |
| 20 | Min. Turning radius | m2(mm) | 32 |
| 21 | Channel guide width | Ast(mm) | 1760(1000*1200 pallet) |
| 22 | Channel guide height | (mm) | 120 |
| 23 | Min. Turning radius | Wa(mm) | 1989 |
| 24 | Main channel width | mm | 3560 |
| 25 | Max travel speed unladen/Load | km/h | 8/7 |
| 26 | Max. lifting speed unladen/Load | m/s | 0.275/0.215 |
| 27 | Max. lowing speed unladen/Load | m/s | 0.195/0.280 |
| 28 | Drive brake | electromagnetic | |
| 29 | Drive motor | kw | 8 AC |
| 30 | Lift motor | kw | 8.6 AC |
| 31 | Battery type | Lead acid | |
| 32 | Battery capacity | V/Ah | 48V/400Ah |
| 33 | Drive Controll Type |
alternating current |
