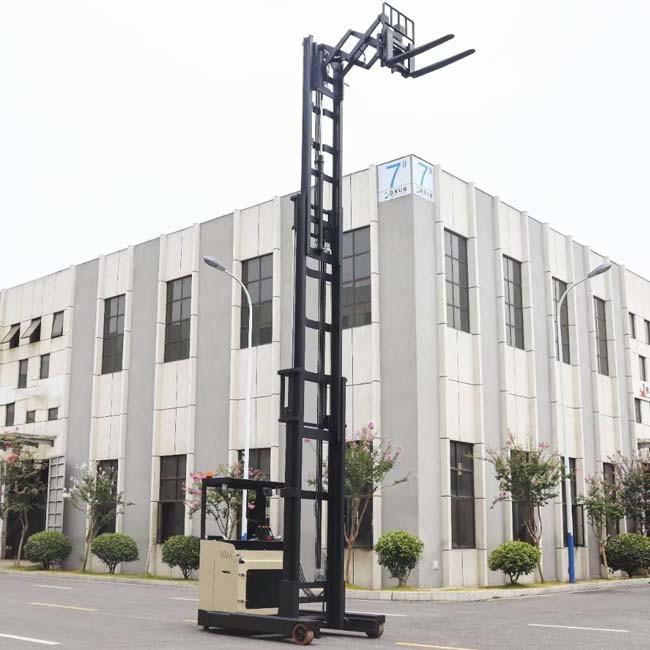

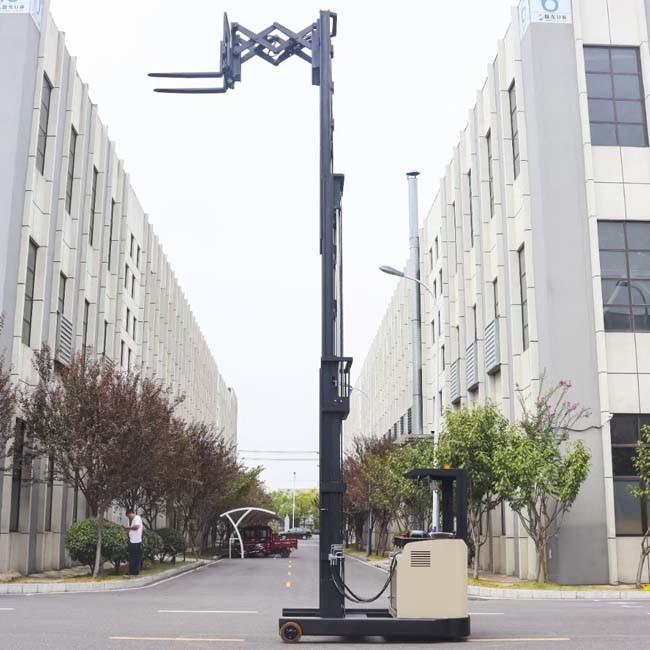

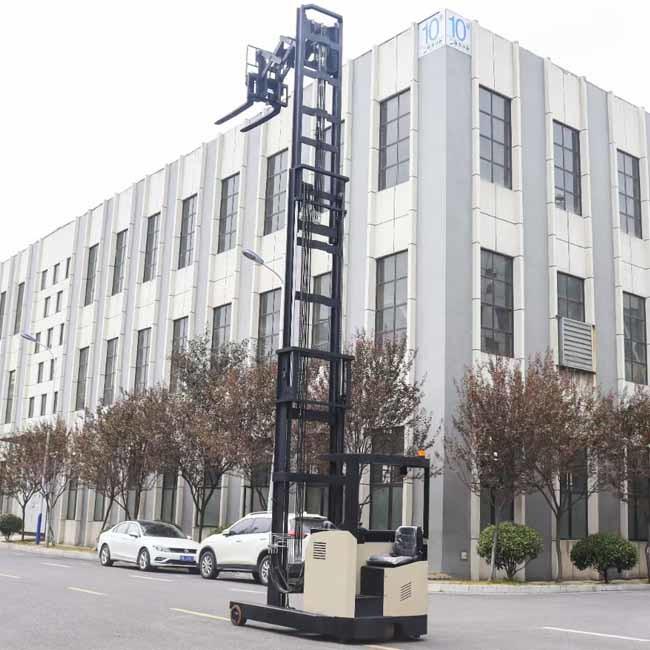

Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
1600kg CQD16JS 1.6T Electric Scissors Reach Forklift seating type Triplex mast
Main information:
Curtis controller
AC lift and drive motor
Lift height 4.5m to 9m
Lead acid or lithium battery
Seating type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Stable operation
Elector-hydraulic proportional control system, good fretting performance, more stable work and more precise control.
Spacious foot space
Spacious foot space allows any operator to find a comfortable position and ensures adequate comfort during operation throughout the shift.

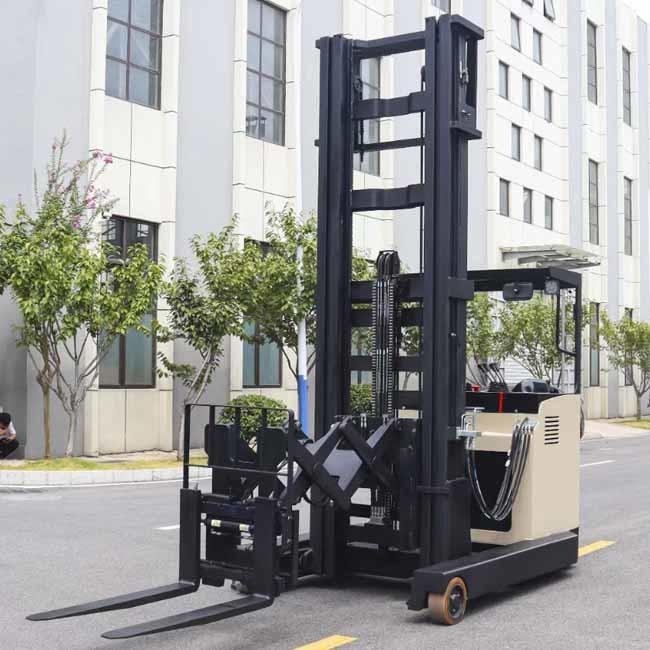

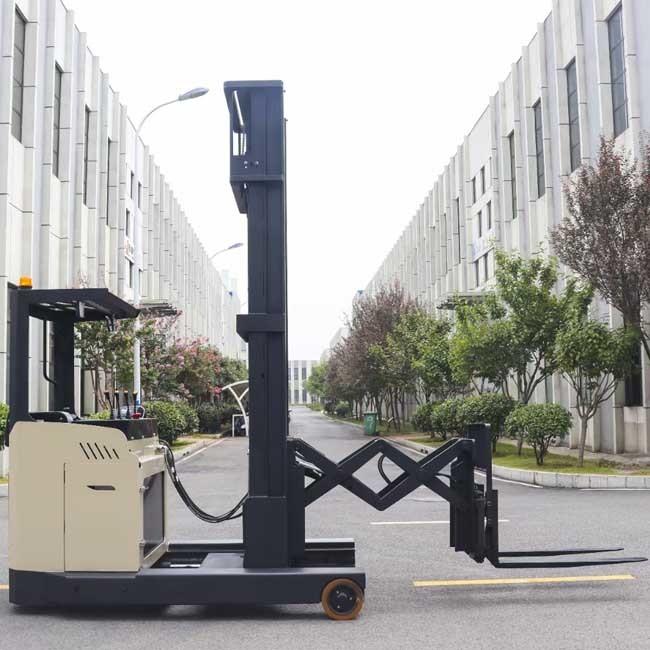

Stable mast
High-precision forward sliding rails and excellent clearance compensation design make the mast more stable during reach application.
Stable mast
The high-precision forward sliding rail and excellent clearance compensation design make the forward movement of the masts more stable.
| Item | Model | CQD16JS | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Standing Type | |
| 3 | Load capacity | Q(Kg) | 1600 |
| 4 | Load center | C(mm) | 500 |
| 5 | Wheel base | Y(mm) | 1562 |
| 6 | Self weight with battery | kg | 3540 |
| 7 | Tire type | Pu solid tire | |
| 8 | Rear tire sise | ∅×w(mm) | Ф382*142 |
| 9 | Front tire size | ∅×w(mm) | Ф145*100 |
| 10 | Balance wheel size | ∅×w(mm) | Ф180*76 |
| 11 | Number of the wheels(Front wheel/X=Driving Wheel,balance wheel/bearing wheel) | 4/2X/2 | |
| 12 | Track width, front wheels | b10(mm) | 1562 |
| 13 | Height-Mast lowered | h1(mm) | 3050 |
| 14 | Lift Height | h3(mm) | 4500 |
| 15 | The maximum height of the gantry during homework | h4(mm) | 5585 |
| 16 | The geight of overhead guards | h14(mm) | 2280 |
| 17 | Overall length (with forks/without forks)(forks lowered) | l2(mm) | 2410/1977 |
| 18 | Width of the body | b1(mm) | 1390 |
| 19 | Fork Dimensions | s/e/l(mm) | 35*100*1070 |
| 20 | Fork Spread | b5(mm) | 210-680 |
| 21 | Min ground clearance | m2(mm) | 65 |
| 22 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 2835 |
| 23 | Min. Turning radius | Wa(mm) | 1854 |
| 24 | Fork telescopic travel | L(mm) | 1200 |
| 25 | Max travel speed unladen/Load | km/h | 7/6.5 |
| 26 | Max. lifting speed unladen/Load | m/s | 0.330/0.245 |
| 27 | Max. lowing speed unladen/Load | m/s | 0.260/0.325 |
| 28 | Drive brake | electromagnetic | |
| 29 | Drive motor | kw | 4.5 |
| 30 | Lift motor | kw | 6.3 |
| 31 | Battery type | Lead acid | |
| 32 | Battery capacity | V/Ah | 48V/300 |
| 33 | Charger-intelligent | V/Ah | 48V/40A |
| 34 | Drive Controll Type | Holzer type accelerator |
