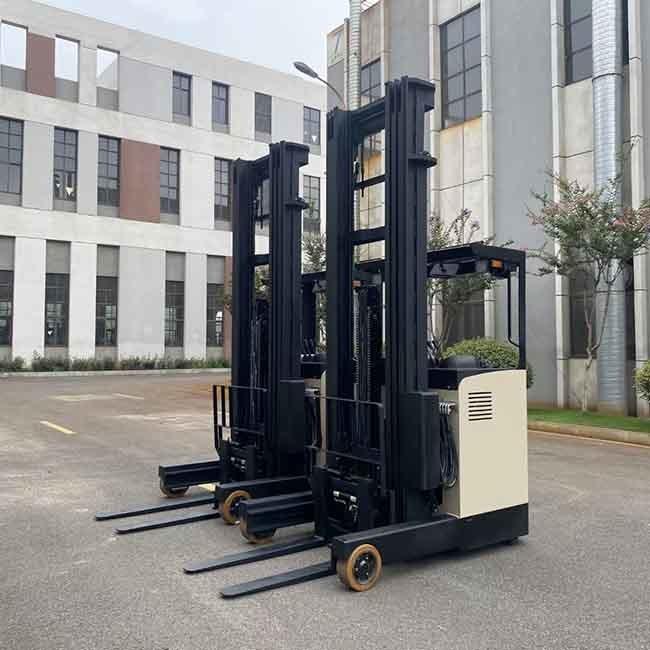

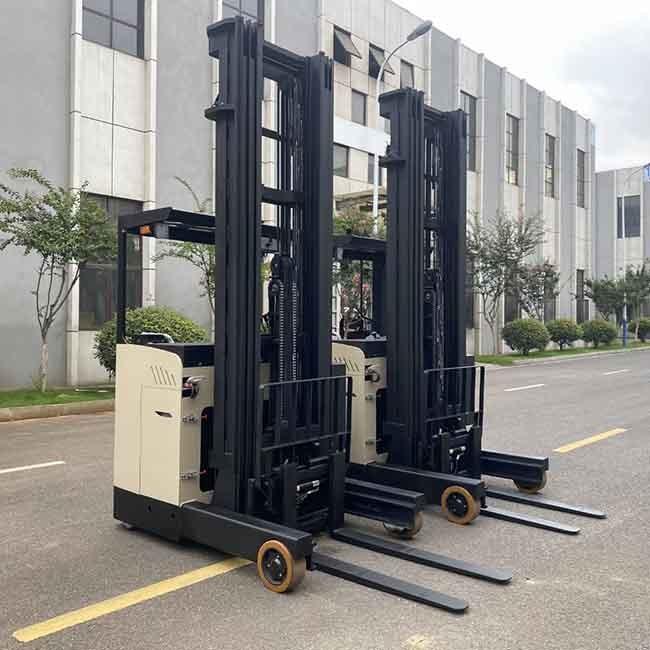

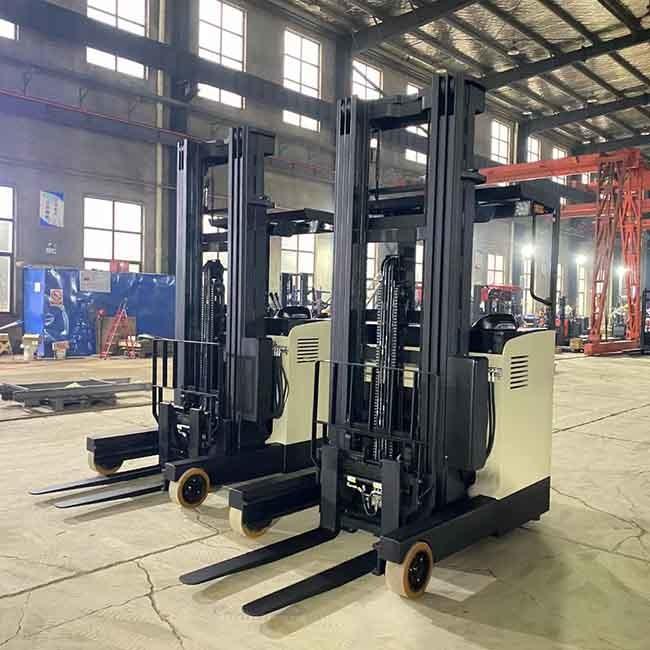

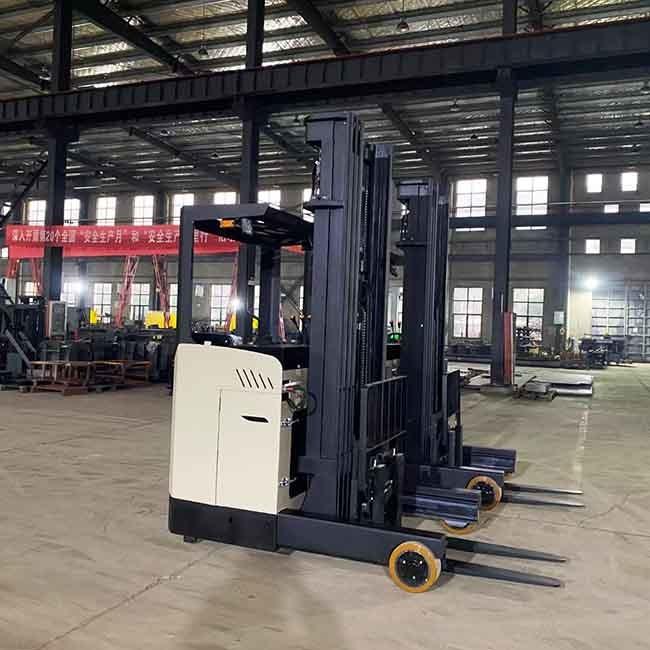

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast
3000kg CQDE30 48V 3T Electric Reach forklift truck seat type triplex 3-6m mast
Main information:
Curtis AC controller
AC lift and drive motor
Lift height 3m to 6m
Lead acid battery 48V/400AH
Seat type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Strong chassis
The chassis structure is strong, the distribution of the center of mass is reasonable, and the stability of the whole vehicle is excellent.
Energy efficient.
High-speed lifting and lowering control improves your work efficiency.It adopts AC drive motor, hydraulic pump motor and steering motor, with long life, maintenance-free and reliable performance. All lights use LED, durable and energy-saving.
Height limit function:
When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting.
| Item | Model | CQDE30-45S | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Seated | |
| 3 | Load capacity | Q(kg) | 3000 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 183 |
| 6 | Wheel base | Y(mm) | 1650 |
| 7 | Reach distance | L(mm) | 610 |
| 8 | Self weight with battery | kg | 4300 |
| 9 | Tire type | Pu solid tire | |
| 10 | Front tire size | ∅×w(mm) | 280*135 |
| 11 | Rear tire size | ∅×w(mm) | 382*142 |
| 12 | Track width, front wheels | b10(mm) | 1329 |
| 13 | Height-Mast Lowered | h1(mm) | 2485 |
| 14 | Free Lift Height | h2(mm) | 1500 |
| 15 | Lift Height | h3(mm) | 4500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 5515 |
| 17 | The height of overhead guards | h14(mm) | 2180 |
| 18 | The height when fork lowered | h13(mm) | 45 |
| 19 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 20 | Overall length(with forks) | l2(mm) | 2565 |
| 21 | Width of the body | b1(mm) | 1270/1460 |
| 22 | Fork Dimensions | s/e/l(mm) | 45/125/1070 |
| 23 | Fork Spread | b5(mm) | 270-840 |
| 24 | Min ground clearance | m2(mm) | 70 |
| 25 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 3110 |
| 26 | Min. Turning radius | Wa(mm) | 1922 |
| 27 | Max travel speed unladen/Load | km/h | 7.8/6.8 |
| 28 | Max. lifting speed unladen/Load | m/s | 0.240/0.170 |
| 29 | Max. lowing speed unladen/Load | m/s | 0.300/0.380 |
| 30 | Grade Ability unladen/Load | ％ | ≤10 |
| 31 | Drive brake | electromagnetic | |
| 32 | Drive motor | kw | 8 |
| 33 | Lift motor | kw | 12 |
| 34 | Battery type | Lead acid | |
| 35 | Battery capacity | V/Ah | 48V400Ah |
| 36 | Charger | V/A | 48V/50A |
| 37 | DriveControllingType | alternating current | |
| 38 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
