NO! The casting on Clamping increases the grasping force, meanwhile does not scratch the material.

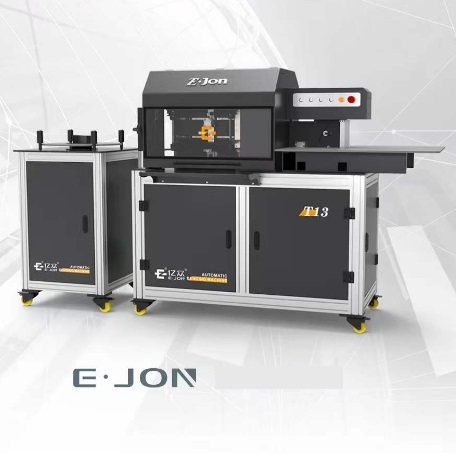

T13 Street Signage Machine No Deformation and for Aluminum SS Channel Letter Bending
Price:
$13,000.00/sets 1-2 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
EJON
Product Description
Product Description
EJON T13L shop sign makers stainless steel aluminum 3d letters sign bending machine channel letter bending machine for luminous advertising letters
dobladora de letras 3d, бортогибочный станок для букв, ماكينة الانحناء للحروف, maquina para hacer los letreros de led neon
Ejon T13 is a multifunctional letter sign bending machine which is widely used in advertising industry and very popular in western country and Mid-East for its excellent in bending of various metal sheet, such as flat aluminum, stainless steel, galvanized plate, aluminum profile, etc.
It is equipped with fully servo control system. The specially designed extra long alternate feeding mechanism and the double ball screws drive make it more powerful, faster with higher precision. The mechanical hand feeding design, continuously feeding by two clamps, can avoid feeding slipping and improve feeding precision.
It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding system | |||||
Slotting System | Plane cutter/milling cutter | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate and profile | |||||
Material Height | 20~130mm | |||||
Material Thickness | 0.4~1.2mm | |||||
Accuracy | ±0.1mm | |||||
Min. Bending Angle | R6 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V、50Hz、2.0Kw | |||||
Air Supply | 0.6 m3/min | |||||
Control System | 4 axis control system (4 axis servo control) | |||||
Letter Sample Show
Seiko letter
Resin letter
Narrow edge letter
Rimless letter
Luminous letter
Narrow edge letter
Detailed Images
* Scratch the metal surface?
* Is the feeding unstable?
NO! The double ball screw of feeding design ensure the feeding speed and precision as well as stability.
* Usually need to change the cutter?
NO! High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, meanwhile the slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.
* How about the precision?
The encoder module is the key component of the the relation equipment precision, and the precision casting is used to ensure the performance of the high precision encoder. 750 W high-power servo motor also improves the positioning accuracy and the stability of high-speed bending.
Supporting Facility
Computer
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software. Computer configuration: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
Pump
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4 kW, the gas flow is 0.6 m³/min.
File Format
The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Anything you want to know, we are always at your service, CLICK HERE TO CHAT!
Customer Photos
Kenya
Dubai
Vietnam
Thailand
Ukraine
USA
Customers' Feedback
Packing & Delivery
Packaging | ||
Size | 1330(L) * 740 (W) * 1500(D) | |
Weight | 350 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 1330(L) * 740 (W) * 1500(D) | |
Weight | 350KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
