350KG Weight Auto CNC Channel Letter Making Tools for EJON Y6 3D Signs and Aluminum Plate
Overview
Details
Place of Origin :Tianjin,china Brand Name:EJON
Conditon :New Model Type: Y6 Suitable Material : Stainless steel,Galvanized plate,Aluminum plate Automaic :Automatic
After-Sales Service:Video/Oline support,Engineers Service Power :CNC
Slotting Method :Plane cutter slotting Trip:10-120mm
Bending Method:Double Blade Alternating Bending System Warranty of core:1 Year
Certification: CE Machine weight:350kg
Supply Ability
Supply Ability:8800 Sets/Year
Packing &Delivery
Packaging Details:The Export Non-Fumigation Wooden Box
Port :Tianjin Port Or other China Port
Delivery Time : 10-20 Working Days
Product Description
EJ0N Y6 machine are BASIC automatic bending machine,it is widely used in Seiko letter,Resin letter,Brimless letter,Narrow edge letter and other letters.Suitable material include Stainless steel,Galvanized plate,Aluminum plate .
Y6 adopt rolling continuous feeding system.The air pressure can be adjusted according
to the materials thickness to avoid indentation and sliding of material .The detection system
of encoder and software combination detects the feeding accuracy in real time and guarantees
the accuracy of ±0.1mm.
High strength alloy cutters adopt 750w high-power servo motor, are used for slotting knives,each knife has 8 angles,no need to sharpen,greatly improve the working efficient.
Double blade alternating bending structure,adopt 750 w high-power servo motor, the curved knife structure cast by ductile iron,good shock absorption,high structural strength,reduced number of parts splicing,high-power servo motor,high-speed bending work under the bending mechanism,the bending mechanism is permanently deformed,which effectively improves the positioning accuracy and the stability of the high-speed bending.
| SPECIFICATION | |
| SYSTEM | 4 Axis control system(2 axis servo control) |
| Feeding System | Rolling continuous feeding system |
| Slotting System | Plane cutter slotting system |
| Bending System | Double blade alternating bending system |
| Suitable Material | Stainless steel,Galvanized plate,Aluminum plate |
| Slotting Height | 10-120mm |
| Material Thickness | 0.4-1.2mm |
| Control System | 4 Axis control system (2 axis servo control) |
| Min Bending Angle | R4 |
| File Format | Dxf.Plt.Ai |
| Power | AC220V,50HZ,2.0KW |
| Air Supply | 0.6m3/min |
| Package Size | 1200(length)*720(width)*1480(height)mm |
| Working Space | 2300(length)*1080(width)*1480(height)mm |
| Machine Weight | 350Kg |
Y6 Machine part details

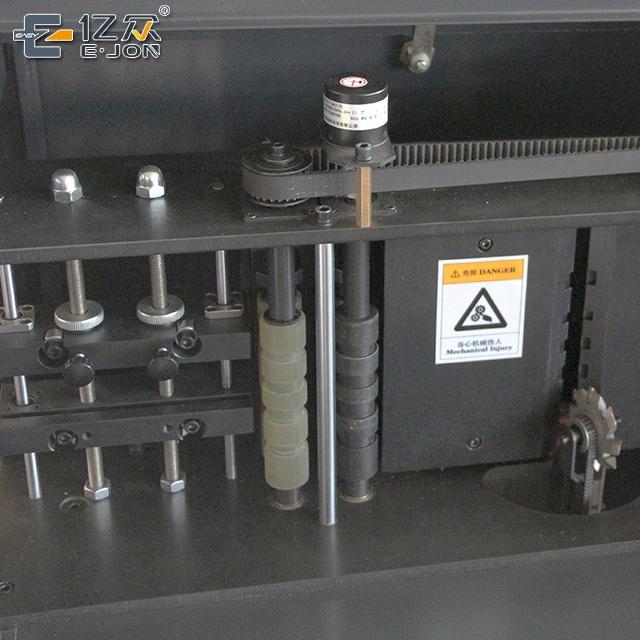

Feeding Parts :The feeding support adopts an integral casting
strcture,which effectively avoids the deformation generated
during the feeding and ensures the stability of feeding.

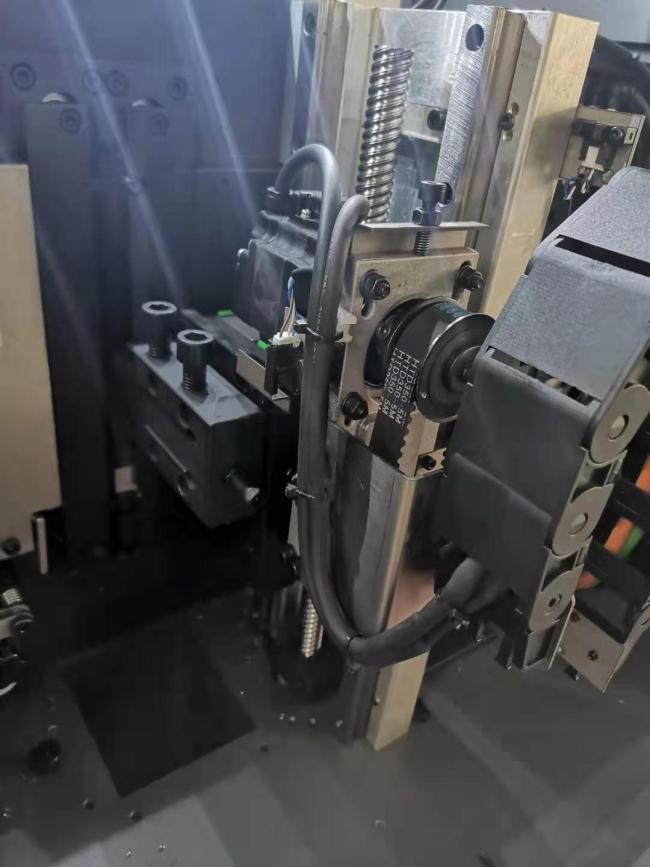

Slotting Parts: Adopt 750W high-power servo motor,High strength alloy cutters are used for slotting
knives,each knife has 8 angles,no need to sharpen,greatly improve the working efficient.
Bending Parts: Double blade alternating bending system,the bending adopts 750W servo motor,fast response,stable operation,and effectively improve the system’s rapidity and
stability.
Sample Showing
How to learn machine operate
1. Operation Manual U disk
Provide U disk with machine which have detail specific english operational manual and videos.
2. Network Service
Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online service.
3. Factory Visiting
Welcome customer to visit our factory to learn how to operate the machine.
Supporting Facility
Computer Pump File Format
To use the device,you need to The use of equipment should The software of bending
install the control card in your be equipped with machine is self-developed. computer and then connect to AIR compressor,we suggest Import the format supports
the bending machine and install that the selection of more Dxf.Plt.Ai.We recommend
the software computer. than 4kw,the gas flow is using Coredraw or adobe
Configuration:XP system or 0.6m3/Min illustrator to complete
window7 32-bit system,and the file after the export file
requiresa pcl card slot to to Dxf.Plt.Ai format.Then
install the control card. open the operating software,
select the document
