The customized feeding design, continuously feeding to avoid feeding slipping and improve feeding precision.
CE Certificate E9 Edged Channelume Trim Cap Lightbox Letter Board Metal LED Sign Aluminum Channel Letter Bending Machine
Price:
$5,500.00/sets 1-2 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
EJON
Product Description
Product Description

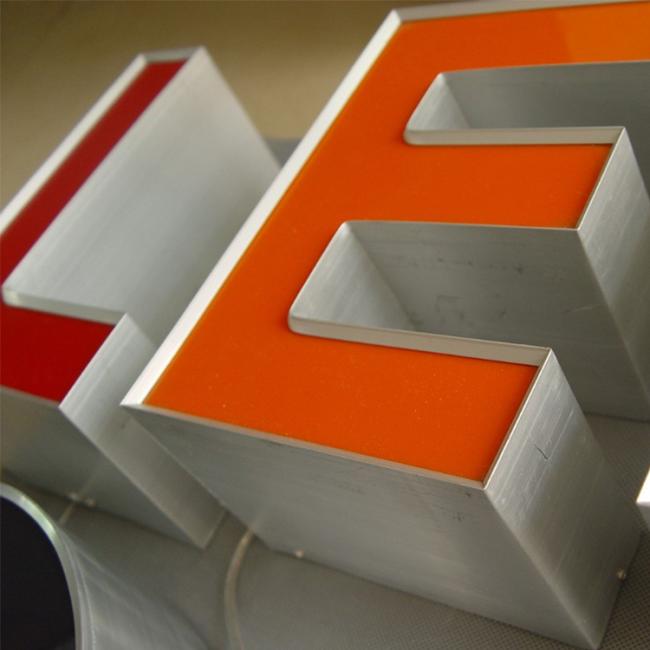

Product Application
CE certificate EJON E9 trim cap Custom Led Information Board metal Led sign bending machine aluminum channel letter bending machine

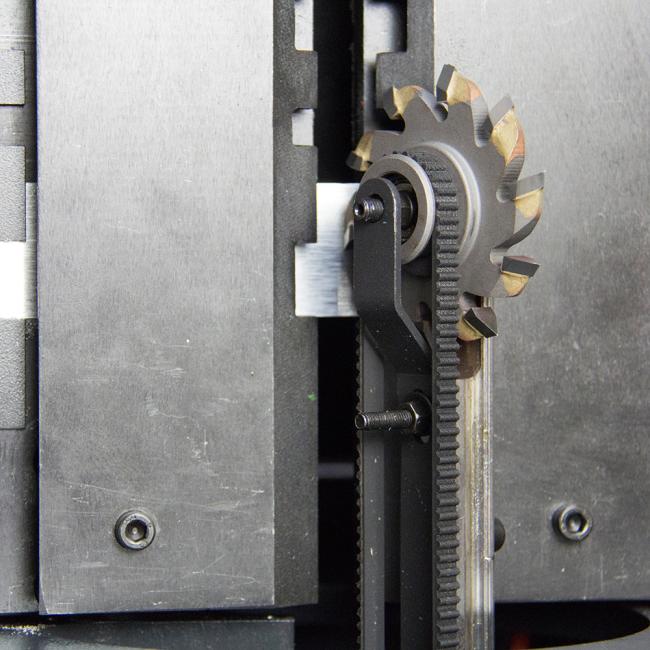

: Exclusive design for aluminum profile and aluminum plate bending with front and back double side slotting methods. The slotting can be at any angle. Independent research and development of the software system furnish with the material database. Easy to deal with small angle arc and large angle arc to achieve the perfect match with the latter.
SPECIFICATIONS | ||||||
Feeding system | Customized feeding roller | |||||
Slotting System | Rotatable alloy milling cutter | |||||
Bending System | Double blade alternate bending system | |||||

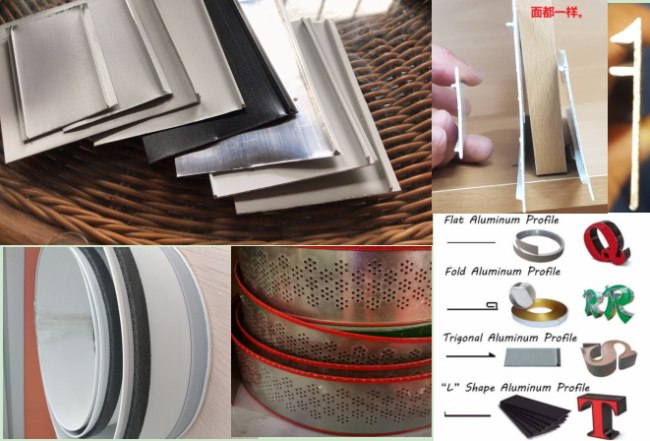

Suitable Material | All kind of Aluminum plate and Aluminium profile | |||||
Material Height | 20~130mm | |||||
Material Thickness | 0.4-1.2mm | |||||
Control System | 4 axis control system | |||||
Min. Bending Angle | R10 | |||||
File Format | Dxf.Plt.Ai | |||||
Power | AC220V,50Hz,3.0Kw | |||||
Air Supply | 0.6m3/Min | |||||
Total Weight | 200Kg | |||||
Main Features
1) The customized feeding roller ensures the feeding precision, meanwhile, does not scratch the meterial..
2) The well designed bending mechanism inproves themokding degree.
3) The independent lifting pallet can fit all sizes of aluminium.
Detailed Images

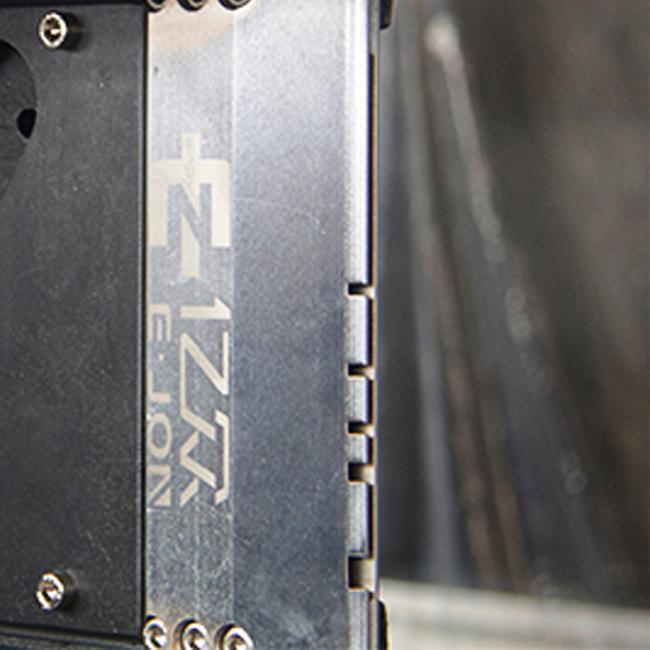

Machine Parts
Main Features
The control motors are all used the famous brand.
Machine Parts
The lifting pallet can fit all sizes of aluminum.
Main Features
The bending can be beating oand extruding which can perfect bend big and small angle arc.
Supporting Facility
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1410(L) * 750 (W) * 1560(D) | |
Weight | 460KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 660(L) * 660(W) * 1110 (D) | |
Weight | 45KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
