SCARA Robot For 3C Food And Beverage Metal Parts Education Plastics 20kg Payload 800mm Reach Model ESR20-4-800
SCARA Robot For 3C Food And Beverage Metal Parts Education Plastics 20kg Payload 800mm Reach Model ESR20-4-800

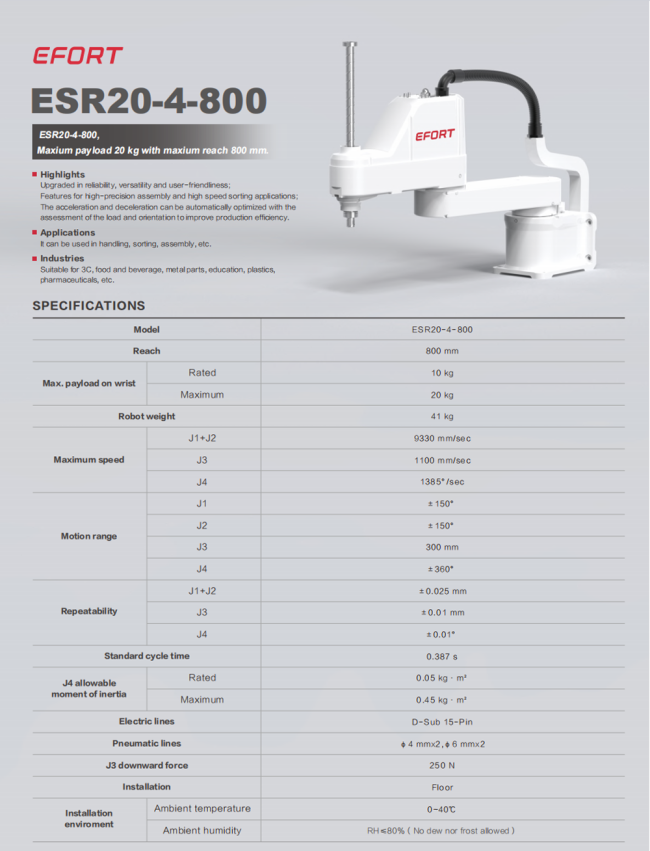

Specifications
| Model | ESR20-4-800 | |
| Reach | 800 mm | |
| Max. payload on wrist | Rated | 10 kg |
| Maximum | 20 kg | |
| Robot weight | 41 kg | |
| Maximum speed | J1+J2 | 9330 mm/sec |
| J3 | 1100 mm/sec | |
| J4 | 1385 °/sec | |
| Motion range | J1 | ±150° |
| J2 | ±150° | |
| J3 | 300 mm | |
| J4 | ±360° | |
| Repeatability | J1+J2 | ±0.025 mm |
| J3 | ±0.01 mm | |
| J4 | ±0.01° | |
| Standard cycle time | 0.387 s | |
| J4 allowable moment of inertia |
Rated | 0.05 kg · m2 |
| Maximum | 0.45 kg · m2 | |
| Electric lines | D-Sub 15-Pin | |
| Pneumatic lines | φ4 mmx2,φ6 mmx2 | |
| J3 downward force | 250 N | |
| Installation | Floor | |
| Installation enviroment |
Ambient temperature | 0~40℃ |
| Ambient humidity | RH≤80%( No dew nor frost allowed ) | |
Packing mode
CASE REFERENCE
FAQ About Robot
1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?
Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.
2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?
Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.
3.Question:【Warranty】how about your warranty
Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.
4.Question:【Payment】how about the payment if we place orders to you .
Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.
5.Question:[Customization] Do you provide any possible customized service .
Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.
6.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.
Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.
7.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?
Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.
8.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.
Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.
